SFX+P+FOntluchtingsdoppen

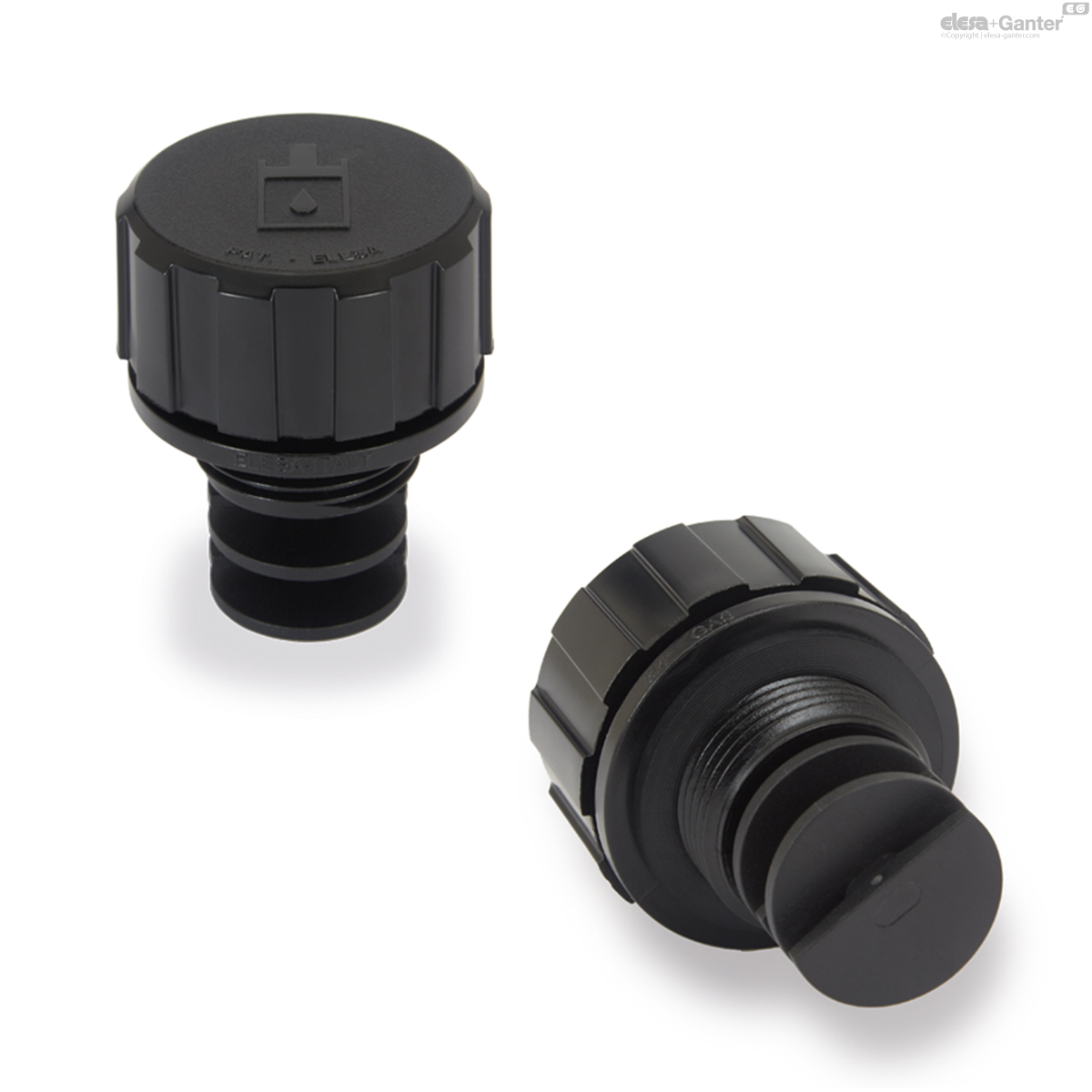

Met schijf tegen spatten en luchtfilter

met spatscherm en externe schijf tegen spatten, technopolymeer

Technical datasheet

SFX+P+F

Met schijf tegen spatten en luchtfilter

SFX+P

Met schijf tegen spatten, zonder luchtfilter

SFX+P+F

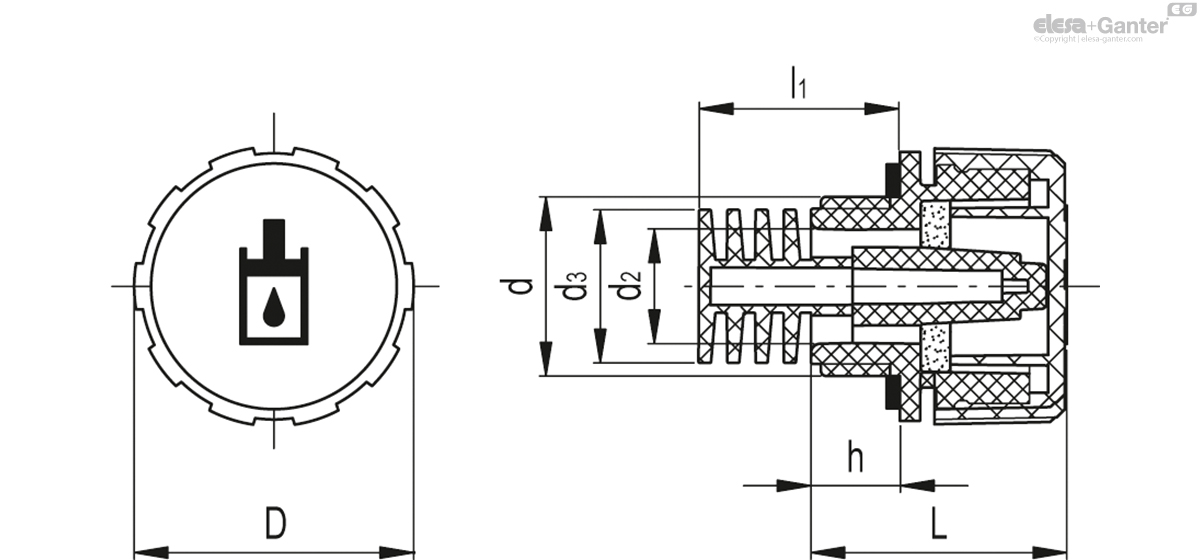

Code	Omschrijving	d	D	L	d₂	d₃	l₁	h
53456	SFX.30-1/2+P+F	G1/2	31	29.5	12	18	26	9.5	17
53536	SFX.40-1/2+P+F#	G1/2	42	36.5	12	18	28.5	11.5	35
53576	SFX.40-3/4+P+F#	G3/4	42	36.5	17	23	28.5	11.5	35
53616	SFX.40-1+P+F	G1	42	36.5	23	30	28.5	11.5	35
53656	SFX.57-3/4+P+F	G3/4	57	42	18	23	31	14	49
53696	SFX.57-1+P+F	G1	57	42	23	30	31	14	49
53736	SFX.57-1¼+P+F	G1 1/4	57	44	32	30	33	16	49
53776	SFX.57-1½+P+F	G1 1/2	57	44	38	30	33	16	49
53252	SFX.30-M20x1.5+P+F	M20x1.5	31	29.5	12	23	26	9.5	26
53272	SFX.30-M22x1.5+P+F	M22x1.5	31	29.5	12	23	26	9.5	26
53292	SFX.40-M24x1.5+P+F	M24x1.5	42	36.5	18	30	28.5	11.5	35
53312	SFX.40-M26x1.5+P+F	M26x1.5	42	36.5	18	30	28.5	11.5	35
53332	SFX.57-M30x1.5+P+F	M30x1.5	57	42	23	30	31	14	49

# Types available on request with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20).

Material

Polyamide based (PA) technopolymer.

Cap: semi-matte finish, black colour, with “fill” symbol.

Threaded connector and external anti-splash semi-discs, black colour.

Packing rings

NBR synthetic rubber.

Standard executions

SFX.: with splash guard, without air filter.

SFX+F: with splash guard, 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

SFX+P: with splash guard and external anti-splash semi-discs, without air filter.

SFX+P+F: with splash guard and external anti-splash semi-discs and “tech-foam” air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

Maximum continuous working temperature

100°C.

Features and applications

The SFX. breather caps are made with a special internal geometry (Elesa patent) that prevents the leakage of fluids through a linear labyrinth (splash guard effect) and promotes condensation of the outgoing vapours.

The external snap-on anti-splash discs (execution+P) located at the mouth of the threaded fitting hole, are made up of fins offset from each other so as to constitute an additional labyrinth in the most critical cases of strong fluid projections.

Technical data

Air flow rate for each model can be determined from the graph here below by calculating the difference between the pressure inside and outside the reservoir.
