Technical datasheet

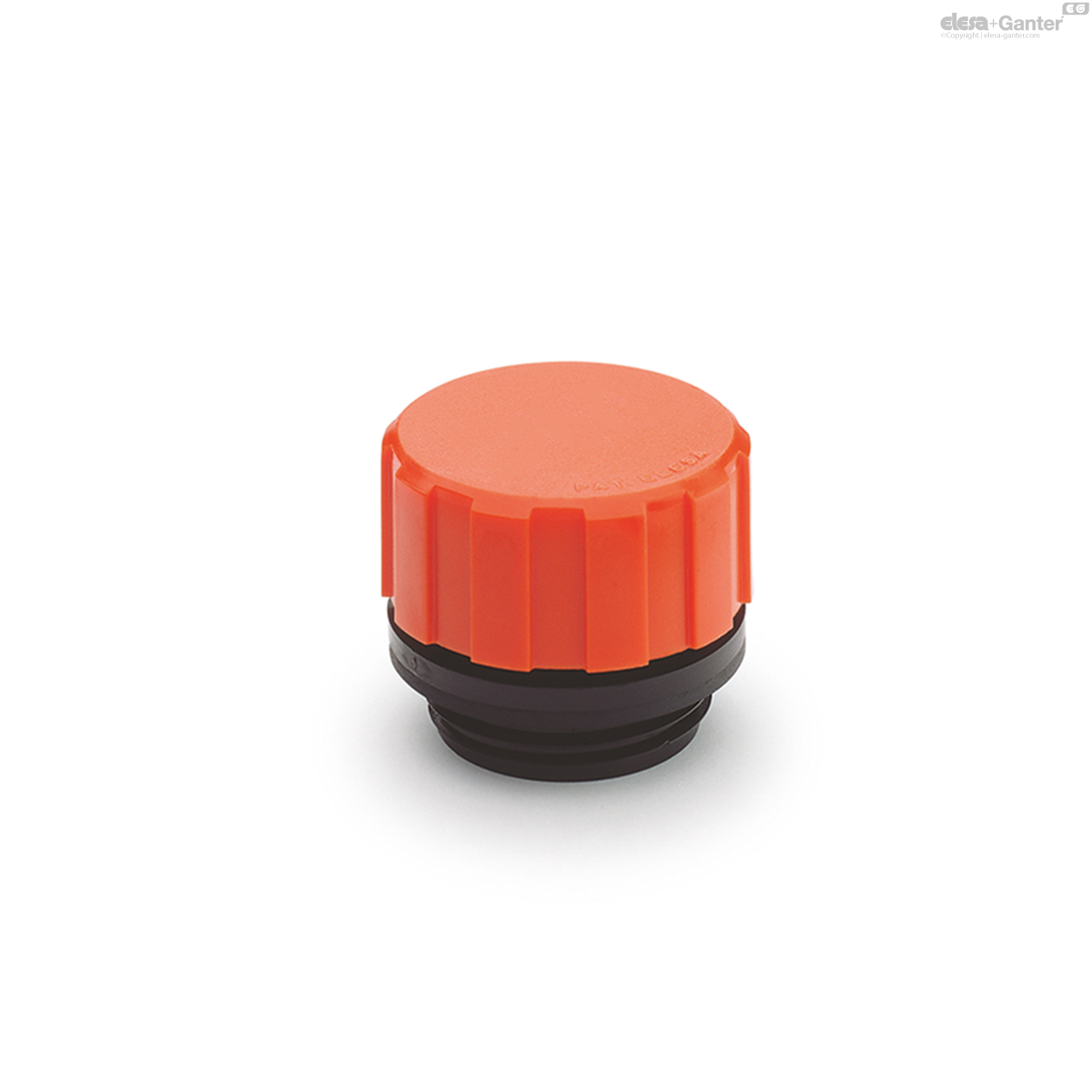

SFN-BA+F-NOntluchtingsdoppen
Met luchtfilter, bajonetverbinding, zonder opschrift ‘OIL’
Technopolymeer
|

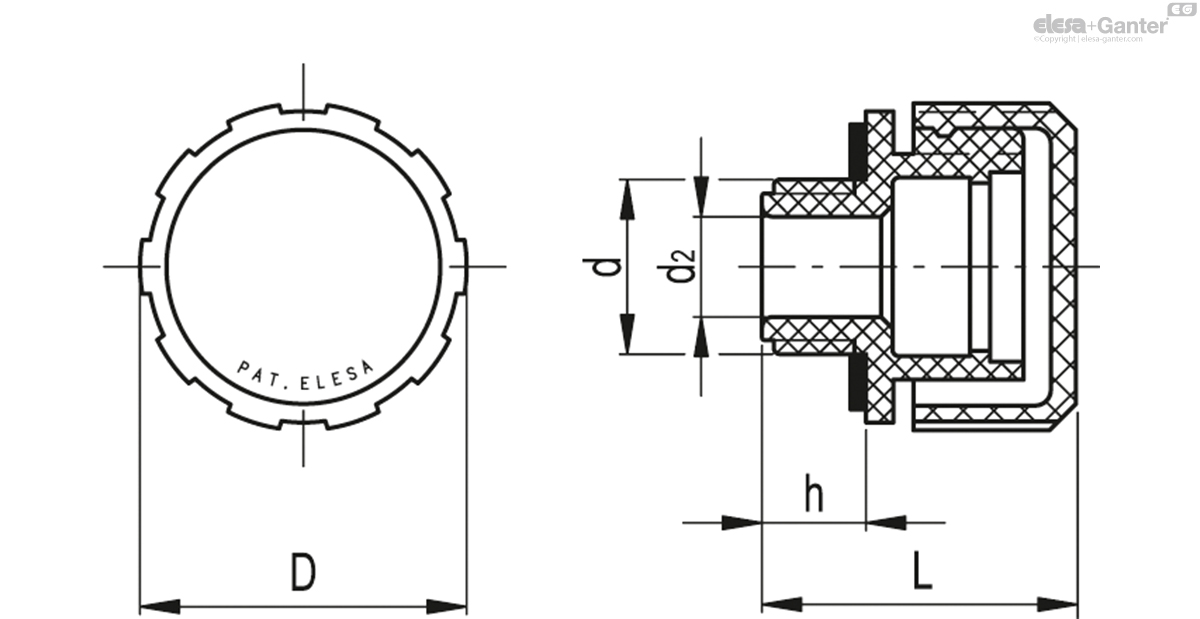

Code
|
Omschrijving
|
D
|
L
|
d2
|
d4
|
h
|
|
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
54731-C9-N
|
SFN.70-BA+F-C9-N
|
70
|
56
|
23
|
39
|
14
|
90
|
# Types available on request with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20).
Cover
Polyamide based (PA) technopolymer, semi-matte finish.
- SFN.: RAL 2004 orange, marked 'OIL'.
- SFN......-C9: RAL 9005 black colour, marked 'OIL'.
- SFN......-C2-N: RAL 2004 orange, without 'OIL' mark.
- SFN......-C9-N: RAL 9005 black colour, without 'OIL' mark.
Threaded fitting
Polyamide based (PA) technopolymer, black colour, semi-matte finish.
Packing ring
NBR synthetic rubber.
Standard executions
- SFN.: without air filter.
- SFN+F: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.
- SFN-BA+F: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.
Zinc-plated steel sheet bayonet.
Chrome-plated steel safety chain.
Maximum continuous working temperature
100°C.
Features and applications
SFN. breather caps, owing to their high air flow rate, are particularly suitable for use on hydraulic power packs or tanks subject to rapid changes in liquid volume.
Technical data

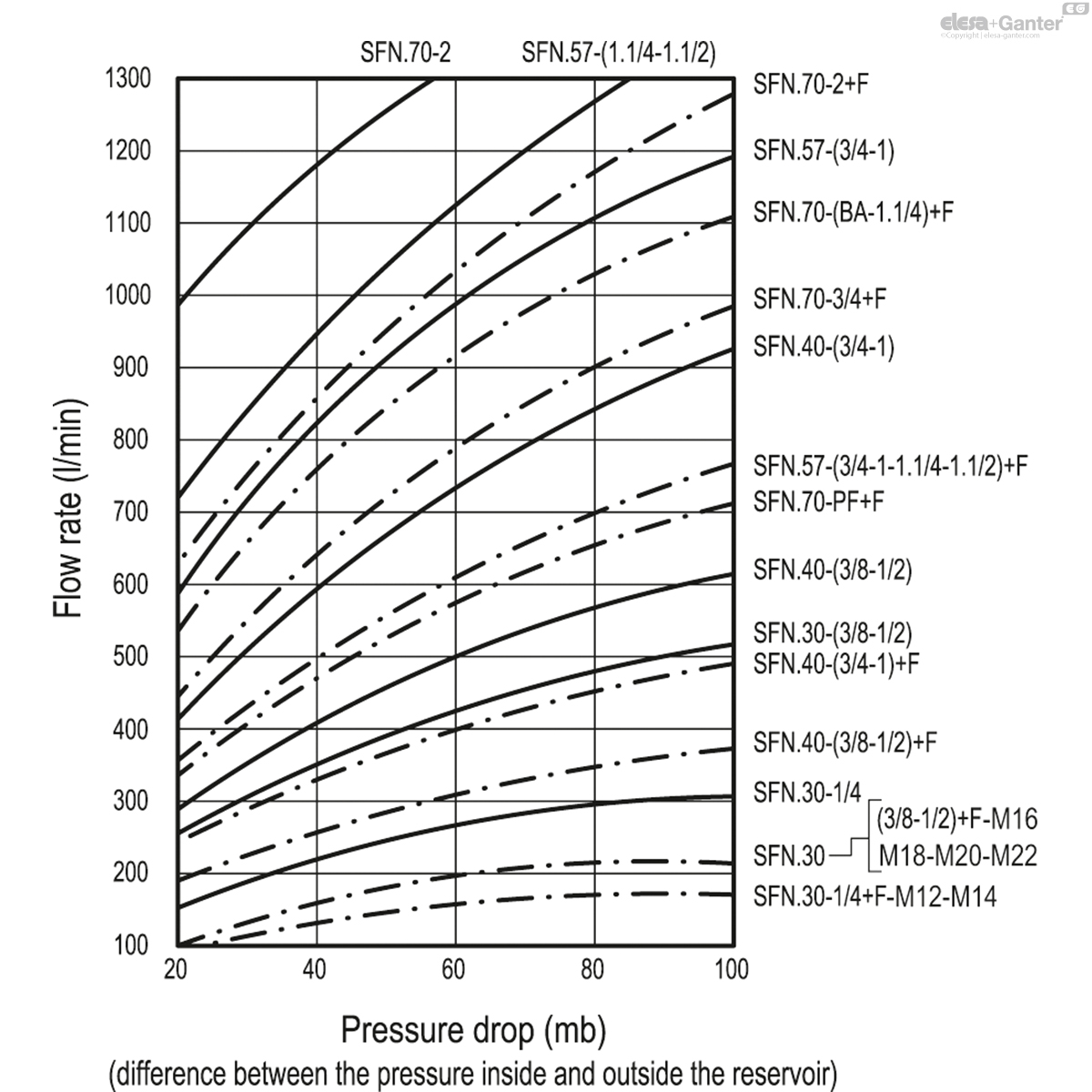

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.
Special execution on request
Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.
