NIL.TBouchons d'extrémité
Pour tubes ronds
Polyéthylène
|
Code
|
Omschrijving
|
D
|
h
|
h1
|
External tube diameter
|
Thickness
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
435010-C9
|
NIL.T-10-C9
|
10
|
11
|
3.5
|
10
|
1÷2
|
|
435012-C9
|
NIL.T-12-C9
|
12
|
11
|
3.5
|
12
|
1÷2
|
|
435013-C9
|
NIL.T-13-C9
|
13
|
11
|
4
|
13
|
1÷2
|
|
435014-C9
|
NIL.T-14-C9
|
14
|
11.5
|
5
|
14
|
1÷2
|
|
435015-C9
|
NIL.T-15-C9
|
15
|
11.5
|
3
|
15
|
1÷2
|
|
435016-C9
|
NIL.T-16-C9
|
16
|
11
|
5
|
16
|
1÷2
|
|
435018-C9
|
NIL.T-18-C9
|
18
|
11.5
|
5
|
18
|
1÷2
|
|
435019-C9
|
NIL.T-19-C9
|
19
|
11.5
|
5
|
19
|
1÷2,5
|
|
435020-C9
|
NIL.T-20-C9
|
20
|
11.5
|
5
|
20
|
1÷2,5
|
|
435022-C9
|
NIL.T-22-C9
|
22
|
11.5
|
5
|
22
|
1÷2
|
|
435023-C9
|
NIL.T-23-C9
|
23
|
11.5
|
5
|
23
|
1÷2,5
|
|
435024-C9
|
NIL.T-24-C9
|
24
|
11.5
|
5
|
24
|
1÷2,5
|
|
435025-C9
|
NIL.T-25-C9
|
25
|
11.5
|
5
|
25
|
1÷3
|
|
435026-C9
|
NIL.T-26-C9
|
26
|
11.5
|
5
|
26
|
1÷3
|
|
435027-C9
|
NIL.T-27-C9
|
27
|
11.5
|
5
|
27
|
1÷3
|
|
435028-C9
|
NIL.T-28-C9
|
28
|
11.5
|
5
|
28
|
1÷3
|
|
435030-C9
|
NIL.T-30-C9
|
30
|
11.5
|
5
|
30
|
1÷2,5
|
|
435032-C9
|
NIL.T-32-C9
|
32
|
12
|
5
|
32
|
1÷3
|
|
435034-C9
|
NIL.T-34-C9
|
34
|
11.5
|
5
|
34
|
1÷3
|
|
435035-C9
|
NIL.T-35-C9
|
35
|
11.5
|
5
|
35
|
1÷3
|
|
435036-C9
|
NIL.T-36-C9
|
36
|
11.5
|
5
|
36
|
1÷3
|
|
435037-C9
|
NIL.T-37-C9
|
37
|
11.5
|
5
|
37
|
1÷3
|
|
435038-C9
|
NIL.T-38-C9
|
38
|
11.5
|
5
|
38
|
1÷3,5
|
|
435040-C9
|
NIL.T-40-C9
|
40
|
11.5
|
5
|
40
|
1÷3
|
|
435042-C9
|
NIL.T-42-C9
|
42
|
11.5
|
5
|
42
|
1÷3
|
|
435045-C9
|
NIL.T-45-C9
|
45
|
11
|
5
|
45
|
1÷3
|
|
435046-C9
|
NIL.T-46-C9
|
46
|
11.5
|
5
|
46
|
1,5÷3,5
|
|
435048-C9
|
NIL.T-48-C9
|
48
|
11.5
|
5
|
48
|
1,2÷3,6
|
|
435050-C9
|
NIL.T-50-C9
|
50
|
14.5
|
5
|
50
|
1÷2,5
|
|
435150-C9
|
NIL.T-50-2.5-C9
|
50
|
11.5
|
5
|
50
|
2,5÷4.5
|
|
435052-C9
|
NIL.T-52-C9
|
52
|
14.5
|
5
|
52
|
1,5÷3,5
|
|
435055-C9
|
NIL.T-55-C9
|
55
|
11.5
|
5
|
55
|
1÷3
|
|
435155-C9
|
NIL.T-55-3-C9
|
55
|
14.5
|
5
|
55
|
3÷5
|
|
435060-C9
|
NIL.T-60-C9
|
60
|
14.5
|
5
|
60
|
1,5÷3
|
|
435160-C9
|
NIL.T-60-3-C9
|
60
|
17.5
|
5
|
60
|
3÷5
|
|
435065-C9
|
NIL.T-65-C9
|
65
|
14.5
|
5
|
65
|
1,5÷3,5
|
|
435070-C9
|
NIL.T-70-C9
|
70
|
21
|
5
|
70
|
1,5÷3,5
|
|
435075-C9
|
NIL.T-75-C9
|
75
|
21.5
|
6
|
75
|
1÷3,5
|
|
435076-C9
|
NIL.T-76-C9
|
76
|
21.5
|
6
|
76
|
1,6÷4
|
|
435080-C9
|
NIL.T-80-C9
|
80
|
22
|
5
|
80
|
1,5÷3
|
|
435085-C9
|
NIL.T-85-C9
|
85
|
21
|
6
|
85
|
1,5÷4
|
|
435088-C9
|
NIL.T-88-C9
|
88
|
21.5
|
6
|
88
|
1,5÷4
|
|
435090-C9
|
NIL.T-90-C9
|
90
|
21
|
6
|
90
|
1,5÷5
|
|
435095-C9
|
NIL.T-95-C9
|
95
|
21
|
6
|
95
|
1,5÷4
|
|
435110-C9
|
NIL.T-100-C9
|
100
|
28.5
|
6
|
100
|
2÷4,5
|
Material
Polyethylene (PE), RAL 9005 (C9) black colour or RAL 7042 (C34) grey colour, satin finish.
Standard executions

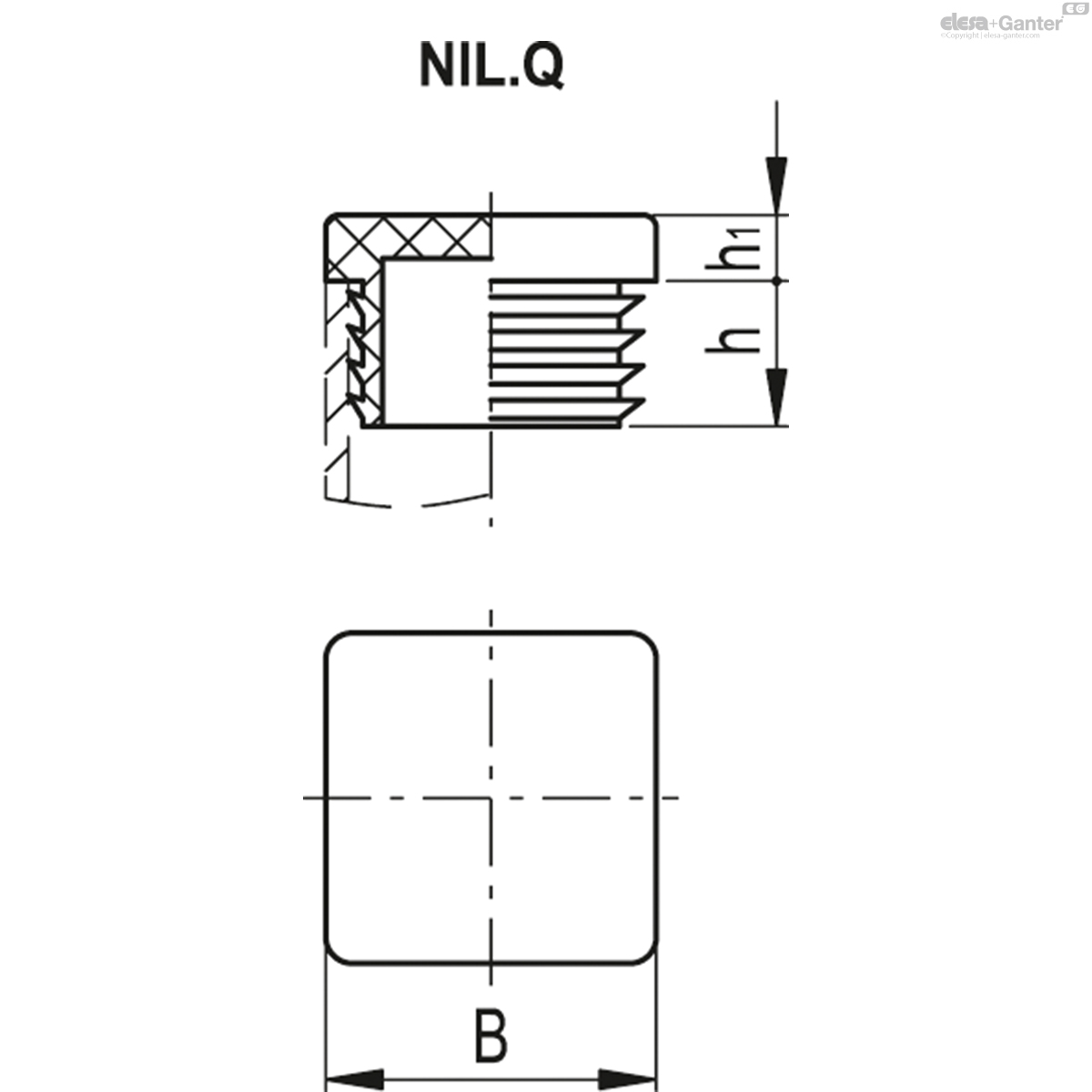

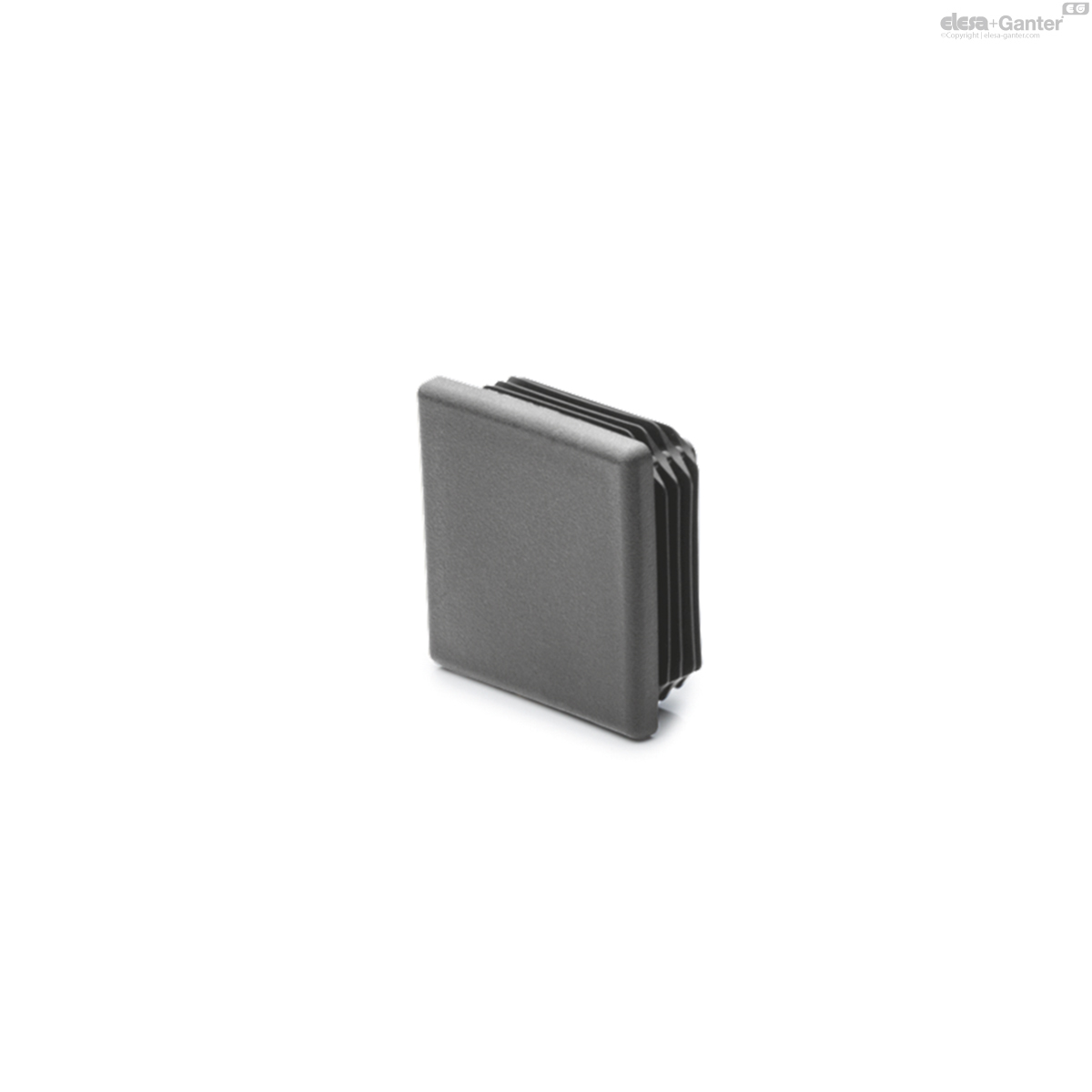

- NIL.Q: for square tubes.
- NIL.R: for rectangular tubes.
- NIL.T: for round tubes.
Fitting
Their fitting to the round, square or rectangular section tube or profile ends can be made either by hand or by a mallet.
Special executions on request
RAL 9003 white coloured inserts.
