Technical datasheet
GN 912.3Dopschroeven
Dopschroeven

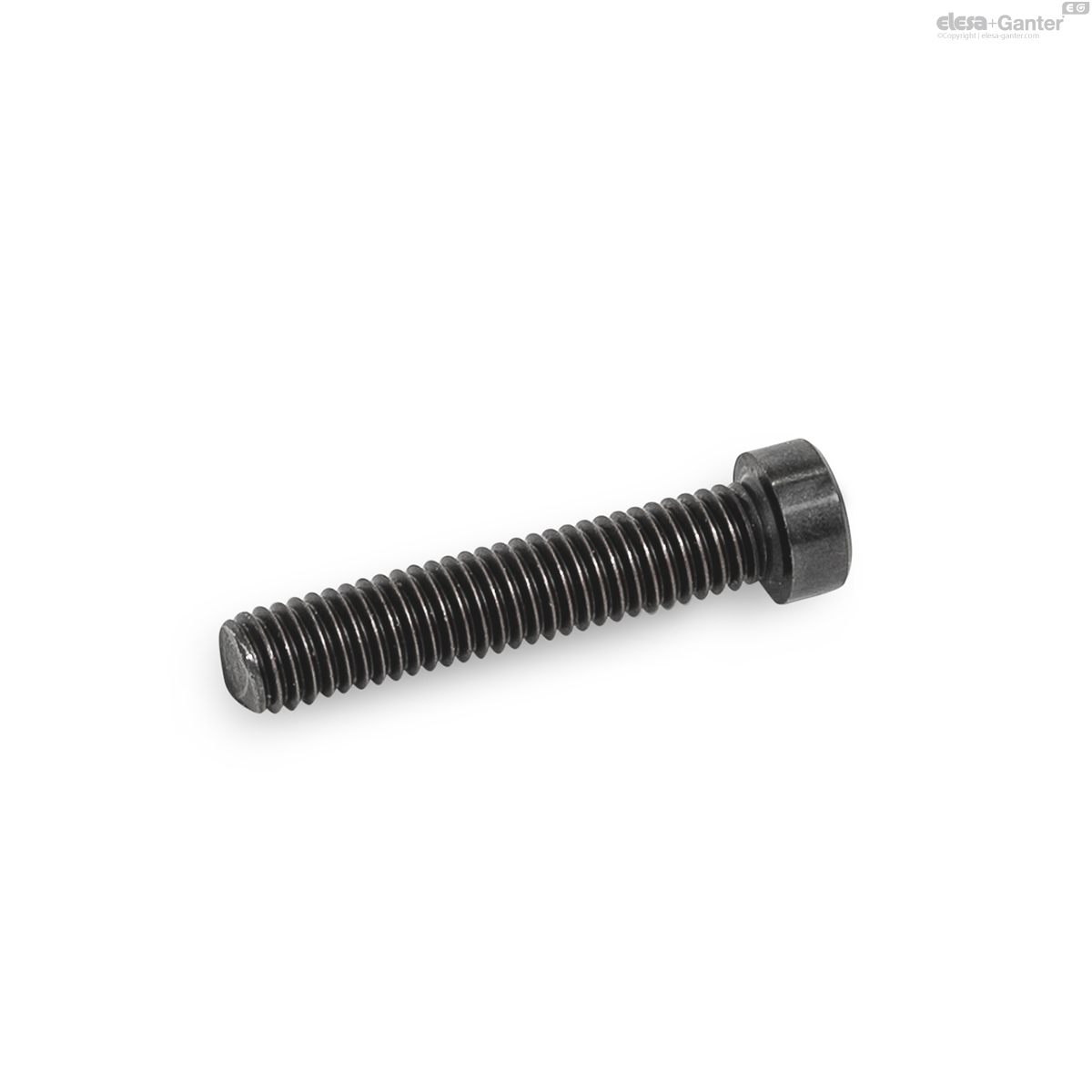

Roestvrij staal, met gereduceerde kopdiameter, met inwendige zeskant
|
Code
|
d1
|
Length l
|
d2 ±0.1
|
k
|
A/F
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
GN 912.3-M3-5-NI
|
M 3
|
5
|
4.5
|
3
|
2.5
|
1
|
|
GN 912.3-M3-6-NI
|
M 3
|
6
|
4.5
|
3
|
2.5
|
2
|
|
GN 912.3-M3-8-NI
|
M 3
|
8
|
4.5
|
3
|
2.5
|
3
|
|
GN 912.3-M3-10-NI
|
M 3
|
10
|
4.5
|
3
|
2.5
|
4
|
|
GN 912.3-M3-12-NI
|
M 3
|
12
|
4.5
|
3
|
2.5
|
5
|
|
GN 912.3-M4-6-NI
|
M 4
|
6
|
5.5
|
4
|
3
|
1
|
|
GN 912.3-M4-8-NI
|
M 4
|
8
|
5.5
|
4
|
3
|
2
|
|
GN 912.3-M4-10-NI
|
M 4
|
10
|
5.5
|
4
|
3
|
3
|
|
GN 912.3-M4-12-NI
|
M 4
|
12
|
5.5
|
4
|
3
|
4
|
|
GN 912.3-M4-16-NI
|
M 4
|
16
|
5.5
|
4
|
3
|
5
|
|
GN 912.3-M4-20-NI
|
M 4
|
20
|
5.5
|
4
|
3
|
6
|
|
GN 912.3-M4-25-NI
|
M 4
|
25
|
5.5
|
4
|
3
|
7
|
|
GN 912.3-M5-8-NI
|
M 5
|
8
|
7
|
4.5
|
4
|
2
|
|
GN 912.3-M5-10-NI
|
M 5
|
10
|
7
|
4.5
|
4
|
3
|
|
GN 912.3-M5-12-NI
|
M 5
|
12
|
7
|
4.5
|
4
|
4
|
|
GN 912.3-M5-16-NI
|
M 5
|
16
|
7
|
4.5
|
4
|
5
|
|
GN 912.3-M5-20-NI
|
M 5
|
20
|
7
|
4.5
|
4
|
6
|
|
GN 912.3-M5-25-NI
|
M 5
|
25
|
7
|
4.5
|
4
|
7
|
|
GN 912.3-M6-8-NI
|
M 6
|
8
|
8.5
|
5.5
|
5
|
3
|
|
GN 912.3-M6-10-NI
|
M 6
|
10
|
8.5
|
5.5
|
5
|
4
|
|
GN 912.3-M6-12-NI
|
M 6
|
12
|
8.5
|
5.5
|
5
|
5
|
|
GN 912.3-M6-16-NI
|
M 6
|
16
|
8.5
|
5.5
|
5
|
6
|
|
GN 912.3-M6-20-NI
|
M 6
|
20
|
8.5
|
5.5
|
5
|
7
|
|
GN 912.3-M6-25-NI
|
M 6
|
25
|
8.5
|
5.5
|
5
|
8
|
|
GN 912.3-M6-30-NI
|
M 6
|
30
|
8.5
|
5.5
|
5
|
9
|
|
GN 912.3-M8-10-NI
|
M 8
|
10
|
11
|
7.5
|
6
|
8
|
|
GN 912.3-M8-12-NI
|
M 8
|
12
|
11
|
7.5
|
6
|
9
|
|
GN 912.3-M8-16-NI
|
M 8
|
16
|
11
|
7.5
|
6
|
10
|
|
GN 912.3-M8-20-NI
|
M 8
|
20
|
11
|
7.5
|
6
|
11
|
|
GN 912.3-M8-25-NI
|
M 8
|
25
|
11
|
7.5
|
6
|
12
|
|
GN 912.3-M8-30-NI
|
M 8
|
30
|
11
|
7.5
|
6
|
14
|
|
GN 912.3-M8-35-NI
|
M 8
|
35
|
11
|
7.5
|
6
|
16
|
|
GN 912.3-M10-16-NI
|
M 10
|
16
|
13.5
|
9.5
|
8
|
16
|
|
GN 912.3-M10-20-NI
|
M 10
|
20
|
13.5
|
9.5
|
8
|
18
|
|
GN 912.3-M10-25-NI
|
M 10
|
25
|
13.5
|
9.5
|
8
|
20
|
|
GN 912.3-M10-30-NI
|
M 10
|
30
|
13.5
|
9.5
|
8
|
23
|
|
GN 912.3-M10-35-NI
|
M 10
|
35
|
13.5
|
9.5
|
8
|
26
|
|
GN 912.3-M10-40-NI
|
M 10
|
40
|
13.5
|
9.5
|
8
|
28
|

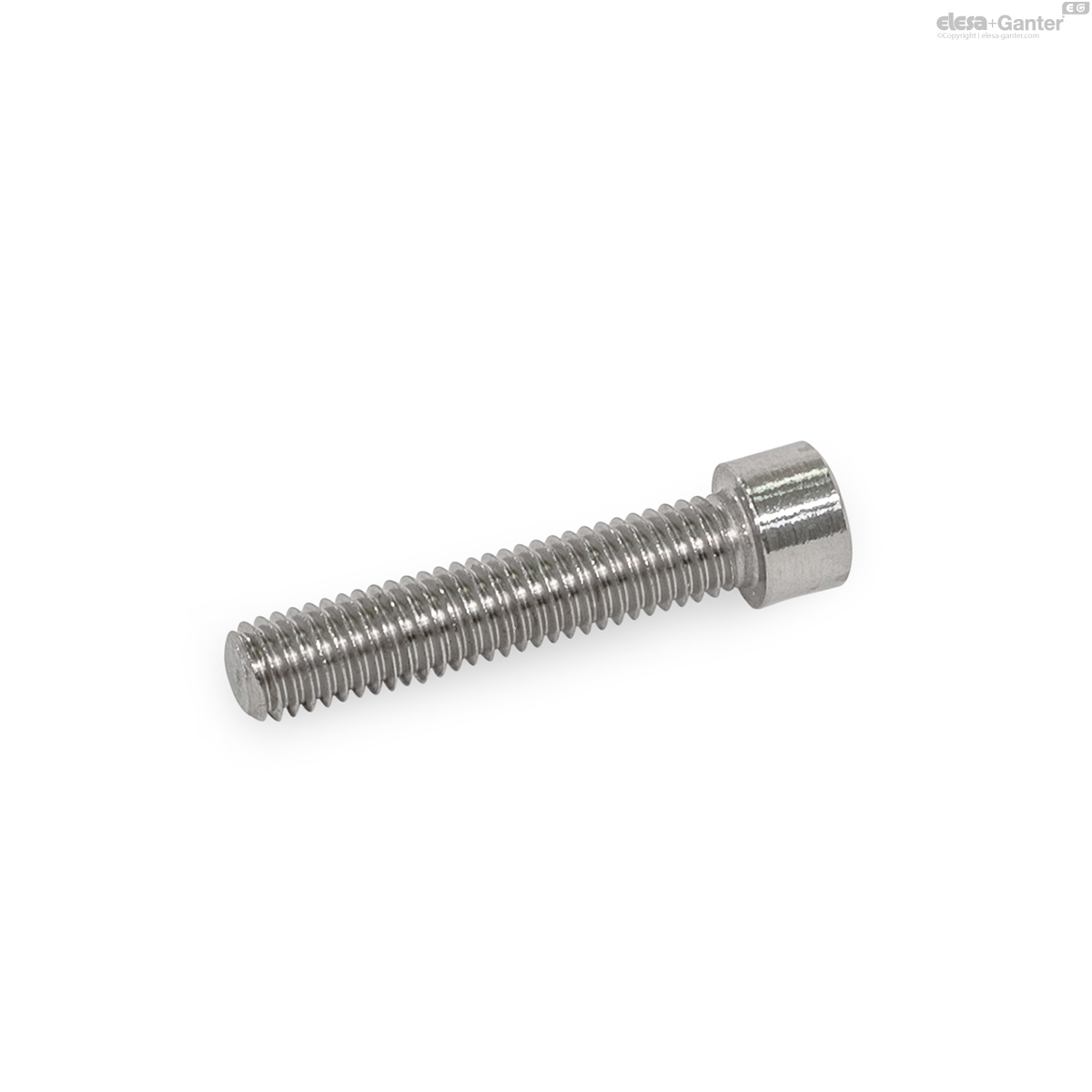

Stainless steel AISI 304 NI

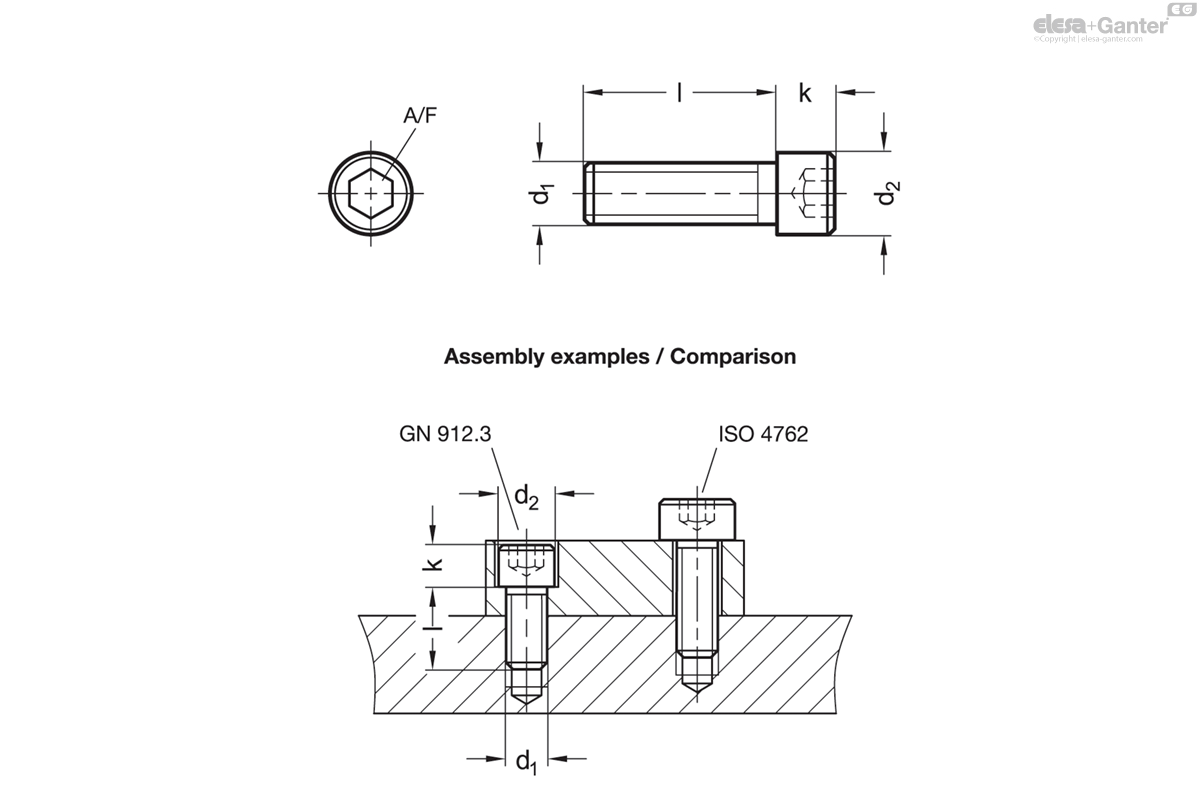

Socket cap screws GN 912.3 have a reduced head diameter compared with socket cap screws ISO 4762.
Thus the screws can be countersunk in places where this would not possible with standard socket cap screws due insufficient to space, such as a small edge distance.
Due to their head geometry, screws according to this specification have a reduced load capacity as per ISO 898-1.
