Technical datasheet

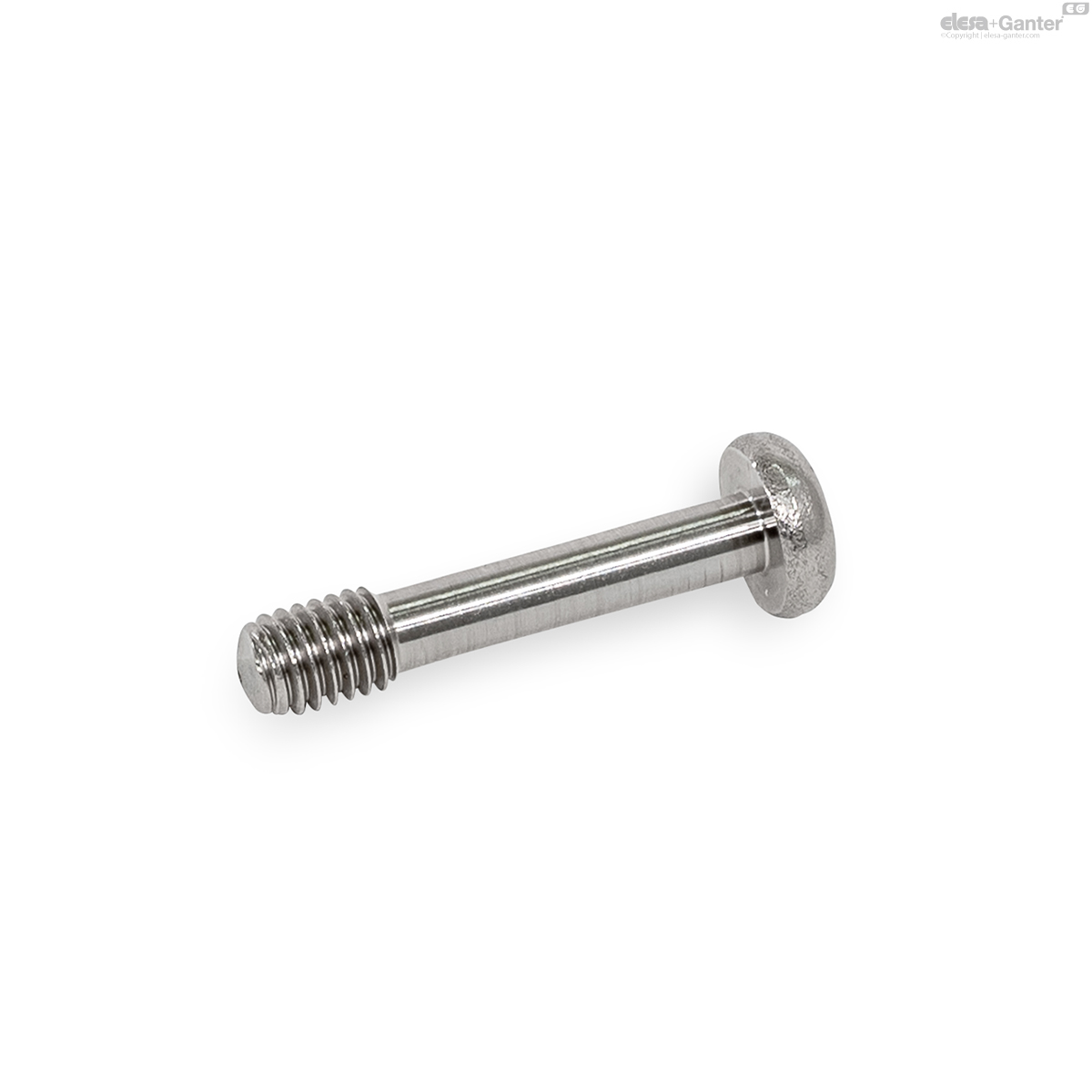

GN 7045.2Schroeven met platte kop
Schroeven met platte kop
Roestvrij staal, met Phillips Drive, met verzonken tapeind voor verliesbescherming
|
Code
|
d1
|
l1
|
a1
|
a2
|
a3
|
d2
|
d3 -0.3
|
d4
|
k
|
l2
|
l3
|
Phillips drive
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 7045.2-M3-12-NI
|
M 3
|
12
|
1.5-3
|
3-6.5
|
6.5-8
|
5.5
|
2.2
|
3.5
|
2
|
4
|
1.5
|
PH 2
|
|
GN 7045.2-M3-16-NI
|
M 3
|
16
|
3-7
|
7-8
|
8-12
|
5.5
|
2.2
|
3.5
|
2
|
4
|
1.5
|
PH 2
|
|
GN 7045.2-M4-16-NI
|
M 4
|
16
|
2-5
|
5-8
|
8-11
|
7
|
3
|
4.5
|
2.6
|
5
|
2
|
PH 2
|
|
GN 7045.2-M4-20-NI
|
M 4
|
20
|
5-9
|
9-11
|
11-15
|
7
|
3
|
4.5
|
2.6
|
5
|
2
|
PH 2
|
|
GN 7045.2-M5-20-NI
|
M 5
|
20
|
2.5-6
|
6-10.5
|
10.5-14
|
9
|
3.9
|
5.5
|
3.3
|
6
|
2.5
|
PH 2
|
|
GN 7045.2-M5-25-NI
|
M 5
|
25
|
6-11
|
11-14
|
14-19
|
9
|
3.9
|
5.5
|
3.3
|
6
|
2.5
|
PH 2
|
|
GN 7045.2-M6-25-NI
|
M 6
|
25
|
3-7
|
7-13
|
13-17
|
10.5
|
4.6
|
6.5
|
3.9
|
8
|
3
|
PH 3
|
|
GN 7045.2-M6-30-NI
|
M 6
|
30
|
7-12
|
12-17
|
17-22
|
10.5
|
4.6
|
6.5
|
3.9
|
8
|
3
|
PH 3
|
|
GN 7045.2-M8-30-NI
|
M 8
|
30
|
4-8
|
8-16
|
16-20
|
14
|
6.3
|
8.5
|
5.2
|
10
|
4
|
PH 3
|
|
GN 7045.2-M8-35-NI
|
M 8
|
35
|
8-13
|
13-20
|
20-25
|
14
|
6.3
|
8.5
|
5.2
|
10
|
4
|
PH 3
|
|
GN 7045.2-M8-40-NI
|
M 8
|
40
|
13-18
|
18-25
|
25-30
|
14
|
6.3
|
8.5
|
5.2
|
10
|
4
|
PH 3
|
Stainless steel AISI 304 NI
Pan head screws GN 7045.2 feature a recessed stud d3, making it easy to secure them against loss, such as in a cover.
Thus the „captivity of the mounting element“ according to the Machinery Directive 2006 / 42 / EG is given.

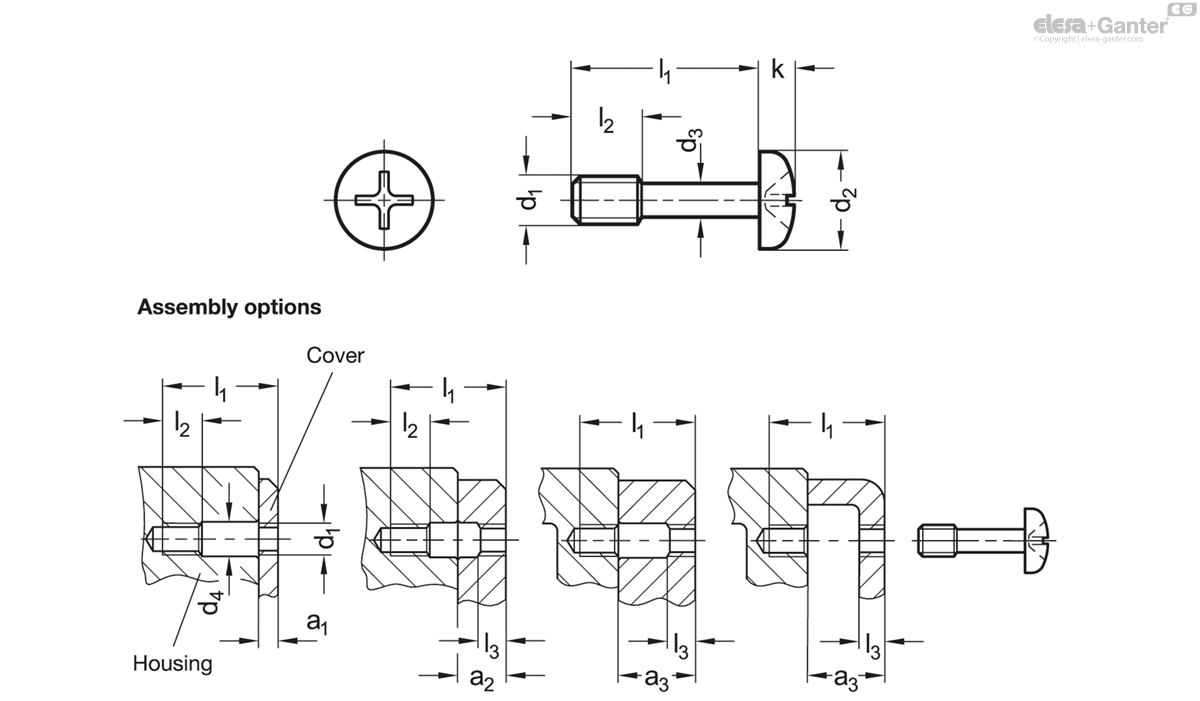

For this purpose, instead of a normal through / threaded hole a thread d1 on both sides, if necessary with a corresponding clearance hole d4 must be provided. Depending on the design and required clamping length a1 ... a3 of the cover, there are a number of assembly options as shown.
