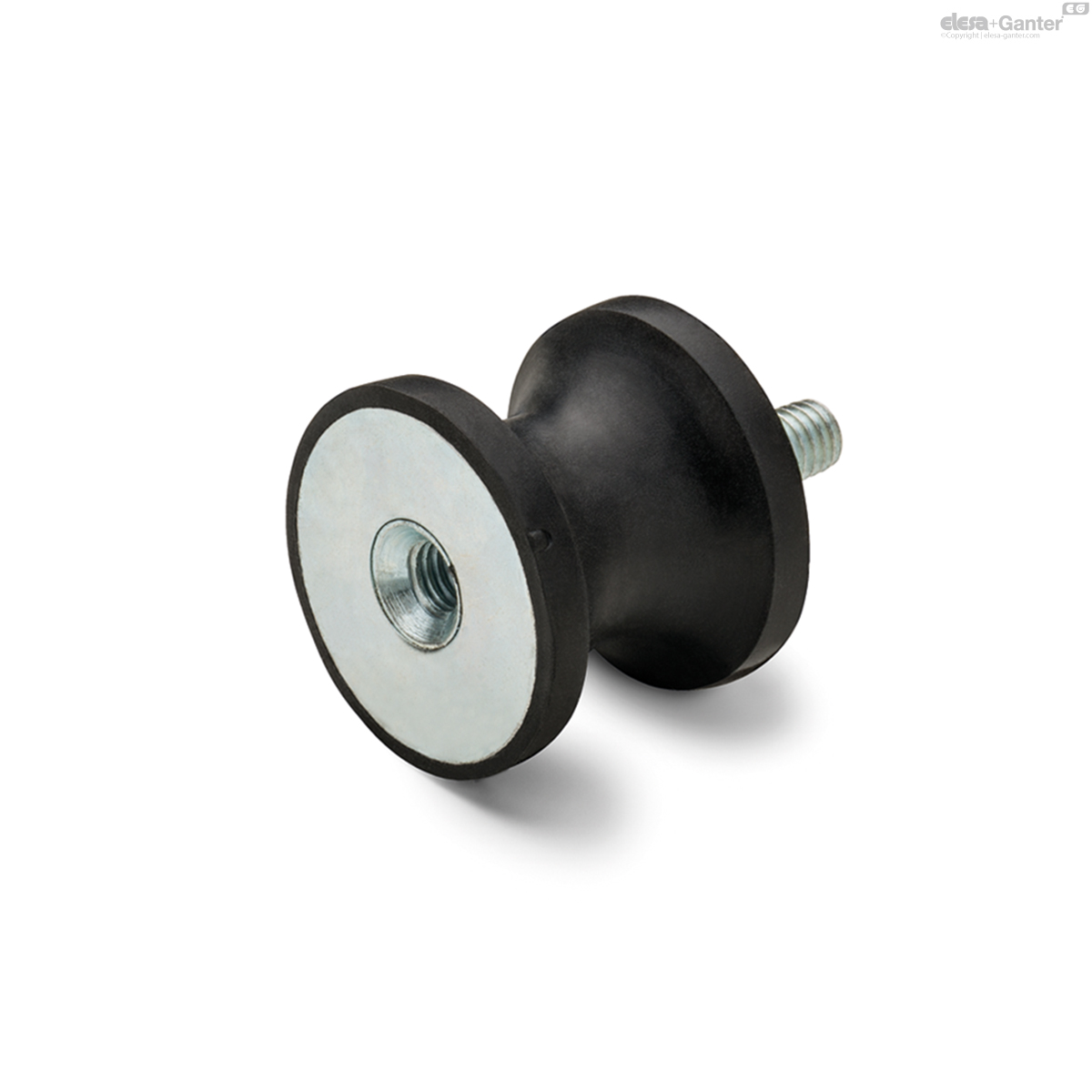

Technical datasheet
DVC.2Trillingsdempers

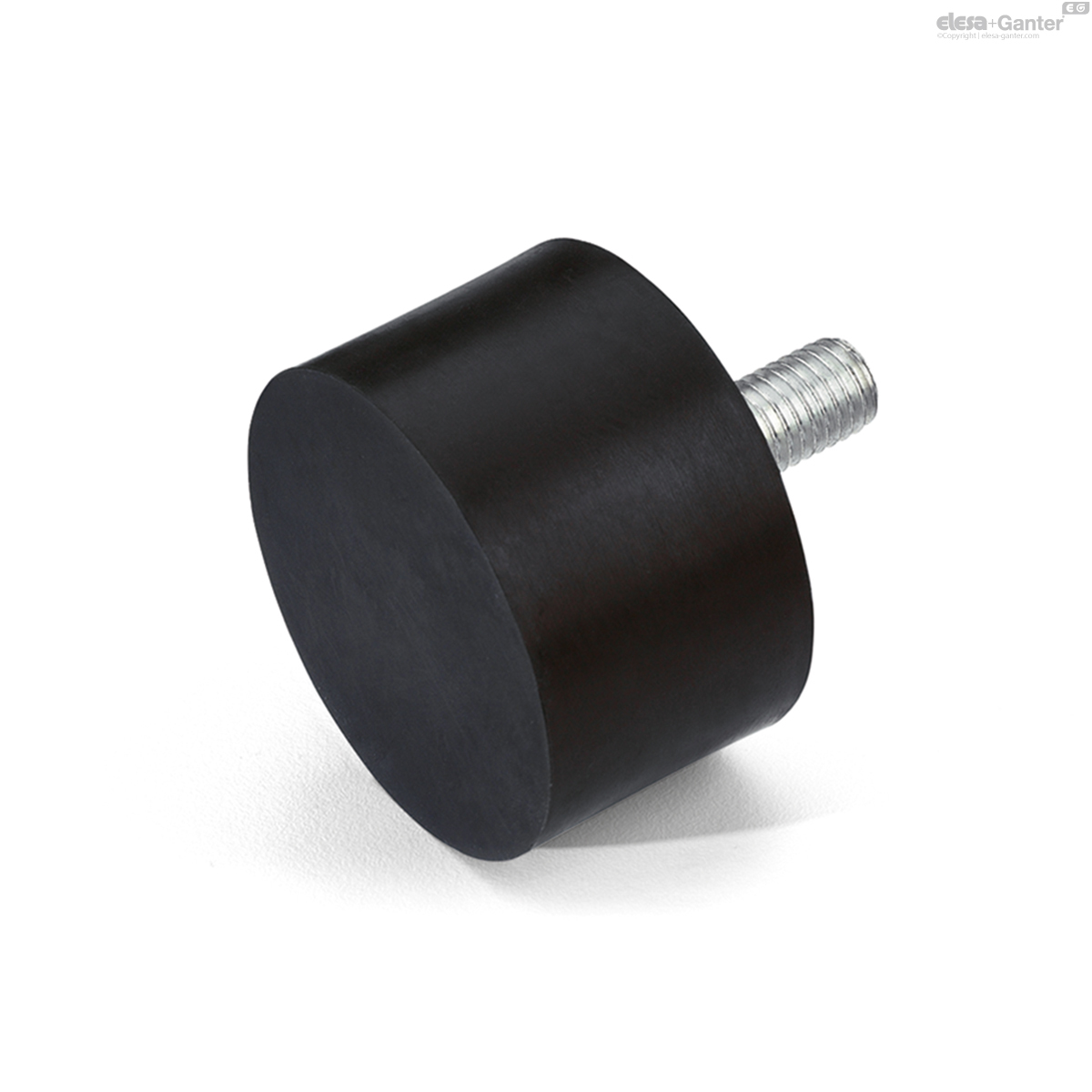

Stalen basisplaat
Rubber en staal of roestvast staal

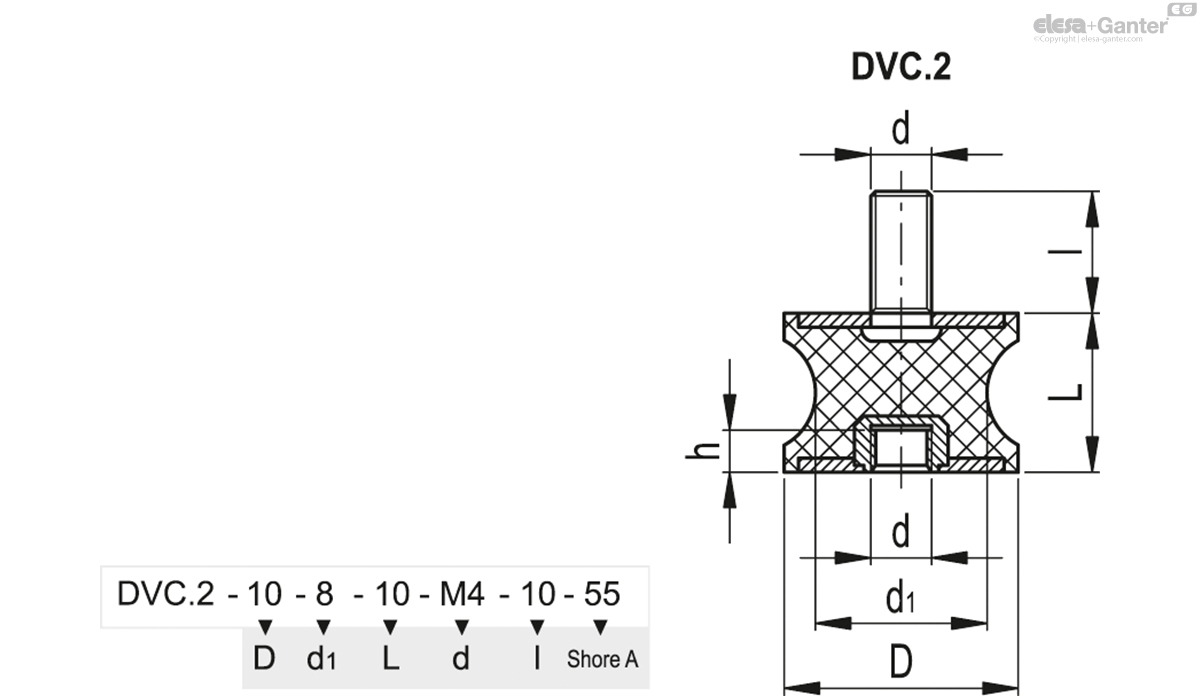

DVC.2
|
Code
|
Omschrijving
|
D
|
L
|
d
|
d1
|
l
|
h
|
Max. load
[N] |
Max. deflection
[mm] |
Stiffness
[N/mm] |
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DVC.2-10-8-10-M4-10-40
|
10
|
10
|
M4
|
8
|
10
|
4
|
47
|
2.5
|
19
|
3
| ||
|
DVC.2-10-8-10-M4-10-55
|
10
|
10
|
M4
|
8
|
10
|
4
|
88
|
2.5
|
35
|
3
| ||
|
DVC.2-10-8-10-M4-10-70
|
10
|
10
|
M4
|
8
|
10
|
4
|
124
|
2.5
|
50
|
3
| ||
|
DVC.2-15-8,5-15-M4-10-40
|
15
|
15
|
M4
|
8,5
|
10
|
4
|
81
|
3.75
|
22
|
7
| ||
|
DVC.2-15-8,5-15-M4-10-55
|
15
|
15
|
M4
|
8,5
|
10
|
4
|
132
|
3.75
|
35
|
7
| ||
|
DVC.2-15-8,5-15-M4-10-70
|
15
|
15
|
M4
|
8,5
|
10
|
4
|
180
|
3.75
|
48
|
8
| ||
|
DVC.2-15-12-15-M4-10-40
|
15
|
15
|
M4
|
12
|
10
|
4
|
132
|
3.75
|
35
|
10
| ||
|
DVC.2-15-12-15-M4-10-55
|
15
|
15
|
M4
|
12
|
10
|
4
|
142
|
3.75
|
38
|
7
| ||
|
DVC.2-15-12-15-M4-10-70
|
15
|
15
|
M4
|
12
|
10
|
4
|
191
|
3.75
|
51
|
7
| ||
|
DVC.2-20-14-15-M6-18-40
|
20
|
15
|
M6
|
14
|
18
|
6
|
278
|
3.75
|
74
|
14
| ||
|
DVC.2-20-14-15-M6-18-55
|
20
|
15
|
M6
|
14
|
18
|
6
|
360
|
3.75
|
96
|
14
| ||
|
DVC.2-20-14-15-M6-18-70
|
20
|
15
|
M6
|
14
|
18
|
6
|
429
|
3.75
|
114
|
14
| ||
|
DVC.2-20-14-19-M6-18-40
|
20
|
19
|
M6
|
14
|
18
|
6
|
255
|
4.75
|
54
|
15
| ||
|
DVC.2-20-14-19-M6-18-55
|
20
|
19
|
M6
|
14
|
18
|
6
|
314
|
4.75
|
66
|
15
| ||
|
DVC.2-20-14-19-M6-18-70
|
20
|
19
|
M6
|
14
|
18
|
6
|
398
|
4.75
|
84
|
1
| ||
|
DVC.2-20-14-20-M6-18-40
|
20
|
20
|
M6
|
14
|
18
|
6
|
252
|
5
|
50
|
15
| ||
|
DVC.2-20-14-20-M6-18-55
|
20
|
20
|
M6
|
14
|
18
|
6
|
305
|
5
|
61
|
15
| ||
|
DVC.2-20-14-20-M6-18-70
|
20
|
20
|
M6
|
14
|
18
|
6
|
396
|
5
|
79
|
17
| ||
|
DVC.2-21-16-22-M6-18-40
|
21
|
22
|
M6
|
16
|
18
|
6
|
260
|
5.5
|
47
|
17
| ||
|
DVC.2-21-16-22-M6-18-55
|
21
|
22
|
M6
|
16
|
18
|
6
|
340
|
5.5
|
62
|
17
| ||
|
DVC.2-21-16-22-M6-18-70
|
21
|
22
|
M6
|
16
|
18
|
6
|
399
|
5.5
|
73
|
19
| ||
|
DVC.2-20-12-30-M6-18-40
|
20
|
30
|
M6
|
12
|
18
|
6
|
174
|
7.5
|
23
|
16
| ||
|
DVC.2-20-12-30-M6-18-55
|
20
|
30
|
M6
|
12
|
18
|
6
|
267
|
7.5
|
36
|
14
| ||
|
DVC.2-20-12-30-M6-18-70
|
20
|
30
|
M6
|
12
|
18
|
6
|
299
|
7.5
|
40
|
16
| ||
|
DVC.2-20-14-30-M6-18-40
|
20
|
30
|
M6
|
14
|
18
|
6
|
173
|
7.5
|
23
|
16
| ||
|
DVC.2-20-14-30-M6-18-55
|
20
|
30
|
M6
|
14
|
18
|
6
|
255
|
7.5
|
34
|
17
| ||
|
DVC.2-20-14-30-M6-18-70
|
20
|
30
|
M6
|
14
|
18
|
6
|
380
|
7.5
|
51
|
17
| ||
|
DVC.2-25-18-20-M6-18-40
|
25
|
20
|
M6
|
18
|
18
|
6
|
593
|
5
|
119
|
18
| ||
|
DVC.2-25-18-20-M6-18-55
|
25
|
20
|
M6
|
18
|
18
|
6
|
631
|
5
|
126
|
24
| ||
|
DVC.2-25-18-20-M6-18-70
|
25
|
20
|
M6
|
18
|
18
|
6
|
1038
|
5
|
208
|
18
| ||
|
DVC.2-25-20-20-M6-18-40
|
25
|
20
|
M6
|
20
|
18
|
6
|
695
|
5
|
139
|
24
| ||
|
DVC.2-25-20-20-M6-18-55
|
25
|
20
|
M6
|
20
|
18
|
6
|
1119
|
5
|
224
|
25
| ||
|
DVC.2-25-20-20-M6-18-70
|
25
|
20
|
M6
|
20
|
18
|
6
|
1713
|
5
|
343
|
25
| ||
|
DVC.2-30-22-20-M8-20-40
|
30
|
20
|
M8
|
22
|
20
|
8
|
655
|
5
|
131
|
38
| ||
|
DVC.2-30-22-20-M8-20-55
|
30
|
20
|
M8
|
22
|
20
|
8
|
863
|
5
|
173
|
39
| ||
|
DVC.2-30-22-20-M8-20-70
|
30
|
20
|
M8
|
22
|
20
|
8
|
1272
|
5
|
254
|
39
| ||
|
DVC.2-30-18-25-M8-20-40
|
30
|
25
|
M8
|
18
|
20
|
8
|
572
|
6.25
|
92
|
39
| ||
|
DVC.2-30-18-25-M8-20-55
|
30
|
25
|
M8
|
18
|
20
|
8
|
881
|
6.25
|
141
|
39
| ||
|
DVC.2-30-18-25-M8-20-70
|
30
|
25
|
M8
|
18
|
20
|
8
|
1762
|
6.25
|
282
|
40
| ||
|
DVC.2-35-31-15-M8-20-40
|
35
|
15
|
M8
|
31
|
20
|
8
|
785
|
3.75
|
209
|
40
| ||
|
DVC.2-35-31-15-M8-20-55
|
35
|
15
|
M8
|
31
|
20
|
8
|
1310
|
3.75
|
349
|
40
| ||
|
DVC.2-35-31-15-M8-20-70
|
35
|
15
|
M8
|
31
|
20
|
8
|
2453
|
3.75
|
654
|
40
| ||
|
DVC.2-35-25-34-M8-20-40
|
35
|
34
|
M8
|
25
|
20
|
8
|
1355
|
8.5
|
159
|
65
| ||
|
DVC.2-35-25-34-M8-20-55
|
35
|
34
|
M8
|
25
|
20
|
8
|
1975
|
8.5
|
232
|
62
| ||
|
DVC.2-35-25-34-M8-20-70
|
35
|
34
|
M8
|
25
|
20
|
8
|
3050
|
8.5
|
359
|
65
| ||
|
DVC.2-40-30-25-M8-23-40
|
40
|
25
|
M8
|
30
|
23
|
8
|
2392
|
6.25
|
383
|
66
| ||
|
DVC.2-40-30-25-M8-23-55
|
40
|
25
|
M8
|
30
|
23
|
8
|
3188
|
6.25
|
510
|
85
| ||
|
DVC.2-40-30-25-M8-23-70
|
40
|
25
|
M8
|
30
|
23
|
8
|
4432
|
6.25
|
709
|
69
| ||
|
DVC.2-40-25-30-M8-23-40
|
40
|
30
|
M8
|
25
|
23
|
8
|
1229
|
7.5
|
164
|
71
| ||
|
DVC.2-40-25-30-M8-23-55
|
40
|
30
|
M8
|
25
|
23
|
8
|
2127
|
7.5
|
284
|
66
| ||
|
DVC.2-40-25-30-M8-23-70
|
40
|
30
|
M8
|
25
|
23
|
8
|
2947
|
7.5
|
393
|
71
| ||
|
DVC.2-40-33-30-M8-23-40
|
40
|
30
|
M8
|
33
|
23
|
8
|
861
|
7.5
|
115
|
71
| ||
|
DVC.2-40-33-30-M8-23-55
|
40
|
30
|
M8
|
33
|
23
|
8
|
1178
|
7.5
|
157
|
72
| ||
|
DVC.2-40-33-30-M8-23-70
|
40
|
30
|
M8
|
33
|
23
|
8
|
2191
|
7.5
|
292
|
75
| ||
|
DVC.2-40-20-48-M8-23-40
|
40
|
48
|
M8
|
20
|
23
|
8
|
657
|
12
|
55
|
88
| ||
|
DVC.2-40-20-48-M8-23-55
|
40
|
48
|
M8
|
20
|
23
|
8
|
931
|
12
|
78
|
80
| ||
|
DVC.2-40-20-48-M8-23-70
|
40
|
48
|
M8
|
20
|
23
|
8
|
1482
|
12
|
124
|
88
| ||
|
DVC.2-40-32-50-M8-23-40
|
40
|
50
|
M8
|
32
|
23
|
8
|
684
|
12.5
|
55
|
92
| ||
|
DVC.2-40-32-50-M8-23-55
|
40
|
50
|
M8
|
32
|
23
|
8
|
1043
|
12.5
|
83
|
98
| ||
|
DVC.2-40-32-50-M8-23-70
|
40
|
50
|
M8
|
32
|
23
|
8
|
1733
|
12.5
|
139
|
96
| ||
|
DVC.2-50-42-30-M10-28-40
|
50
|
30
|
M10
|
42
|
28
|
10
|
1420
|
7.5
|
189
|
119
| ||
|
DVC.2-50-42-30-M10-28-55
|
50
|
30
|
M10
|
42
|
28
|
10
|
1975
|
7.5
|
263
|
122
| ||
|
DVC.2-50-42-30-M10-28-70
|
50
|
30
|
M10
|
42
|
28
|
10
|
2945
|
7.5
|
393
|
125
| ||
|
DVC.2-55-44-45-M10-28-40
|
55
|
45
|
M10
|
44
|
28
|
10
|
1012
|
11.25
|
90
|
173
| ||
|
DVC.2-55-44-45-M10-28-55
|
55
|
45
|
M10
|
44
|
28
|
10
|
1320
|
11.25
|
117
|
177
| ||
|
DVC.2-55-44-45-M10-28-70
|
55
|
45
|
M10
|
44
|
28
|
10
|
2013
|
11.25
|
179
|
201
| ||
|
DVC.2-57-25-45-M10-28-40
|
57
|
45
|
M10
|
25
|
28
|
10
|
1007
|
11.25
|
90
|
143
| ||
|
DVC.2-57-25-45-M10-28-55
|
57
|
45
|
M10
|
25
|
28
|
10
|
1313
|
11.25
|
117
|
145
| ||
|
DVC.2-57-25-45-M10-28-70
|
57
|
45
|
M10
|
25
|
28
|
10
|
1765
|
11.25
|
157
|
130
| ||
|
DVC.2-60-49-60-M10-28-40
|
60
|
60
|
M10
|
49
|
28
|
10
|
1430
|
15
|
95
|
248
| ||
|
DVC.2-60-49-60-M10-28-55
|
60
|
60
|
M10
|
49
|
28
|
10
|
2560
|
15
|
171
|
248
| ||
|
DVC.2-60-49-60-M10-28-70
|
60
|
60
|
M10
|
49
|
28
|
10
|
4428
|
15
|
295
|
245
| ||
|
DVC.2-70-45-53-M12-37-40
|
70
|
53
|
M12
|
45
|
37
|
12
|
1993
|
13.25
|
150
|
332
| ||
|
DVC.2-70-45-53-M12-37-55
|
70
|
53
|
M12
|
45
|
37
|
12
|
2219
|
13.25
|
167
|
342
| ||
|
DVC.2-70-45-53-M12-37-70
|
70
|
53
|
M12
|
45
|
37
|
12
|
2473
|
13.25
|
187
|
354
| ||
|
DVC.2-72-64-33,5-M12-37-40
|
72
|
33,5
|
M12
|
64
|
37
|
12
|
3530
|
8.38
|
421
|
340
| ||
|
DVC.2-72-64-33,5-M12-37-55
|
72
|
33,5
|
M12
|
64
|
37
|
12
|
3364
|
8.38
|
401
|
340
| ||
|
DVC.2-72-64-33,5-M12-37-70
|
72
|
33,5
|
M12
|
64
|
37
|
12
|
7740
|
8.38
|
924
|
240
| ||
|
DVC.2-75-60-40-M12-37-40
|
75
|
40
|
M12
|
60
|
37
|
12
|
2605
|
10
|
261
|
335
| ||
|
DVC.2-75-60-40-M12-37-55
|
75
|
40
|
M12
|
60
|
37
|
12
|
3922
|
10
|
392
|
343
| ||
|
DVC.2-75-60-40-M12-37-70
|
75
|
40
|
M12
|
60
|
37
|
12
|
7005
|
10
|
701
|
362
| ||
|
DVC.2-95-80-75-M16-41-40
|
95
|
75
|
M16
|
80
|
41
|
16
|
7438
|
18.75
|
397
|
815
| ||
|
DVC.2-95-80-75-M16-41-55
|
95
|
75
|
M16
|
80
|
41
|
16
|
1036
|
18.75
|
55
|
935
| ||
|
DVC.2-95-80-75-M16-41-70
|
95
|
75
|
M16
|
80
|
41
|
16
|
13990
|
18.75
|
746
|
935
|
Standard executions
- DVC.2: bushing with threaded blind hole, threaded stud and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.
- DVC.2-SST: bushing with threaded blind hole, threaded stud and base plate in AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.
Features and applications
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines.
Unlike DVA rubber buffers, under pressure these articles allow more lateral movement without leaving the vertical plane of the metal insert.
Vibrations can cause:
- malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;
- damage to operator's health;
- noise.
Load diagrams for each single code are available on request.
Special executions on request
Natural rubber NR, hardness 40, 70 Shore A ±5, for executions with AISI 304 stainless steel base.
Gerelateerde producten

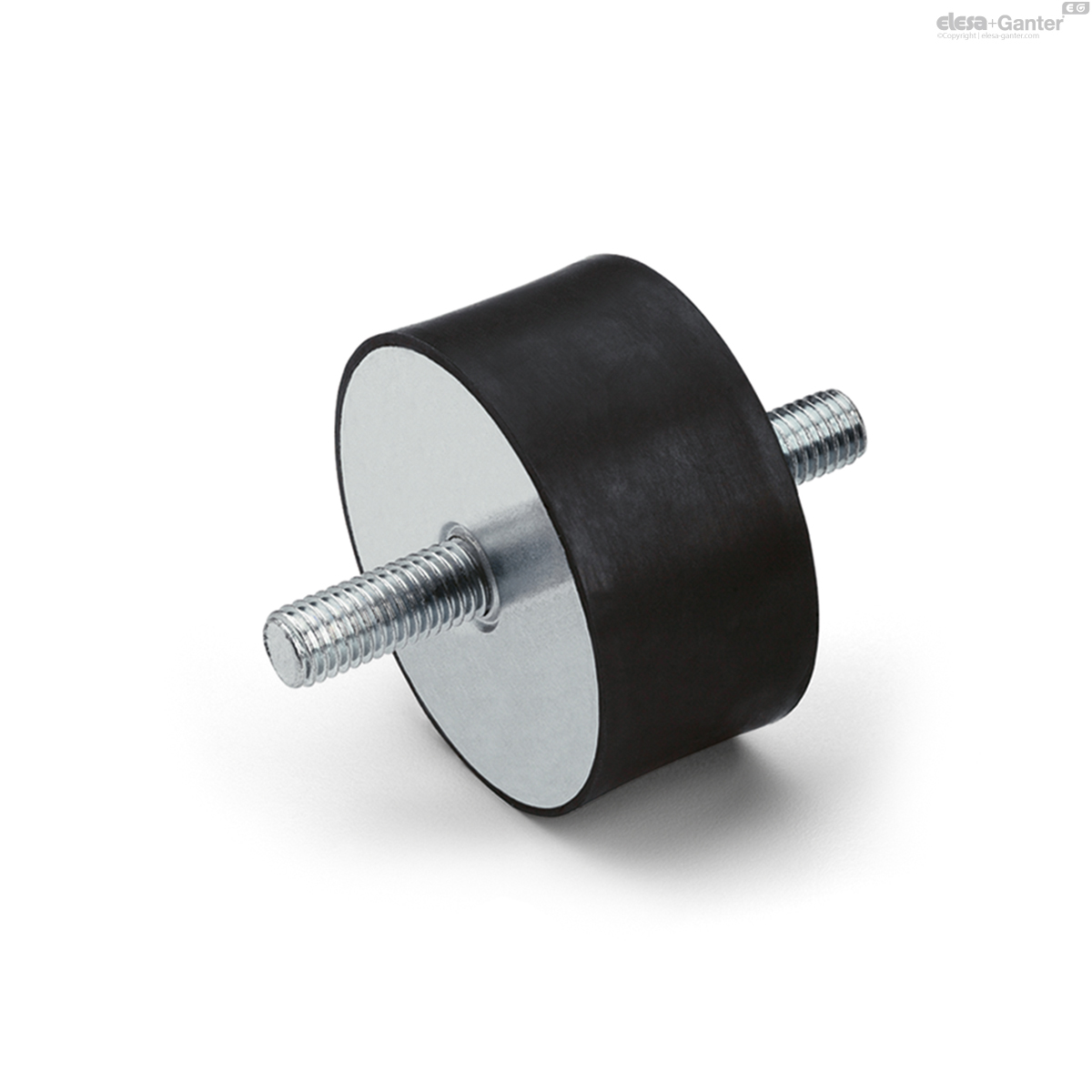

DVA.1
Trillingsdempers
Rubber en staal of roestvast staal
DVA.4
Trillingsdempers
Rubber en staal of roestvast staal

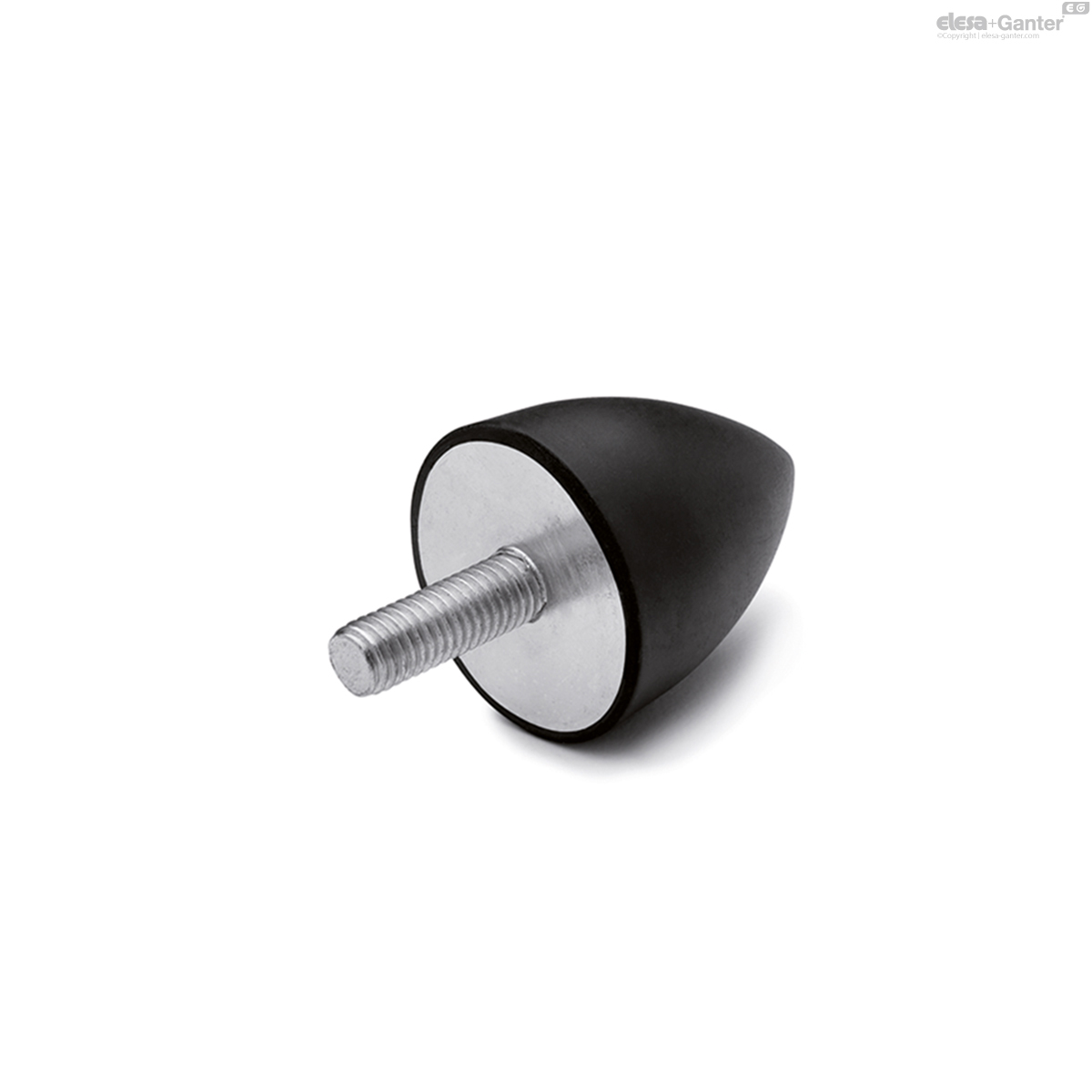

DVA.6
Trillingsdempers
Rubber en staal of roestvast staal

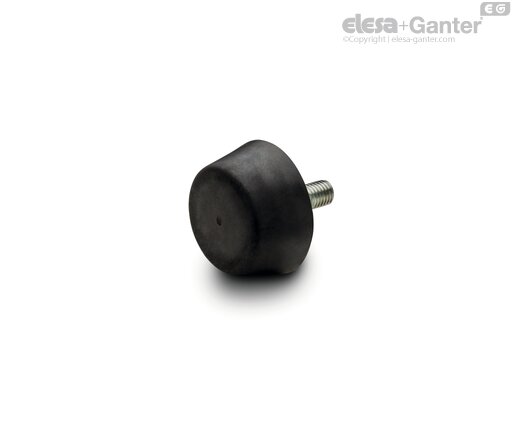

DVB.6
Trillingsdempers
Rubber en staal of roestvast staal

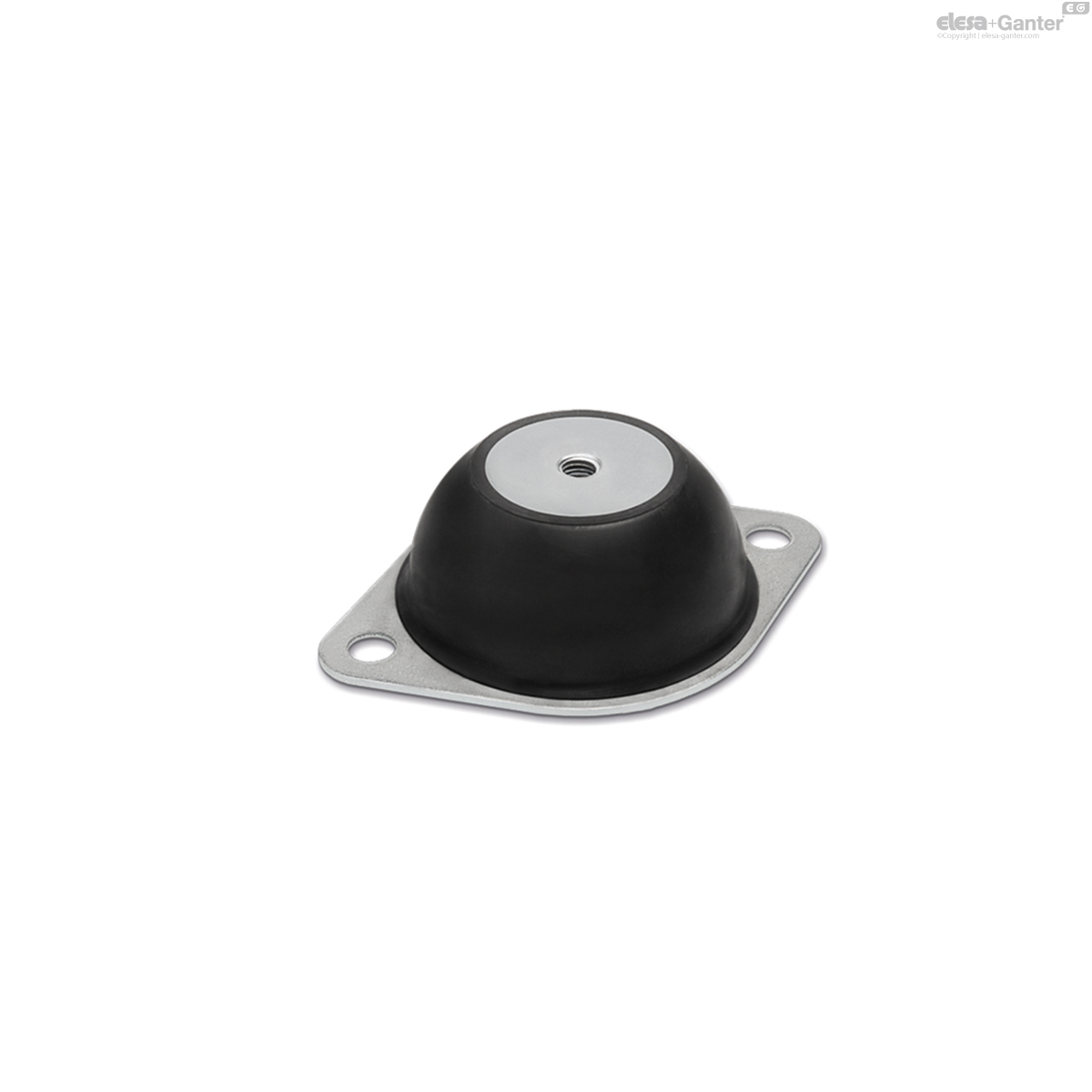

DVE-A
Trillingsdempers Stelvoeten
Rubber en staal of roestvast staal
DVG
Trillingsdempende elementen
voor wand- of plafondmontage, rubber en staal
DVI
Trillingsdempende elementen
voor wandmontage, rubber en staal

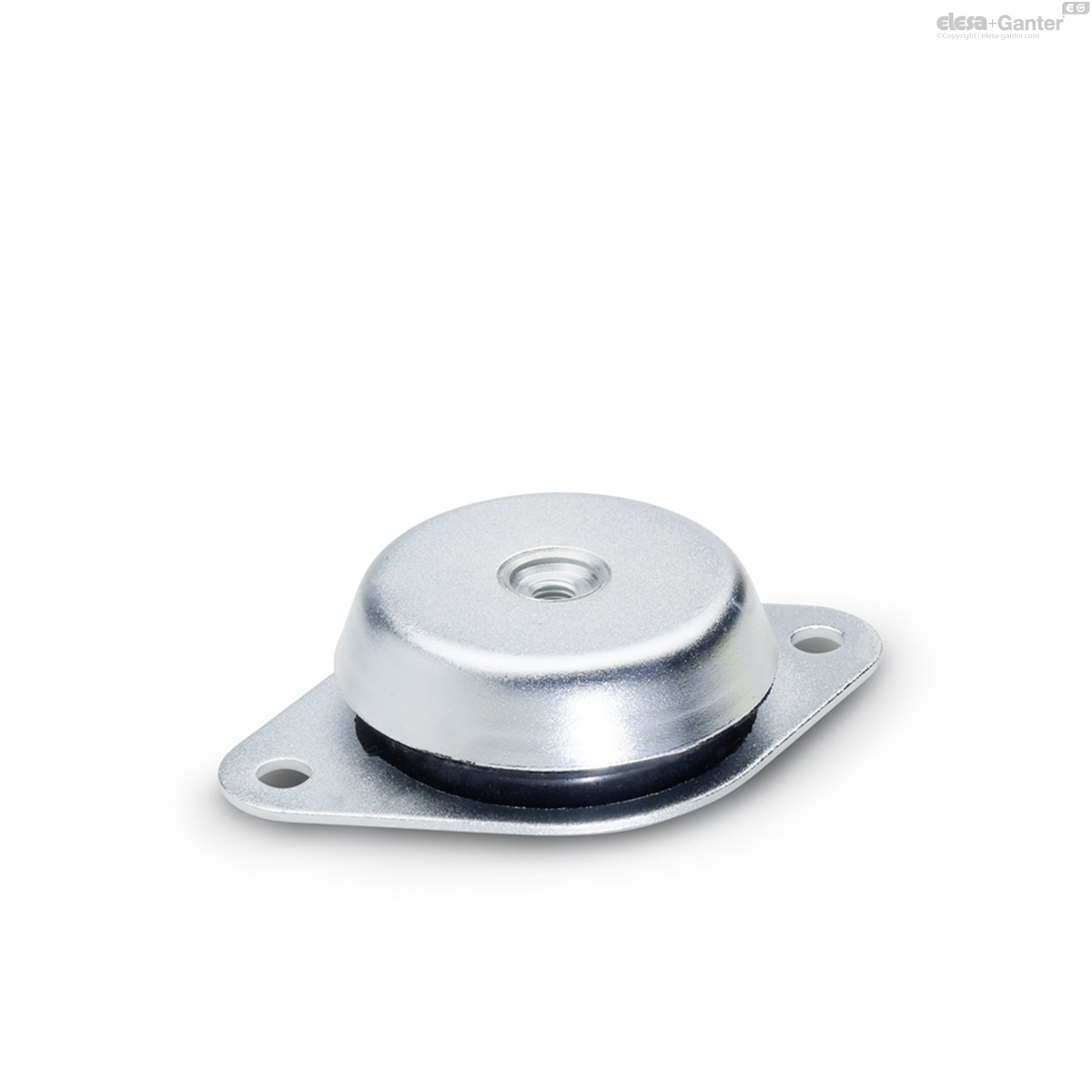

GN 148-A
Machinevoet
met dempingselement
GN 454
Stootbuffers
Borgringen, roestvrij staal

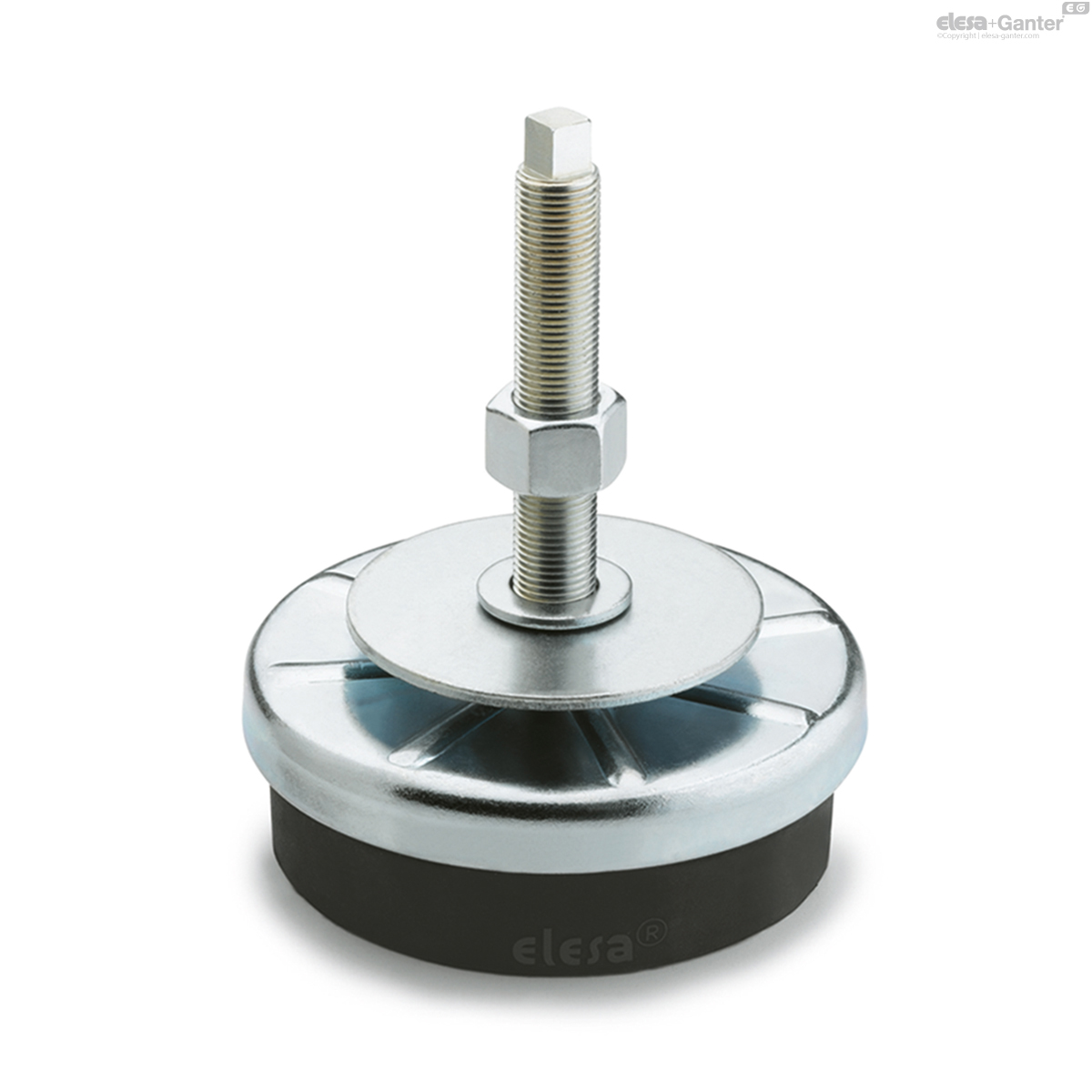

LW.A
