DIN 462Borgplaten

Borgplaten

voor borgmoeren met sleuf DIN 1804, staal

  • Icons/__logo__RoHS__.png
pdf Other documents
Borgplaten
Borgplaten

DIN 462

Code
d1 H11
a H11
b1 c11
b2 H11
d2 h11
h
s
t max.
For Slotted Locknuts DIN 1804
8
5.9
3
3
20
2.5
0.8
5.8
M 8 x 1
2
10
7.4
4
4
25
3
0.8
7.3
M 10 x 1
3
12
9.3
5
5
28
3
0.8
9.2
M 12 x 1.5
4
14
11.4
5
5
30
3
0.8
11.3
M 14 x 1.5
3
16
13.5
5
5
32
3
1
13.4
M 16 x 1.5
4
18
15.4
6
6
34
4
1
15.3
M 18 x 1.5
4
20
17.5
6
6
36
4
1
17.4
M 20 x 1.5
4
22
19.5
6
6
40
4
1
19.4
M 22 x 1.5
5
24
21.6
6
6
42
4
1
21.5
M 24 x 1.5
7
26
23.5
7
7
45
5
1
23.4
M 26 x 1.5
7
28
25.5
7
7
50
5
1
25.4
M 28 x 1.5
8
30
27.5
7
7
50
5
1.2
27.4
M 30 x 1.5
8
32
29.6
7
7
52
5
1.2
29.5
M 32 x 1.5
9
35
32.3
7
7
55
5
1.2
32.5
M 35 x 1.5
9
38
35.3
8
8
58
5
1.2
35.2
M 38 x 1.5
12
40
37.3
8
8
62
5
1.2
37.5
M 40 x 1.5
14
42
39.3
8
8
62
5
1.2
39.2
M 42 x 1.5
13
45
42.4
8
8
68
5
1.2
42.2
M 45 x 1.5
17
48
45.5
8
8
75
5
1.2
45.2
M 48 x 1.5
21
50
47.4
8
8
75
5
1.2
47.2
M 50 x 1.5
20
52
49.3
10
10
80
6
1.2
49.1
M 52 x 1.5
23
55
52.3
10
10
80
6
1.2
52.1
M 55 x 1.5
22
58
55.3
10
10
90
6
1.5
55.1
M 58 x 1.5
30
60
57.3
10
10
90
6
1.5
57.1
M 60 x 1.5
29

Steel ST

Plain finish

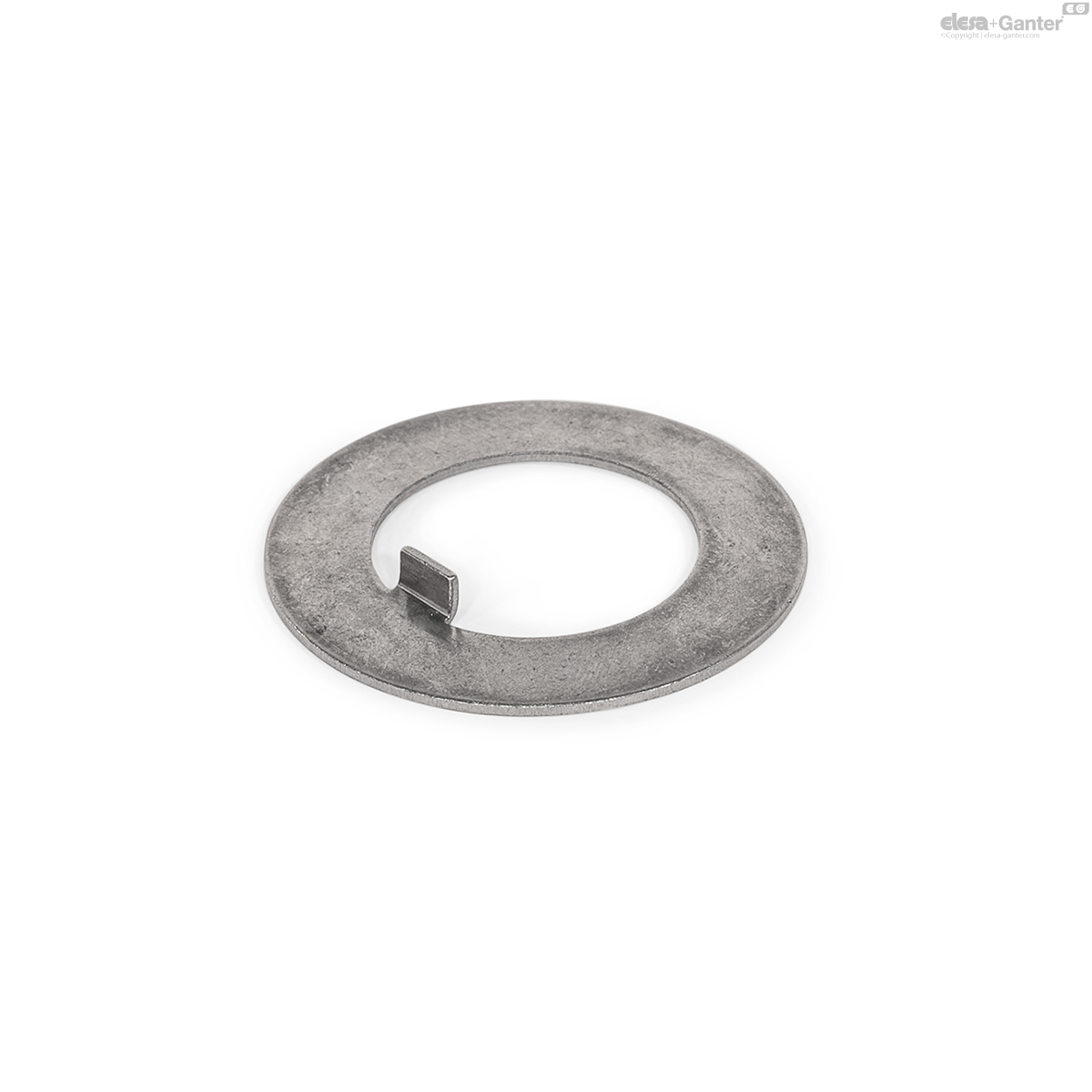

Locking plates DIN 462 secure slotted locknuts DIN 1804 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.

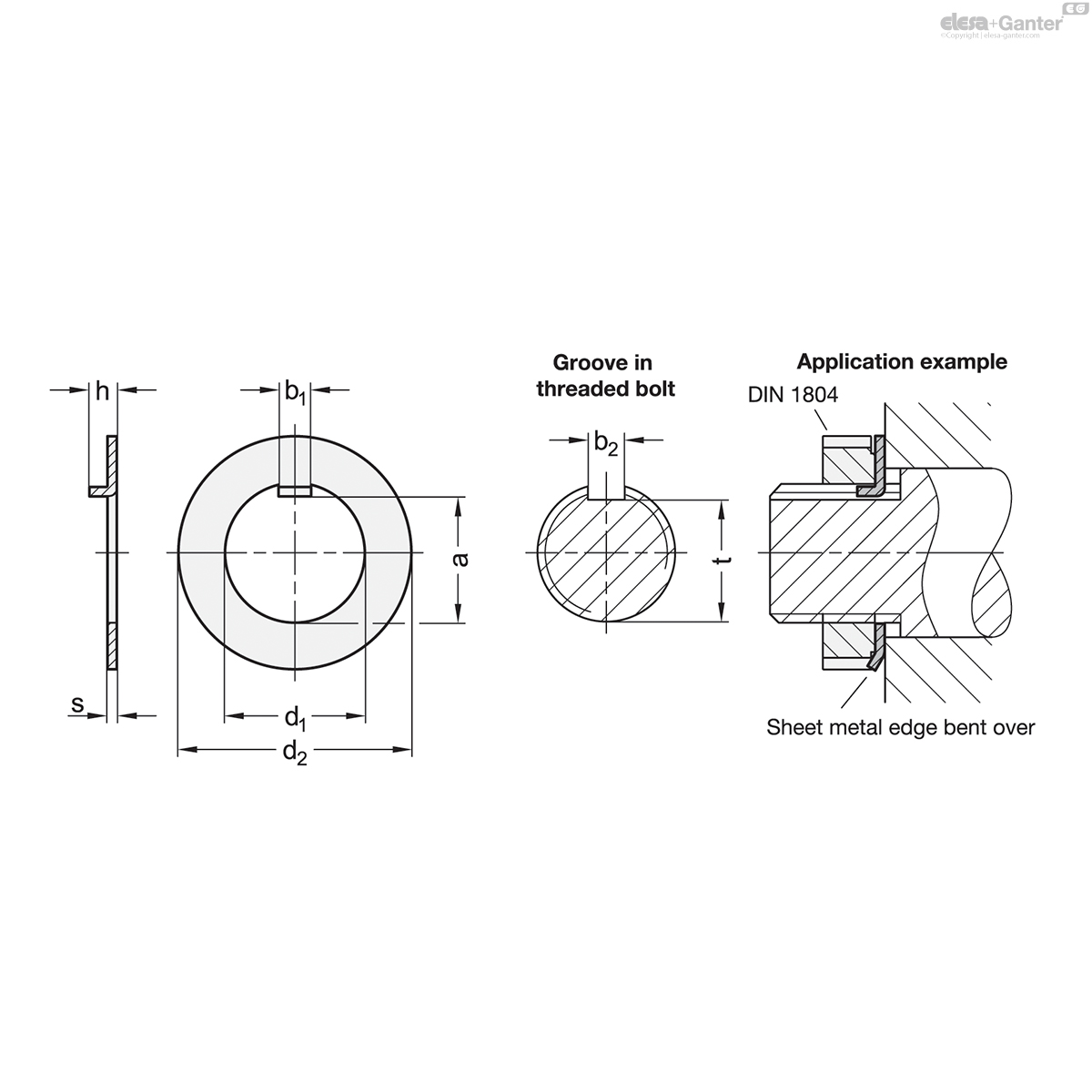

The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, the locking plate is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.

Gerelateerde producten

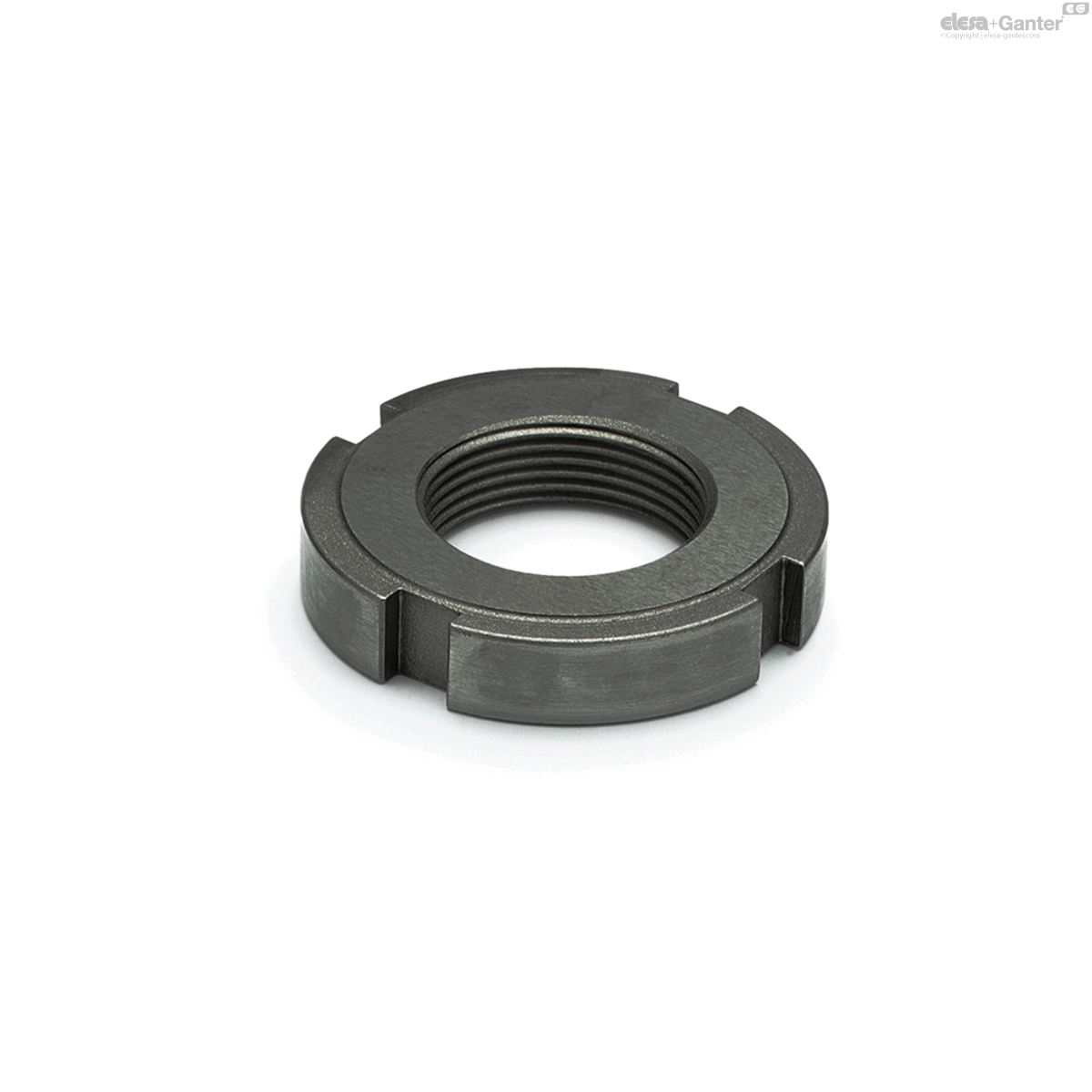

Gesleufde borgmoeren
