Technical datasheet
DCE-SREHexagon head screws
Hexagon head screws
for DCE tube clamps, steel
|
Code
|
Omschrijving
|
d
|
l
|
l1
|
For tube clamp
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
570121
|
DCE-SRE-M6X30-ZN
|
M 6
|
30
|
18
|
DCE-S - DCE-D
|
9
|
|
570123
|
DCE-SRE-M6X35-ZN
|
M 6
|
35
|
18
|
DCE-S - DCE-D
|
10
|
|
570125
|
DCE-SRE-M6X40-ZN
|
M 6
|
40
|
18
|
DCE-S
|
11
|
|
570127
|
DCE-SRE-M6X45-ZN
|
M 6
|
45
|
18
|
DCE-S
|
12
|
|
570129
|
DCE-SRE-M6X60-ZN
|
M 6
|
60
|
18
|
DCE-S
|
15
|
|
570131
|
DCE-SRE-M6X70-ZN
|
M 6
|
70
|
18
|
DCE-S
|
17
|
|
570141
|
DCE-SRE-M8X30-ZN
|
M 8
|
30
|
30
|
DCE-D
|
15
|
|
570143
|
DCE-SRE-M8X35-ZN
|
M 8
|
35
|
22
|
DCE-D
|
17
|
|
570145
|
DCE-SRE-M8X40-ZN
|
M 8
|
40
|
22
|
DCE-D
|
19
|
|
570147
|
DCE-SRE-M8X45-ZN
|
M 8
|
45
|
22
|
DCE-D
|
20
|
|
570149
|
DCE-SRE-M8X50-ZN
|
M 8
|
50
|
22
|
DCE-D
|
22
|
|
570151
|
DCE-SRE-M8X55-ZN
|
M 8
|
55
|
22
|
DCE-D
|
24
|
|
570153
|
DCE-SRE-M8X60-ZN
|
M 8
|
60
|
22
|
DCE-D
|
27
|
|
570161
|
DCE-SRE-M10X45-ZN
|
M 10
|
45
|
26
|
DCE-H
|
36
|
|
570163
|
DCE-SRE-M10X60-ZN
|
M 10
|
60
|
26
|
DCE-H
|
45
|
|
570165
|
DCE-SRE-M10X70-ZN
|
M 10
|
70
|
26
|
DCE-H
|
52
|
|
570171
|
DCE-SRE-M12X100-ZN
|
M 12
|
100
|
30
|
DCE-H
|
98
|
|
570173
|
DCE-SRE-M16X130-ZN
|
M 16
|
130
|
44
|
DCE-H
|
228
|
Material
Zinc-plated steel, class 8.8.
Features and applications
Hexagon head screws (ISO 4014/4017) for fastening the cover plates to the half clamps.
Gerelateerde producten
NEW

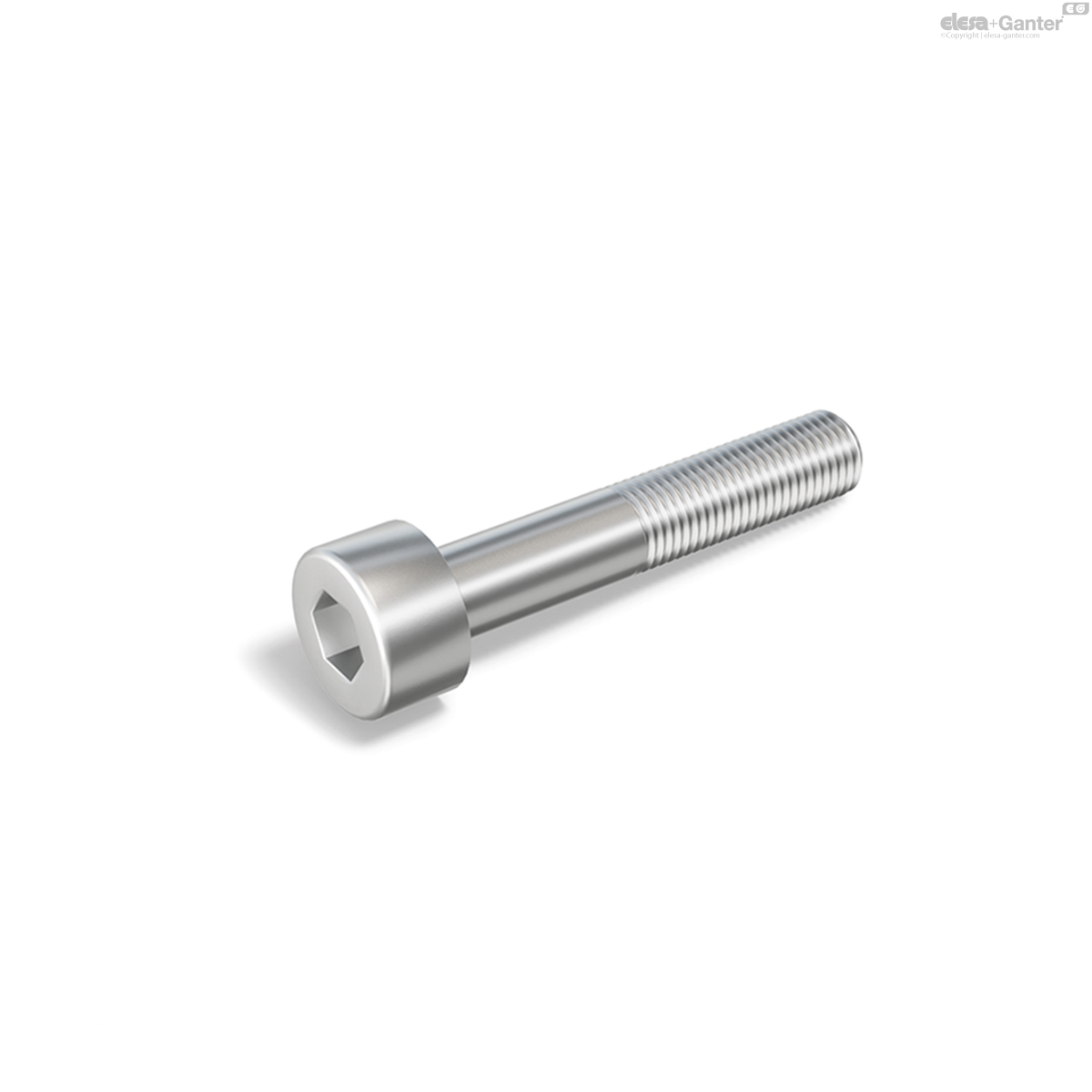

DCE-SRC
