Technical datasheet

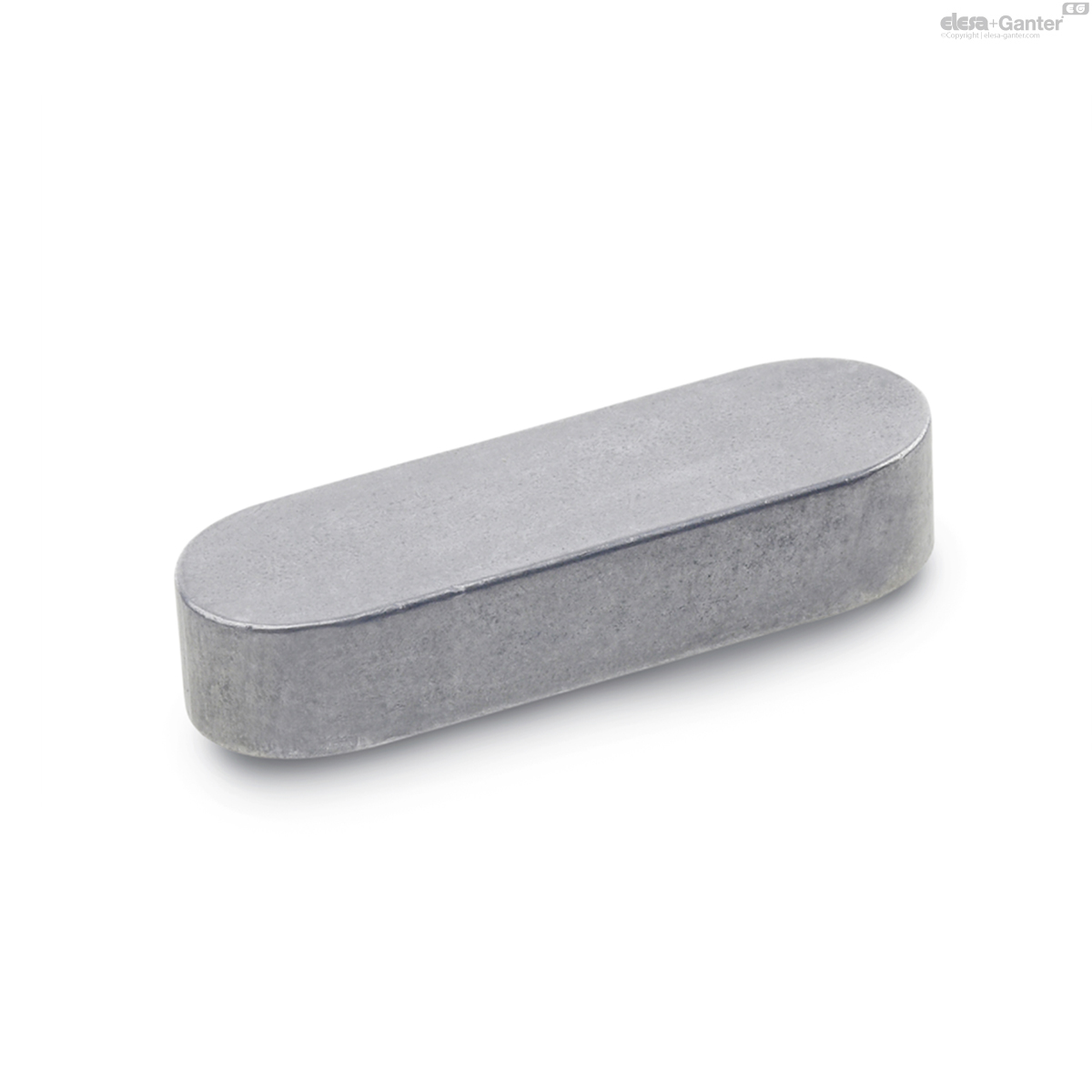

DIN 6885-NIPasveren
Roestvrij staal
Staal / RVS
|

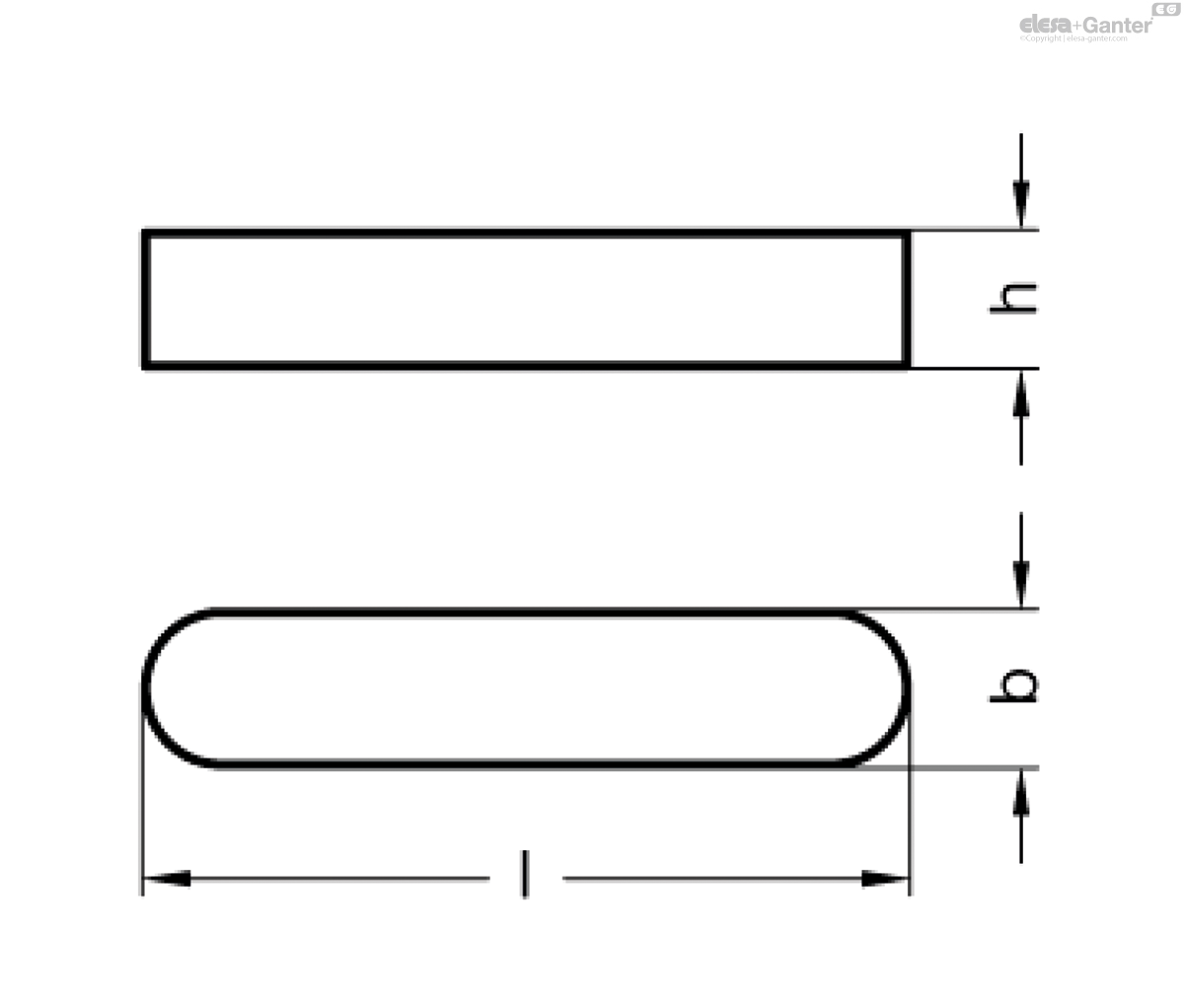

Code
|
b h9
|
h
|
l
|
For shaft-ø
from…to |
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
DIN 6885-3-3-6-A-NI
|
3
|
3
|
6
|
8...10
|
1
|
|
DIN 6885-3-3-8-A-NI
|
3
|
3
|
8
|
8...10
|
1
|
|
DIN 6885-3-3-10-A-NI
|
3
|
3
|
10
|
8...10
|
1
|
|
DIN 6885-3-3-12-A-NI
|
3
|
3
|
12
|
8...10
|
2
|
|
DIN 6885-3-3-14-A-NI
|
3
|
3
|
14
|
8...10
|
1
|
|
DIN 6885-3-3-16-A-NI
|
3
|
3
|
16
|
8...10
|
1
|
|
DIN 6885-3-3-18-A-NI
|
3
|
3
|
18
|
8...10
|
1
|
|
DIN 6885-3-3-20-A-NI
|
3
|
3
|
20
|
8...10
|
1
|
|
DIN 6885-4-4-10-A-NI
|
4
|
4
|
10
|
10...12
|
1
|
|
DIN 6885-4-4-12-A-NI
|
4
|
4
|
12
|
10...12
|
2
|
|
DIN 6885-4-4-14-A-NI
|
4
|
4
|
14
|
10...12
|
2
|
|
DIN 6885-4-4-16-A-NI
|
4
|
4
|
16
|
10...12
|
2
|
|
DIN 6885-4-4-18-A-NI
|
4
|
4
|
18
|
10...12
|
2
|
|
DIN 6885-4-4-20-A-NI
|
4
|
4
|
20
|
10...12
|
3
|
|
DIN 6885-4-4-22-A-NI
|
4
|
4
|
22
|
10...12
|
4
|
|
DIN 6885-4-4-25-A-NI
|
4
|
4
|
25
|
10...12
|
3
|
|
DIN 6885-4-4-28-A-NI
|
4
|
4
|
28
|
10...12
|
4
|
|
DIN 6885-4-4-32-A-NI
|
4
|
4
|
32
|
10...12
|
4
|
|
DIN 6885-5-5-10-A-NI
|
5
|
5
|
10
|
12...17
|
2
|
|
DIN 6885-5-5-12-A-NI
|
5
|
5
|
12
|
12...17
|
2
|
|
DIN 6885-5-5-14-A-NI
|
5
|
5
|
14
|
12...17
|
2
|
|
DIN 6885-5-5-16-A-NI
|
5
|
5
|
16
|
12...17
|
3
|
|
DIN 6885-5-5-18-A-NI
|
5
|
5
|
18
|
12...17
|
4
|
|
DIN 6885-5-5-20-A-NI
|
5
|
5
|
20
|
12...17
|
4
|
|
DIN 6885-5-5-22-A-NI
|
5
|
5
|
22
|
12...17
|
4
|
|
DIN 6885-5-5-25-A-NI
|
5
|
5
|
25
|
12...17
|
5
|
|
DIN 6885-5-5-28-A-NI
|
5
|
5
|
28
|
12...17
|
6
|
|
DIN 6885-5-5-32-A-NI
|
5
|
5
|
32
|
12...17
|
6
|
|
DIN 6885-5-5-36-A-NI
|
5
|
5
|
36
|
12...17
|
7
|
|
DIN 6885-5-5-40-A-NI
|
5
|
5
|
40
|
12...17
|
8
|
|
DIN 6885-5-5-45-A-NI
|
5
|
5
|
45
|
12...17
|
9
|
|
DIN 6885-5-5-50-A-NI
|
5
|
5
|
50
|
12...17
|
10
|
|
DIN 6885-6-6-14-A-NI
|
6
|
6
|
14
|
17...22
|
4
|
|
DIN 6885-6-6-16-A-NI
|
6
|
6
|
16
|
17...22
|
5
|
|
DIN 6885-6-6-18-A-NI
|
6
|
6
|
18
|
17...22
|
5
|
|
DIN 6885-6-6-20-A-NI
|
6
|
6
|
20
|
17...22
|
6
|
|
DIN 6885-6-6-22-A-NI
|
6
|
6
|
22
|
17...22
|
6
|
|
DIN 6885-6-6-25-A-NI
|
6
|
6
|
25
|
17...22
|
7
|
|
DIN 6885-6-6-28-A-NI
|
6
|
6
|
28
|
17...22
|
8
|
|
DIN 6885-6-6-32-A-NI
|
6
|
6
|
32
|
17...22
|
9
|
|
DIN 6885-6-6-36-A-NI
|
6
|
6
|
36
|
17...22
|
11
|
|
DIN 6885-6-6-40-A-NI
|
6
|
6
|
40
|
17...22
|
11
|
|
DIN 6885-6-6-45-A-NI
|
6
|
6
|
45
|
17...22
|
1
|
|
DIN 6885-6-6-50-A-NI
|
6
|
6
|
50
|
17...22
|
14
|
|
DIN 6885-6-6-56-A-NI
|
6
|
6
|
56
|
17...22
|
16
|
|
DIN 6885-6-6-63-A-NI
|
6
|
6
|
63
|
17...22
|
18
|
|
DIN 6885-8-7-16-A-NI
|
8
|
7
|
16
|
22...30
|
7
|
|
DIN 6885-8-7-18-A-NI
|
8
|
7
|
18
|
22...30
|
8
|
|
DIN 6885-8-7-20-A-NI
|
8
|
7
|
20
|
22...30
|
9
|
|
DIN 6885-8-7-22-A-NI
|
8
|
7
|
22
|
22...30
|
10
|
|
DIN 6885-8-7-24-A-NI
|
8
|
7
|
24
|
22...30
|
11
|
|
DIN 6885-8-7-25-A-NI
|
8
|
7
|
25
|
22...30
|
11
|
|
DIN 6885-8-7-28-A-NI
|
8
|
7
|
28
|
22...30
|
12
|
|
DIN 6885-8-7-32-A-NI
|
8
|
7
|
32
|
22...30
|
14
|
|
DIN 6885-8-7-36-A-NI
|
8
|
7
|
36
|
22...30
|
16
|
|
DIN 6885-8-7-40-A-NI
|
8
|
7
|
40
|
22...30
|
15
|
|
DIN 6885-8-7-45-A-NI
|
8
|
7
|
45
|
22...30
|
20
|
|
DIN 6885-8-7-50-A-NI
|
8
|
7
|
50
|
22...30
|
22
|
|
DIN 6885-8-7-56-A-NI
|
8
|
7
|
56
|
22...30
|
25
|
|
DIN 6885-8-7-63-A-NI
|
8
|
7
|
63
|
22...30
|
28
|
|
DIN 6885-10-8-20-A-NI
|
10
|
8
|
20
|
30...38
|
13
|
|
DIN 6885-10-8-22-A-NI
|
10
|
8
|
22
|
30...38
|
14
|
|
DIN 6885-10-8-25-A-NI
|
10
|
8
|
25
|
30...38
|
16
|
|
DIN 6885-10-8-28-A-NI
|
10
|
8
|
28
|
30...38
|
18
|
|
DIN 6885-10-8-32-A-NI
|
10
|
8
|
32
|
30...38
|
20
|
|
DIN 6885-10-8-36-A-NI
|
10
|
8
|
36
|
30...38
|
22
|
|
DIN 6885-10-8-40-A-NI
|
10
|
8
|
40
|
30...38
|
25
|
|
DIN 6885-10-8-45-A-NI
|
10
|
8
|
45
|
30...38
|
28
|
|
DIN 6885-10-8-50-A-NI
|
10
|
8
|
50
|
30...38
|
31
|
|
DIN 6885-10-8-56-A-NI
|
10
|
8
|
56
|
30...38
|
35
|
|
DIN 6885-10-8-63-A-NI
|
10
|
8
|
63
|
30...38
|
40
|
|
DIN 6885-10-8-70-A-NI
|
10
|
8
|
70
|
30...38
|
44
|
|
DIN 6885-10-8-80-A-NI
|
10
|
8
|
80
|
30...38
|
50
|
|
DIN 6885-10-8-90-A-NI
|
10
|
8
|
90
|
30...38
|
57
|
|
DIN 6885-12-8-25-A-NI
|
12
|
8
|
25
|
38...44
|
18
|
|
DIN 6885-12-8-28-A-NI
|
12
|
8
|
28
|
38...44
|
21
|
|
DIN 6885-12-8-32-A-NI
|
12
|
8
|
32
|
38...44
|
24
|
|
DIN 6885-12-8-36-A-NI
|
12
|
8
|
36
|
38...44
|
27
|
|
DIN 6885-12-8-40-A-NI
|
12
|
8
|
40
|
38...44
|
20
|
|
DIN 6885-12-8-45-A-NI
|
12
|
8
|
45
|
38...44
|
34
|
|
DIN 6885-12-8-50-A-NI
|
12
|
8
|
50
|
38...44
|
38
|
|
DIN 6885-12-8-56-A-NI
|
12
|
8
|
56
|
38...44
|
42
|
|
DIN 6885-12-8-63-A-NI
|
12
|
8
|
63
|
38...44
|
48
|
|
DIN 6885-12-8-70-A-NI
|
12
|
8
|
70
|
38...44
|
53
|
|
DIN 6885-12-8-80-A-NI
|
12
|
8
|
80
|
38...44
|
60
|
|
DIN 6885-12-8-90-A-NI
|
12
|
8
|
90
|
38...44
|
68
|
|
DIN 6885-12-8-100-A-NI
|
12
|
8
|
100
|
38...44
|
75
|
Type
- Type A: front rounded, long version
Version in Steel
Steel C45+C
blank
Version in Stainless Steel
Stainless Steel AISI 316Ti NI
Feather keys DIN 6885 are only in packing units of 50 pieces for each size and length available.
Stainless Steel-Feather keys DIN 6885 are only in packing units of 10 pieces for each size and length available.
- b = 14, 16, 18, 20
