DIN 6371Klemmende C-vormige sluitring
Klemmende C-vormige sluitring
DIN 6371
|

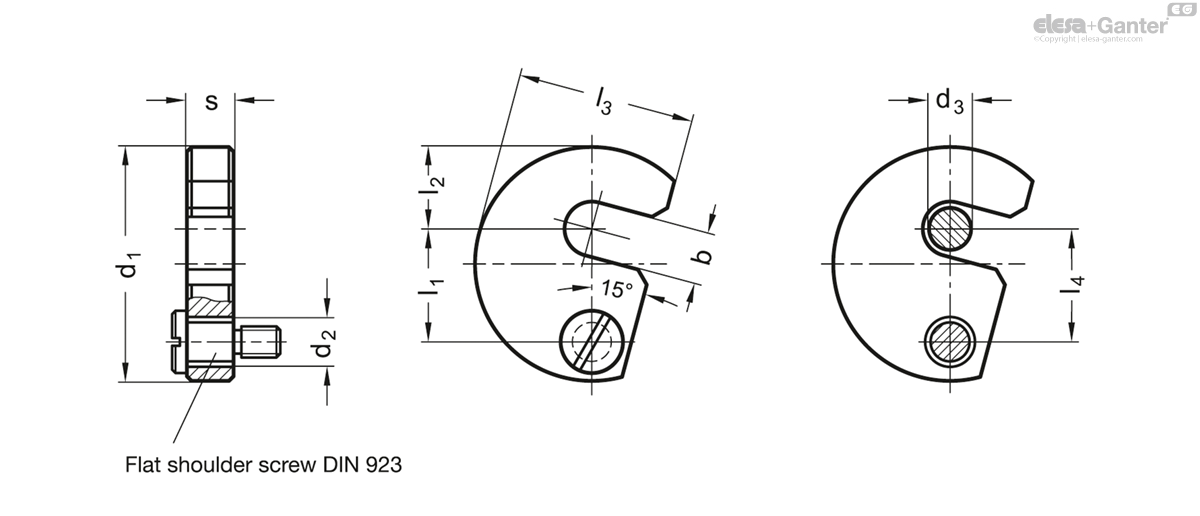

Code
|
d1
|
b
|
d2
|
d3
|
l1
|
l2
|
l3
|
l4
|
s -0.5
|
Screw DIN 923
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
38
|
7.5
|
9
|
6
|
19.6
|
11
|
29
|
19
|
9.8
|
M 6 x 10
|
64
| ||
|
43
|
9.5
|
9
|
8
|
21.6
|
14
|
32.5
|
21
|
9.8
|
M 6 x 10
|
80
| ||
|
48
|
11,5
|
9
|
10
|
23.6
|
17
|
36.5
|
23
|
9.8
|
M 6 x 10
|
99
| ||
|
61
|
13.5
|
11
|
12
|
29.6
|
22
|
45
|
29
|
11.8
|
M 8 x 12
|
189
| ||
|
68
|
17.5
|
11
|
16
|
33.6
|
25
|
50
|
33
|
11.8
|
M 8 x 12
|
226
| ||
|
74
|
21.5
|
11
|
20
|
36.6
|
28
|
55
|
36
|
11.8
|
M 8 x 12
|
262
| ||
|
82
|
25.5
|
11
|
24
|
40.6
|
32
|
62
|
40
|
15.8
|
M 8 x 16
|
423
| ||
|
97
|
32
|
11
|
30
|
49
|
39
|
73
|
48
|
15.8
|
M 8 x 16
|
560
|
Steel
- tempered
- blackened
Flat shoulder screw DIN 923
blackened

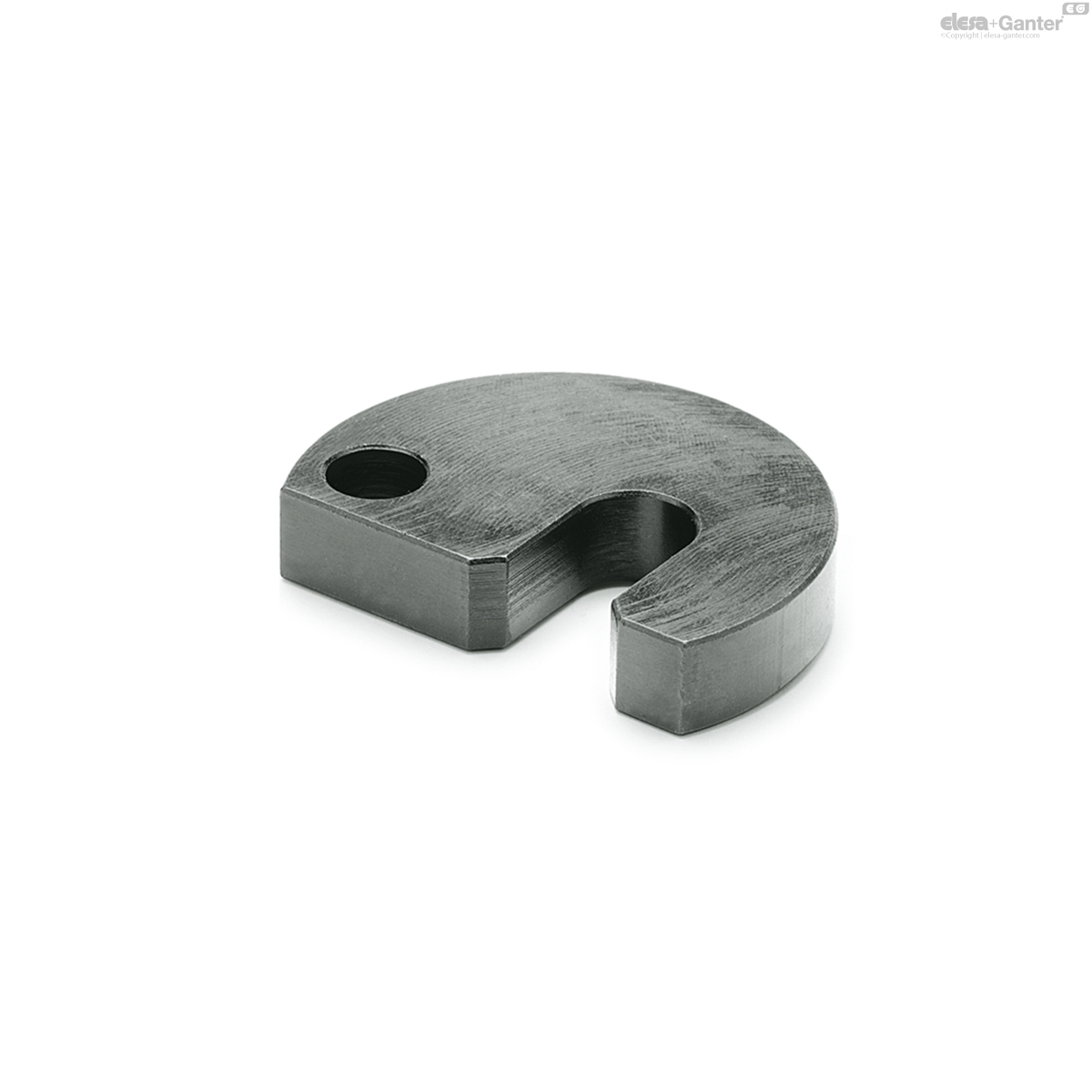

Captive C-Washers DIN 6371 transfer the clamping force of screw or nut to the workpiece. After releasing the thread they can be swung away from the clamping point. They are hinged and thus can never be mislaid.
Flat shoulder screws DIN 923 are included.
