DIN 6330-NIZeskantmoeren
Roestvrij staal
Staal/roestvrij staal, kogelvormige zitting
|
Code
|
d1
|
d2 H14
|
e min.
|
m
|
A/F
|
r
|
|
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
DIN 6330-M8-B-NI
|
M 8
|
9
|
14.4
|
12
|
13
|
11
|
9
|
|
DIN 6330-M10-B-NI
|
M 10
|
11.5
|
17.8
|
15
|
16
|
15
|
9
|
|
DIN 6330-M12-B-NI
|
M 12
|
14
|
20
|
18
|
18
|
17
|
29
|
|
DIN 6330-M14-B-NI
|
M 14
|
16
|
24.6
|
21
|
22
|
20
|
32
|
|
DIN 6330-M16-B-NI
|
M 16
|
18
|
26.8
|
24
|
24
|
22
|
60
|
|
DIN 6330-M20-B-NI
|
M 20
|
22
|
33.5
|
30
|
30
|
27
|
114
|
Type
- Type B: with one-sided spherical seating

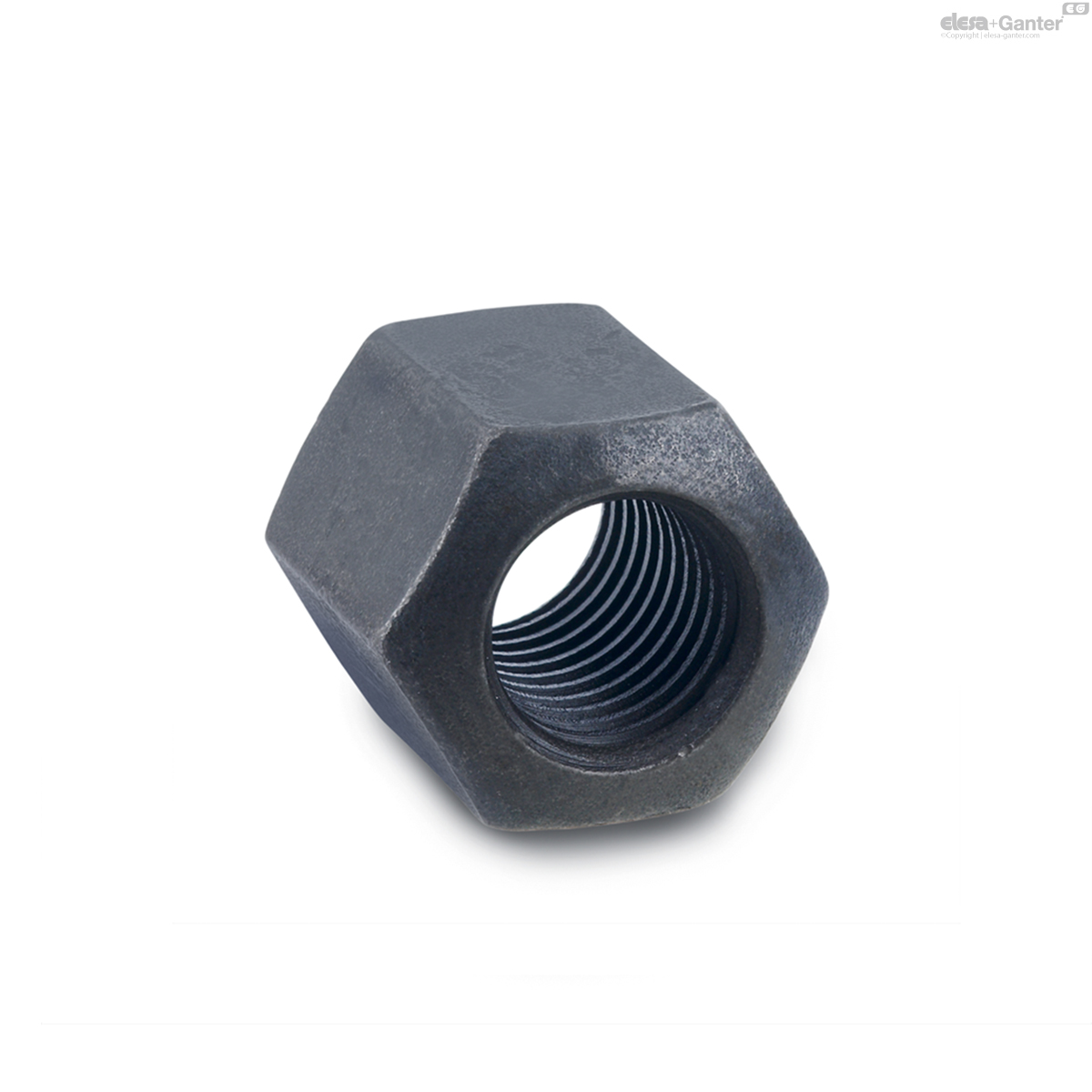

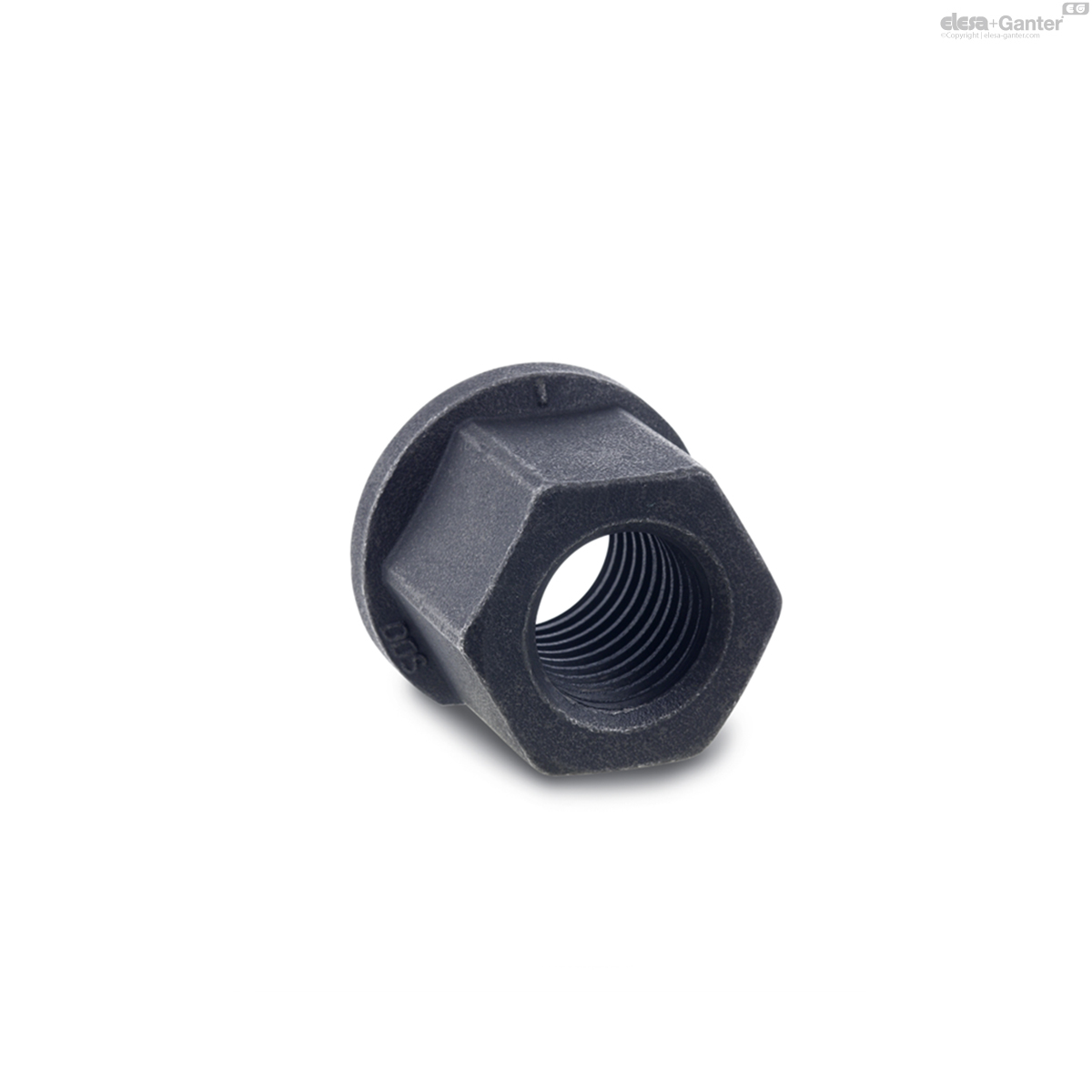

Version in Steel
Steel
- Tensile strength class 10
- blackened
Version in Stainless Steel

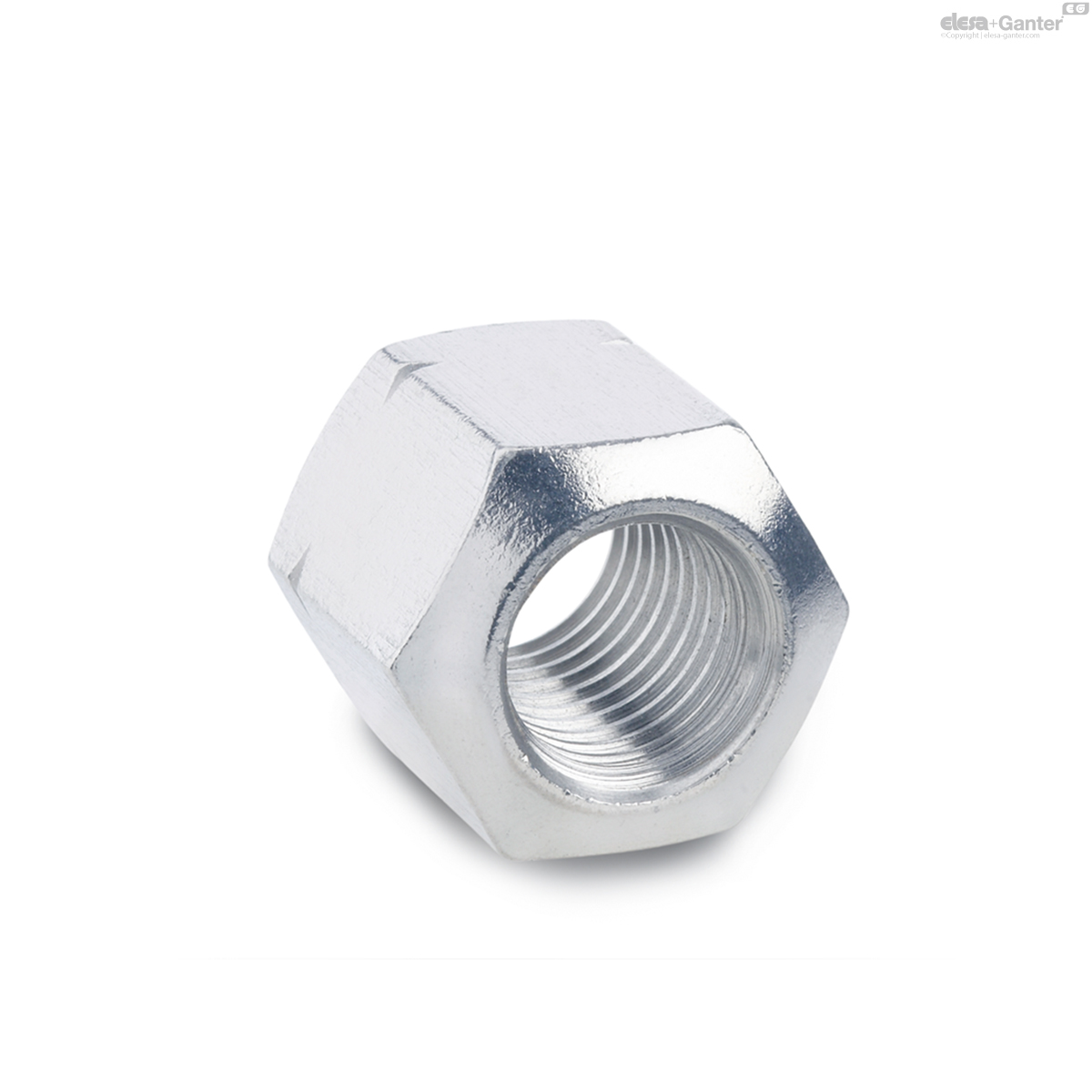

Stainless Steel AISI 303 NI
Hexagon nuts DIN 6330 are used on clamping, applications which require frequent clamping and unclamping (m = 1.5 x d1).

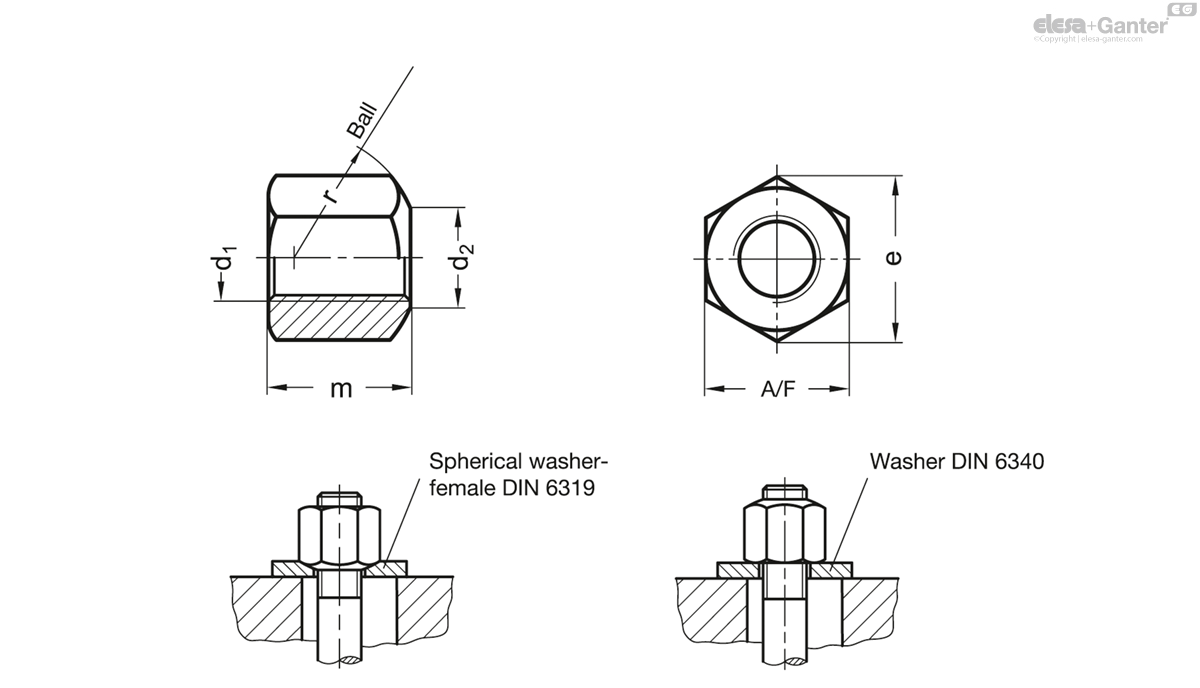

The spherical seating together with female washers DIN 6319 allows excessive positional inaccuracies to be equalized.
