Technical datasheet

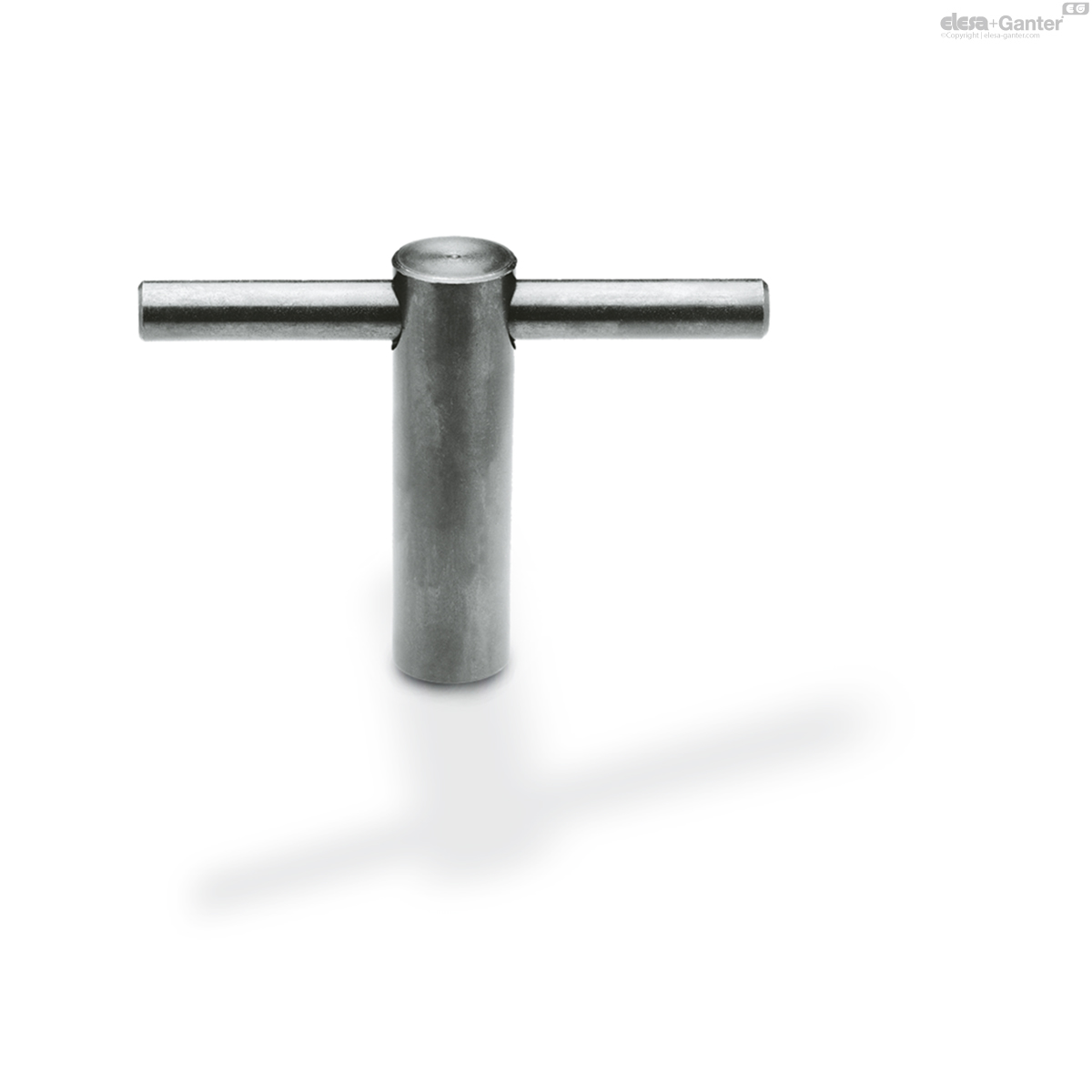

DIN 6305Knevelmoeren
Knevelmoeren
met starre grendel
DIN 6305
|

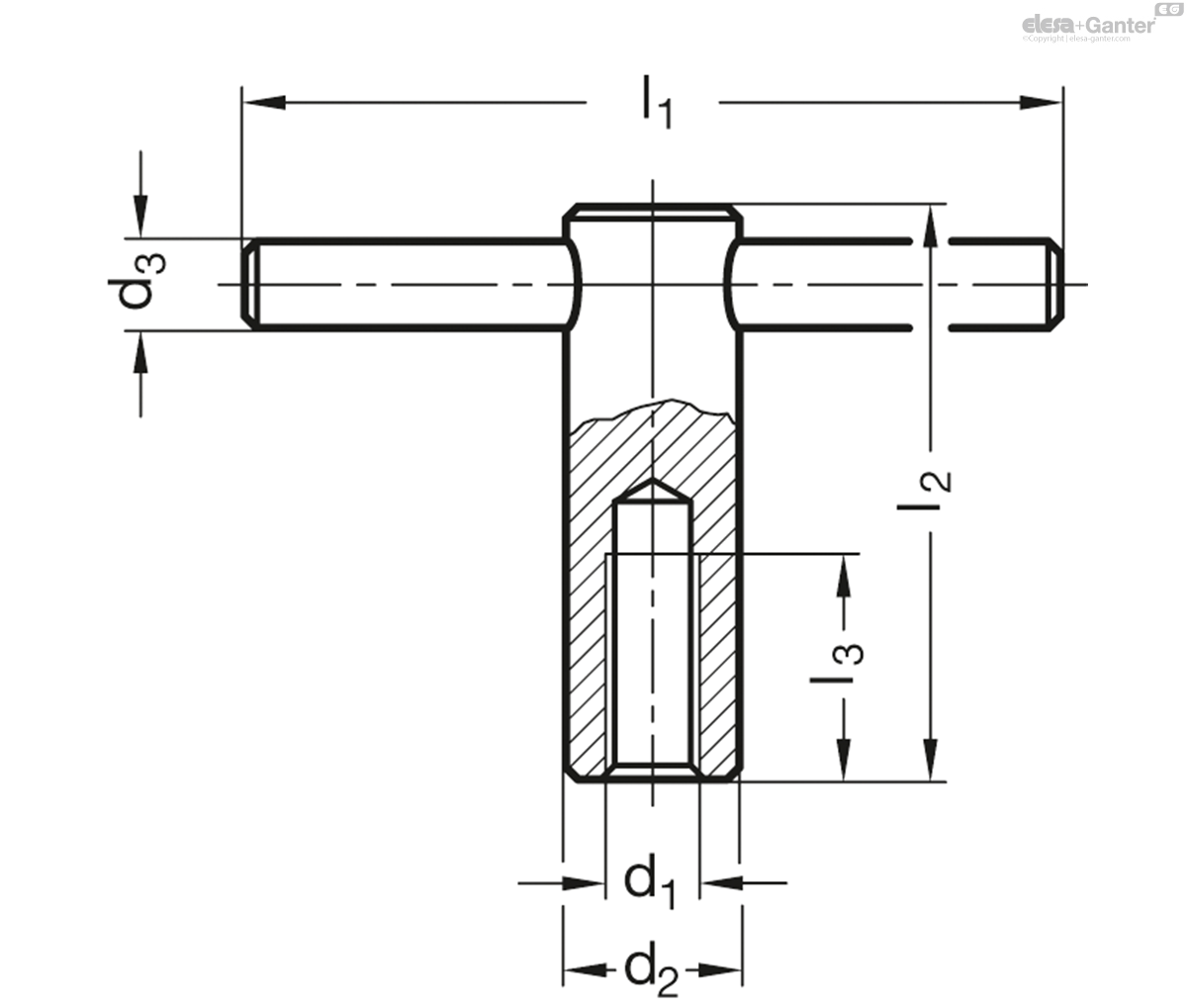

Code
|
d1
|
d2
|
d3
|
l1
|
l2
|
l3 min.
|
|
|
|---|---|---|---|---|---|---|---|---|
|
M 10
|
18
|
8
|
80
|
60
|
20
|
129
| ||
|
M 12
|
20
|
10
|
100
|
70
|
25
|
194
| ||
|
M 16
|
24
|
12
|
120
|
85
|
35
|
322
| ||
|
M 20
|
30
|
16
|
140
|
95
|
40
|
589
|
Steel
Tensile strength class 5
blackened
