Technical datasheet
DIN 466-ZBKartelmoeren
Verzinkt
Staal / Roestvrij staal, Hoog type
|

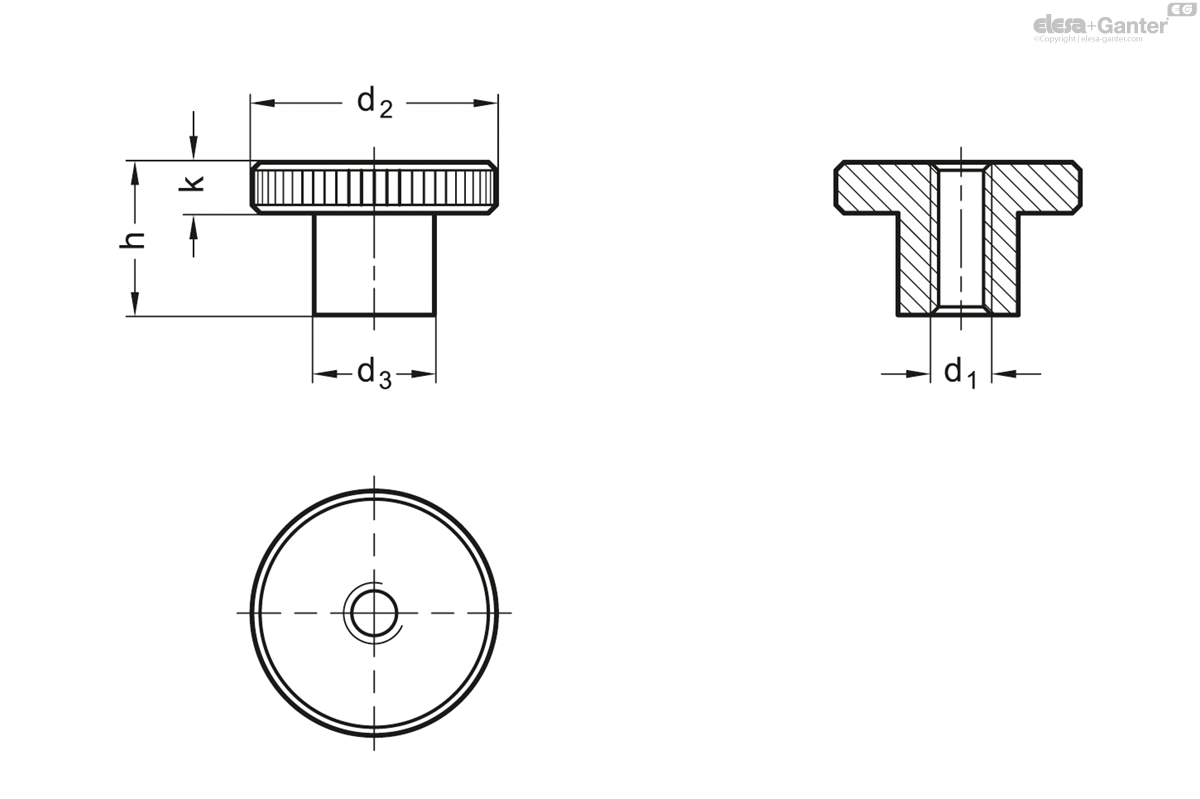

Code
|
d1
|
d2
|
d3
|
h
|
k
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
DIN 466-M2-ZB
|
M 2
|
9
|
4.5
|
5.3
|
2
|
1
|
|
DIN 466-M2,5-ZB
|
M 2.5
|
11
|
5
|
6.5
|
2.5
|
2
|
|
DIN 466-M3-ZB
|
M 3
|
12
|
6
|
7.5
|
2.5
|
3
|
|
DIN 466-M4-ZB
|
M 4
|
16
|
8
|
9.5
|
3.5
|
7
|
|
DIN 466-M5-ZB
|
M 5
|
20
|
10
|
11.5
|
4
|
12
|
|
DIN 466-M6-ZB
|
M 6
|
24
|
12
|
15
|
5
|
22
|
|
DIN 466-M8-ZB
|
M 8
|
30
|
16
|
18
|
6
|
44
|
|
DIN 466-M10-ZB
|
M 10
|
36
|
20
|
23
|
8
|
84
|
|
DIN 466-M12-ZB
|
M 12
|
40
|
22
|
25
|
10
|
119
|
Version in Steel
- Property class 5
- Visible face fine turned
- Blackened
- Zinc plated, blue passivated ZB
Version in Stainless Steel
- AISI 303 NI
- AISI 316L A4
- Matte shot-blasted
Knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
