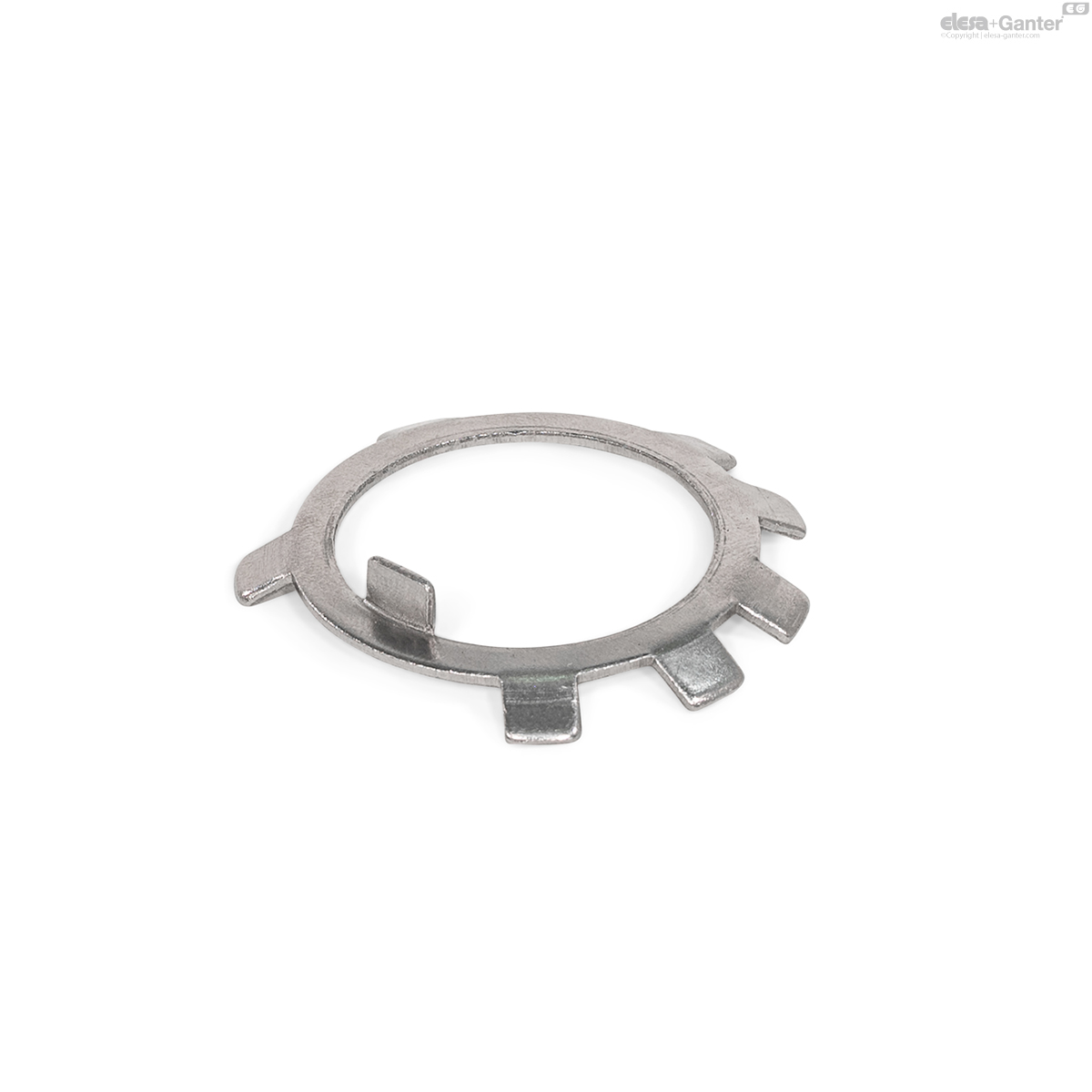

70952-70-A-ST DIN 70952 Borgplaten

70952-70-A-ST

DIN 70952 Borgplaten

voor borgmoeren met sleuf DIN 70852, staal
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 70952

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 70952-70-A-ST
d1
70
a
68.7
b1 h11
10
b2 h11
10
b3 C11
10
d2
81
h
7.5
s
1.5
t -0.1
68
For Slotted Locknuts DIN 70852
M 70 x 1.5
18
70952-70-A-ST drawing

Type

  • Type A: Angled serrations

Steel ST

Plain finish

Locking plates DIN 70952 secure slotted locknuts DIN 70852 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.

The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, a matching locking tab is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
