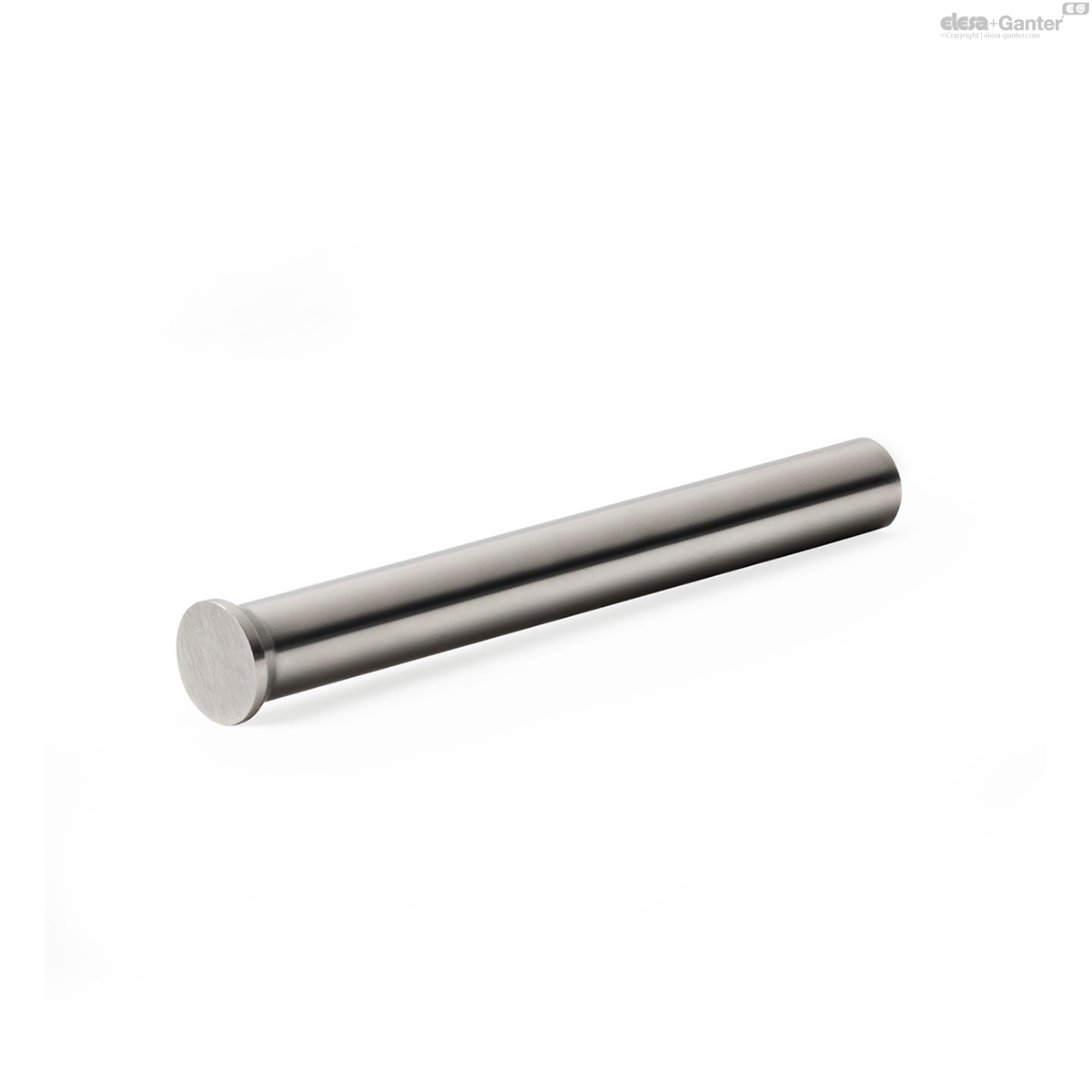

9861-5-80-D-HSS DIN 9861 Stansen

9861-5-80-D-HSS

DIN 9861 Stansen

Staal HSS
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 9861

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 9861-5-80-D-HSS
d1 h6
5
Length l +0.5
80
d2 ±0.2
6.5
h +0.2
1.8
12

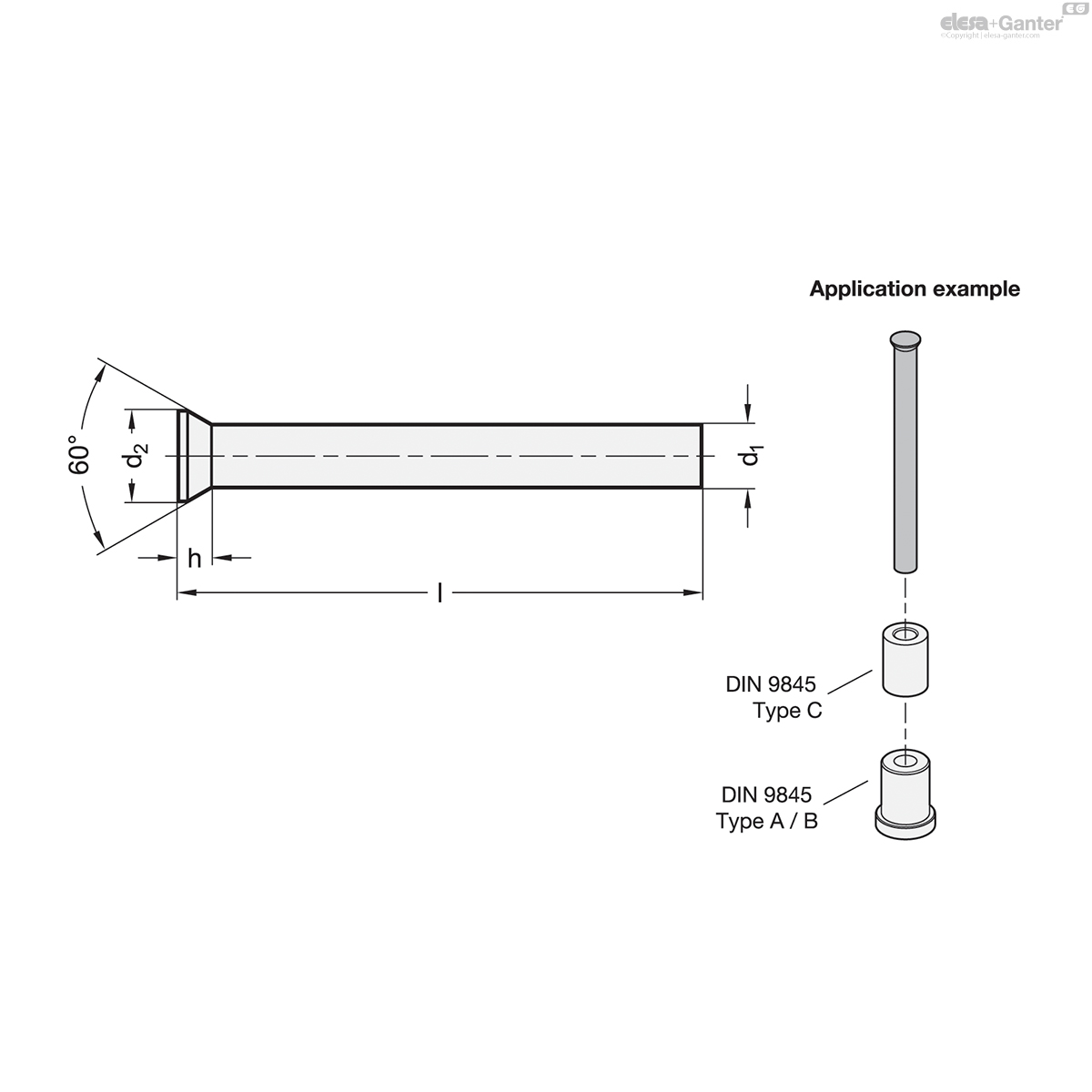

9861-5-80-D-HSS drawing

Type

  • Type D: With conical head

Steel HSS

  • Shaft hardened (HRC 62 +2)
  • Head hardened (HRC 50 +5)

Cutting punches DIN 9861 are used, for example, in combination with cutting bushings DIN 9845 in punching tools. Depending on the application, however, they can also be used as positioning, guide, ejector or embossing pins and can be machined accordingly.

Cutting punches DIN 9861 are characterized by tight shape and position tolerances, a finely machined surface and high wear resistance.

  • DIN 9845 Cutting Bushings / Guide Bushings
  • Other dimensions
