M.643/200 B-M8-AE-V0
M.643-AE-V0 Beugelgrepen
Lt: 1-2 weken Alle maten en varianten van M.643-AE-V0
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

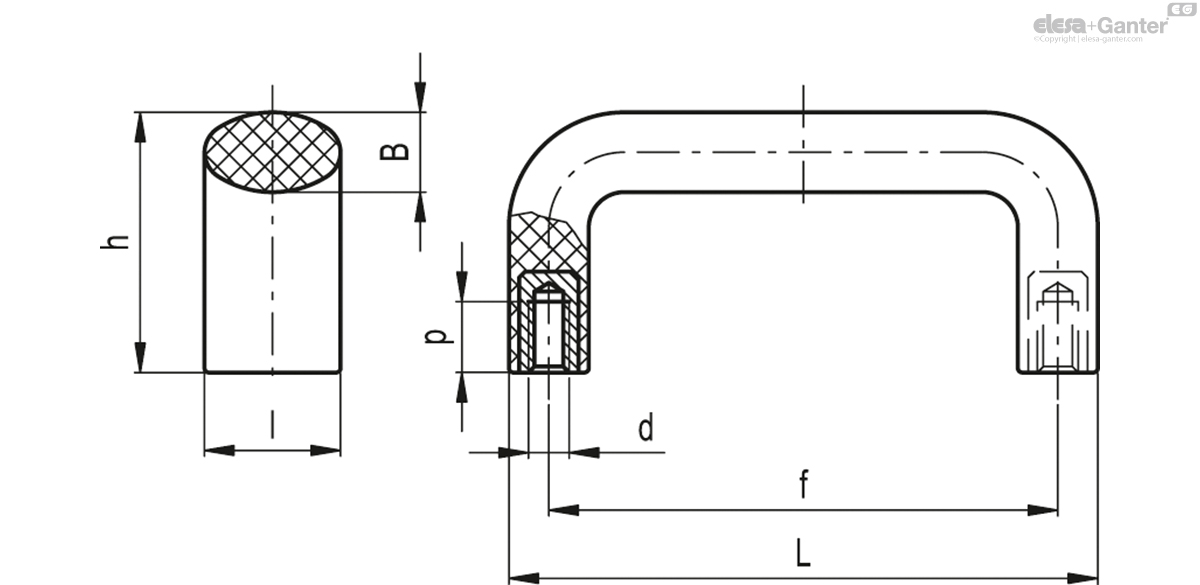

Technische gegevens
- Code
- 150131
- L
- 196
- f
- 179±1
- d6H
- M8
- h
- 57
- B
- 16
- l
- 27
- p
- 13
- F1
[N] - 2500
- F2
[N] - 3000
- L1
[J] - 8
- L2
[J] - 17
- 132
Material
Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0, black colour, matte finish.
Standard execution
Brass bosses, threaded blind holes.
Technical data
The 'V0' certification in accordance with UL-94 V (Underwriters Laboratories) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating any incandescent drops.

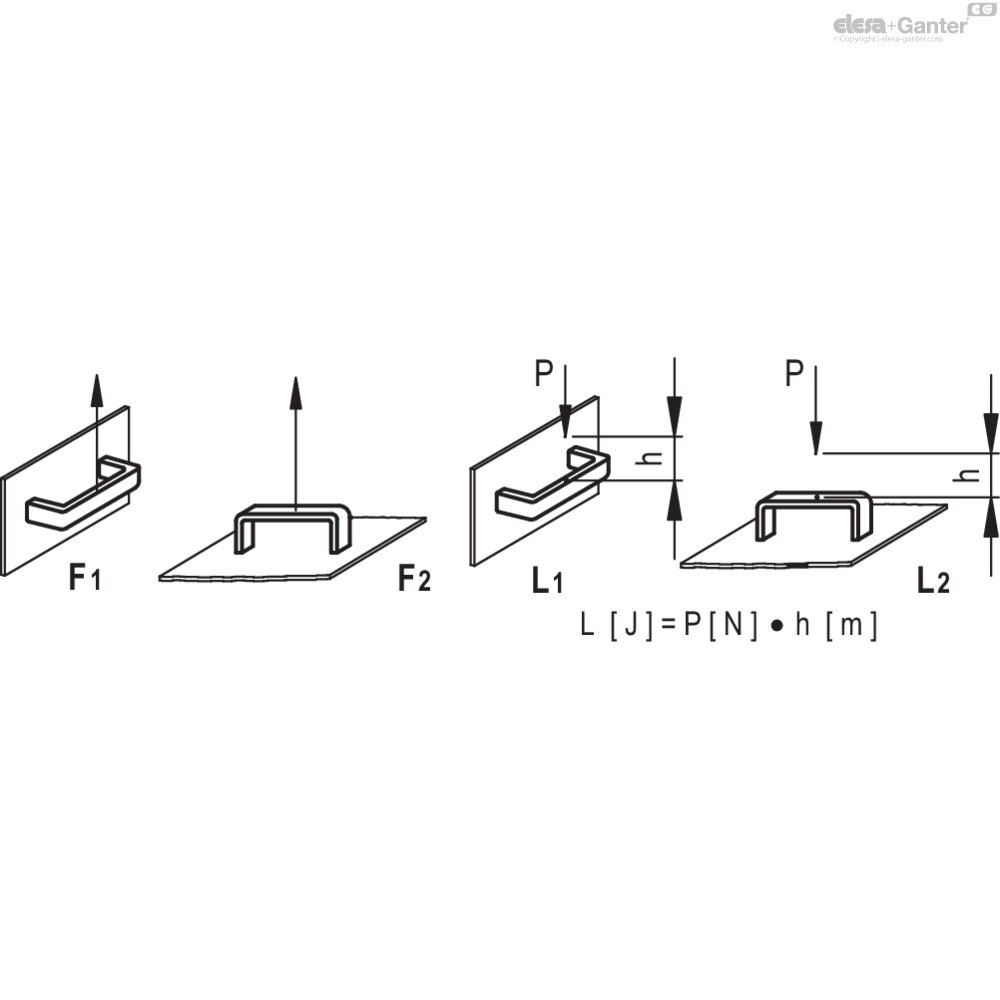

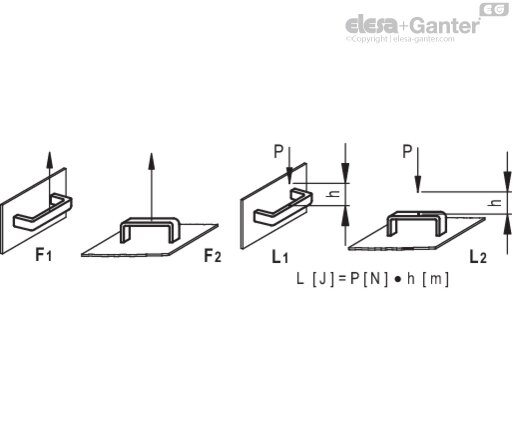

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
