3124-8-6,3-K-AL GN 3124 Bussen

3124-8-6,3-K-AL

GN 3124 Bussen

Aluminium, voor hygiënisch ontwerp Standaardonderdelen
  • Icons/__logo__HD__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 3124

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 3124-8-6,3-K-AL
A/F
For hex size
8
s Nominal size of square driver as per
DIN 3120
6.3
s
corresponds to inch
1/4
d1
19
d2
13
Length l
20
t
11
Max. torque
in Nm
2.5
For screws/nuts
GN 1580
M 5
For screws GN 1581
M 5
For screws GN 1582
M 5
10

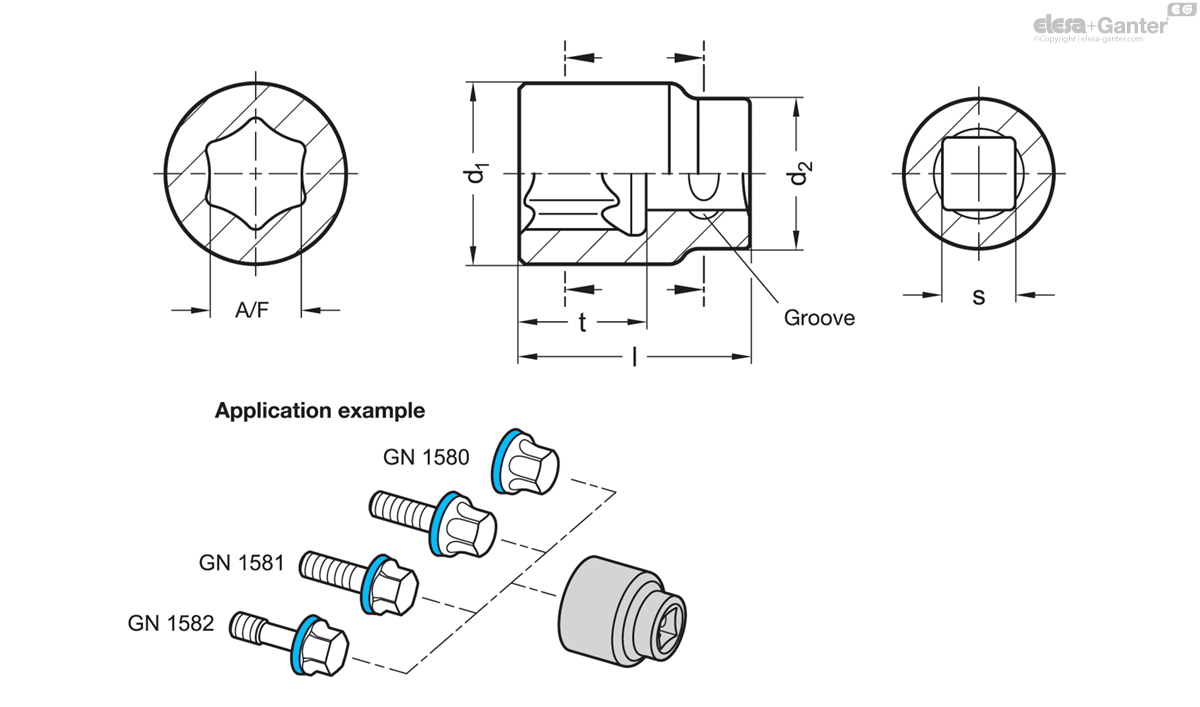

3124-8-6,3-K-AL drawing
video

Coding

  • Coding K: Short version

Aluminum AL

Sockets GN 3124 are used to install the Hygienic Design standard parts listed in the table. In conjunction with the aluminum material used, the rounded hex geometry of the wrench flats transfers the torque to the screw head without causing damage.

If the specified torques are complied with, the socket wrench inserts achieve a long service life. They are driven using commercially available ratchets or reversible ratchets with square drive.
