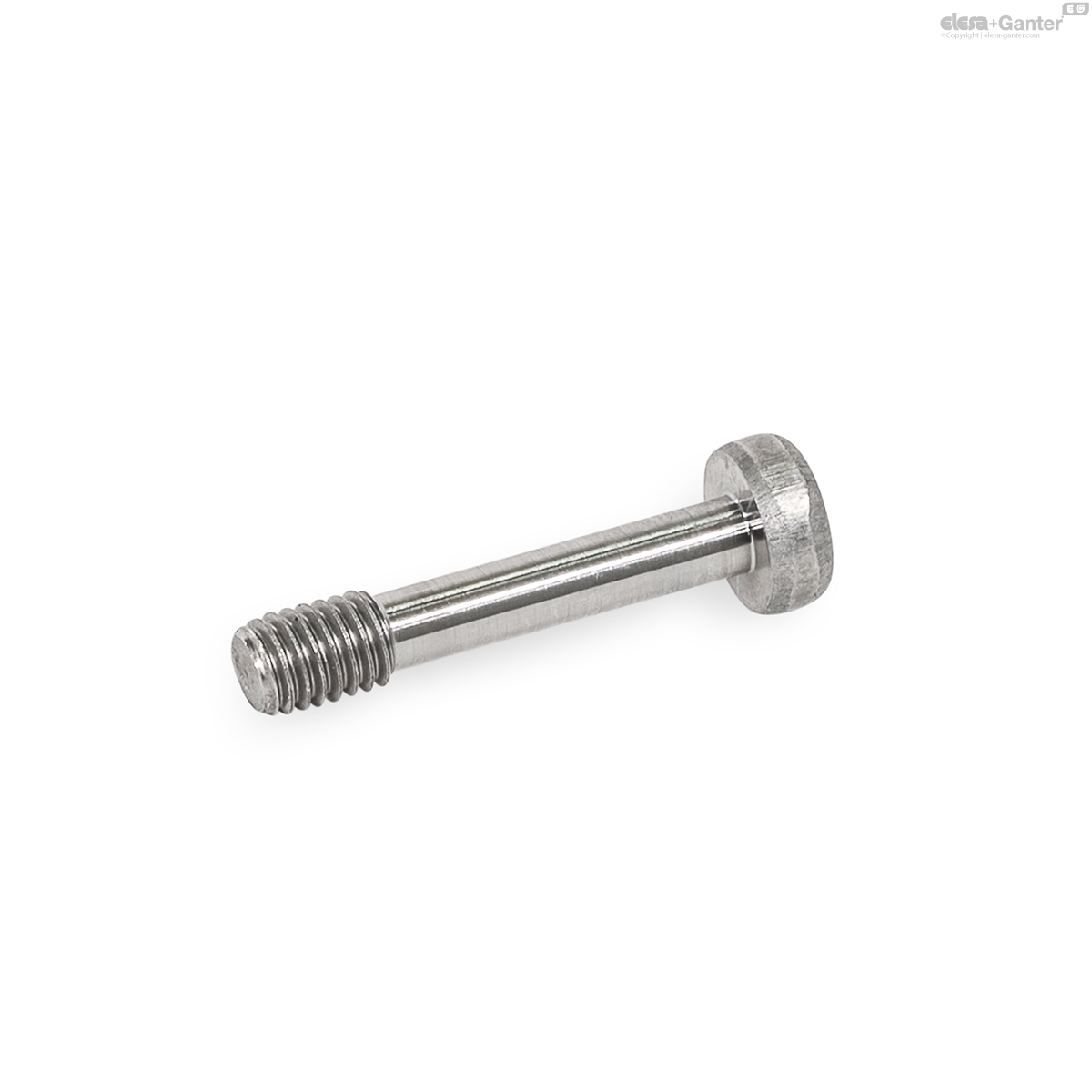

7984.2-M4-16-NI GN 7984.2 Dopschroeven

7984.2-M4-16-NI

GN 7984.2 Dopschroeven

Roestvrij staal, met kop met laag profiel, met verzonken tapeind voor verliesbescherming
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 7984.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 7984.2-M4-16-NI
d1
M 4
l1
16
a1
2-5
a2
5-8
a3
8-11
d2
7
d3 -0.3
3
d4
4.5
k
2.8
l2
5
l3
2
A/F
2.5
2
7984.2-M4-16-NI drawing

Stainless steel AISI 304 NI

Socket cap screws GN 7984.2 have a low-profile head to enable use in areas with limited space.

Due to a recessed stud d3, the screw can be easily secured against loss, for example in a cover. Thus the „captivity of the mounting element“ according to the Machinery Directive 2006 / 42 / EG is given.

For this purpose, instead of a normal through / threaded hole a thread d1 on both sides, if necessary with a corresponding clearance hole d4 must be provided. Depending on the design and required clamping length a1 ... a3 of the cover, there are a number of assembly options as shown.
