7045.2-M4-16-NI GN 7045.2 Schroeven met platte kop

7045.2-M4-16-NI

GN 7045.2 Schroeven met platte kop

Roestvrij staal, met Phillips Drive, met verzonken tapeind voor verliesbescherming
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 7045.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 7045.2-M4-16-NI
d1
M 4
l1
16
a1
2-5
a2
5-8
a3
8-11
d2
7
d3 -0.3
3
d4
4.5
k
2.6
l2
5
l3
2
Phillips drive
PH 2
2

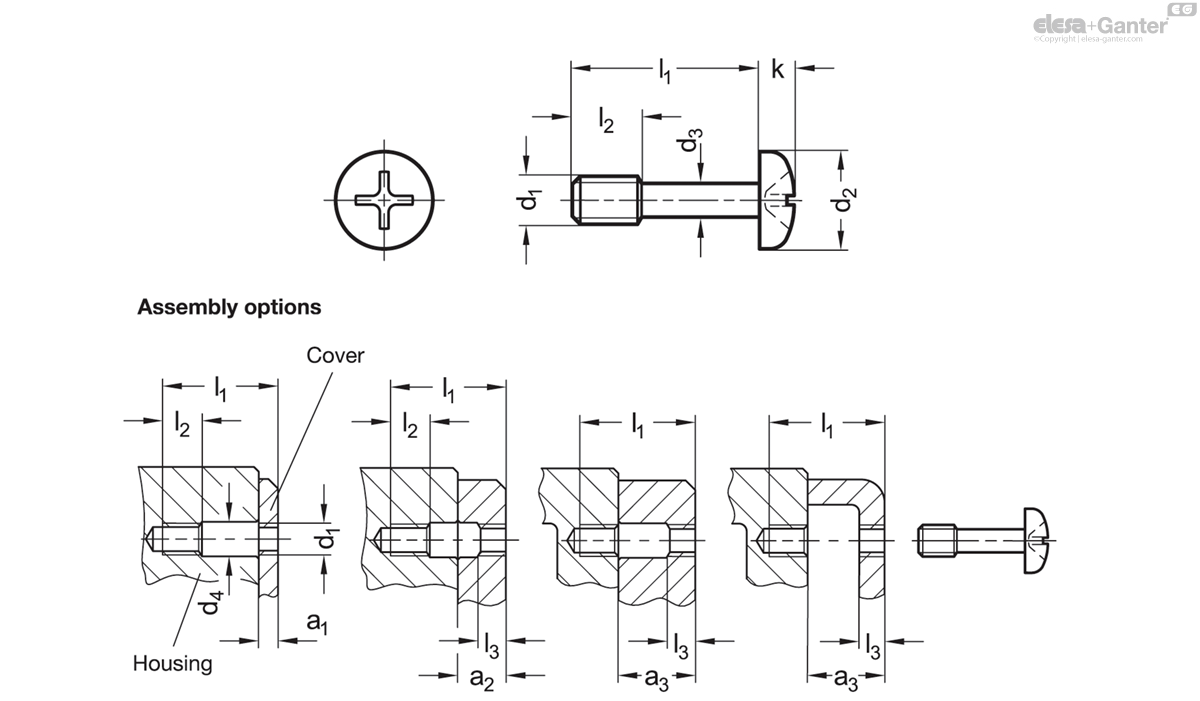

7045.2-M4-16-NI drawing

Stainless steel AISI 304 NI

Pan head screws GN 7045.2 feature a recessed stud d3, making it easy to secure them against loss, such as in a cover.

Thus the „captivity of the mounting element“ according to the Machinery Directive 2006 / 42 / EG is given.

For this purpose, instead of a normal through / threaded hole a thread d1 on both sides, if necessary with a corresponding clearance hole d4 must be provided. Depending on the design and required clamping length a1 ... a3 of the cover, there are a number of assembly options as shown.
