TCC-TP-18-E-C9
TCC-TP-E Buitenvertanding
Lt: 1-2 weken Alle maten en varianten van TCC-TP
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

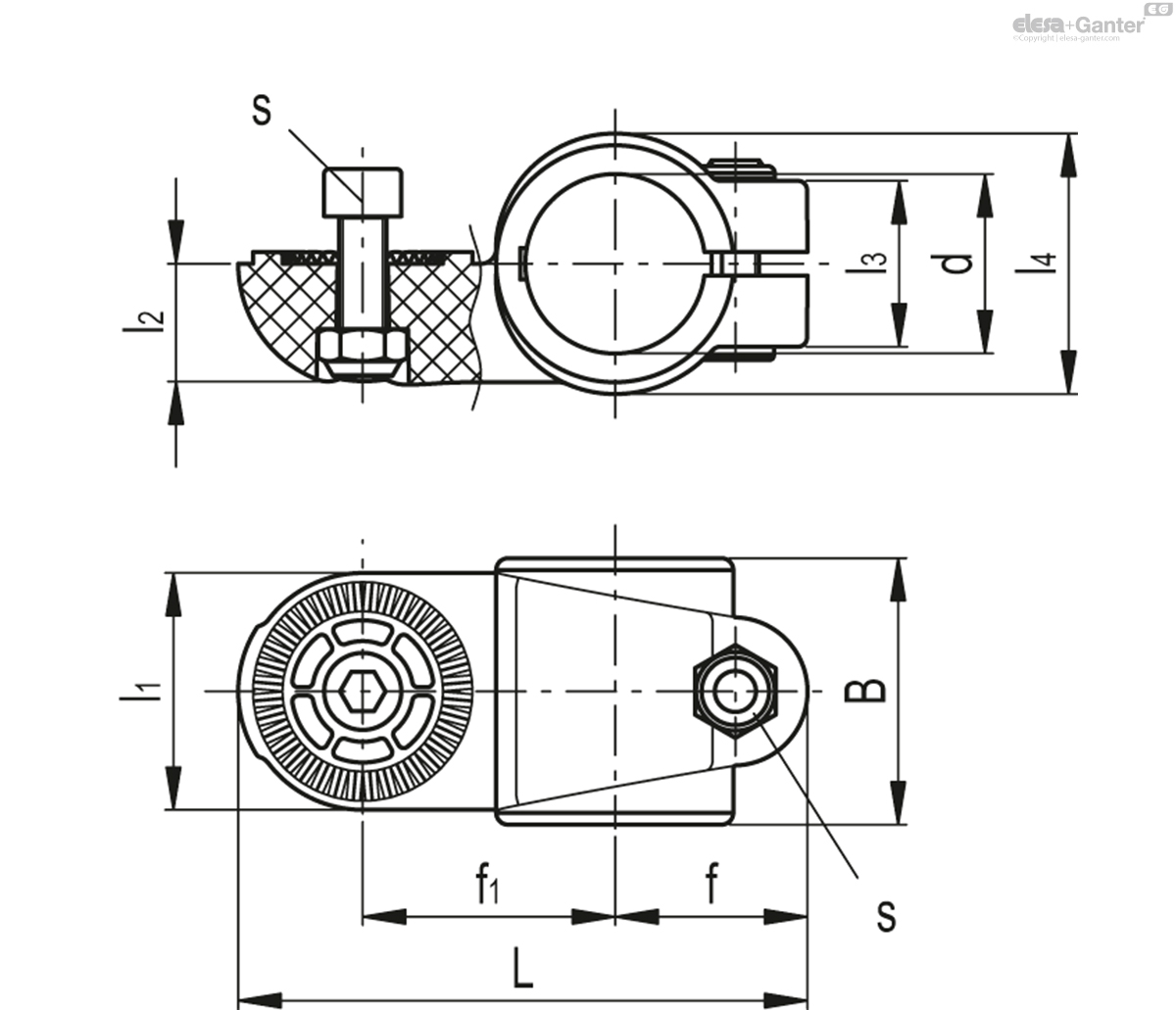

Technische fiche
Technische gegevens
- Code
- 600311-C9
- d
- 18
- L
- 64.5
- B
- 29
- d2
- 6.5
- f
- 22
- f1
- 28.5
- l1
- 26.5
- l2
- 13
- l3
- 21
- l4
- 29
- s
- M6
- C#
[Nm] - 5
- F1*
[N] - 1100
- M1**
[Nm] - 11
- M2***
[Nm] - 56
- 43
Clamp
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screws and nuts
Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nuts in AISI 304 stainless steel.
Supplied: two screws and two nuts for versions TCC-TP-E and TCC-TP-S, one screw and one nut for version TCC-TP-I
Standard executions
- TCC-TP-E: external teeth.
- TCC-TP-I: internal teeth.
- TCC-TP-S: without teeth.
Features

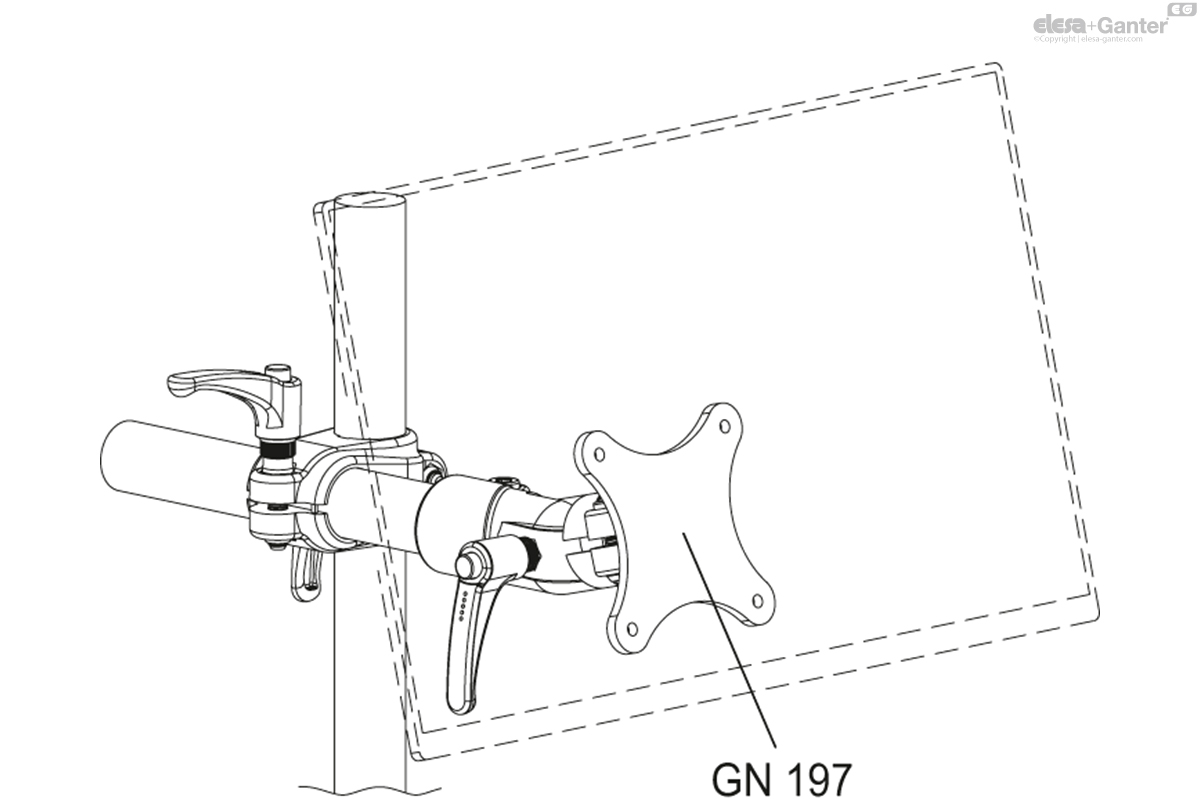

Two clamps, one with external teeth and one with internal teeth or two without teeth, can be joined to create a hinged joint.
Joints comprising clamps with external/internal teeth (36 teeth) have a 10° adjustment angle.
Joints comprising clamps without teeth can be positioned at any angle.
Clamps for tubes with a diameter of 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeve can be used TCC-A (to be ordered separately).

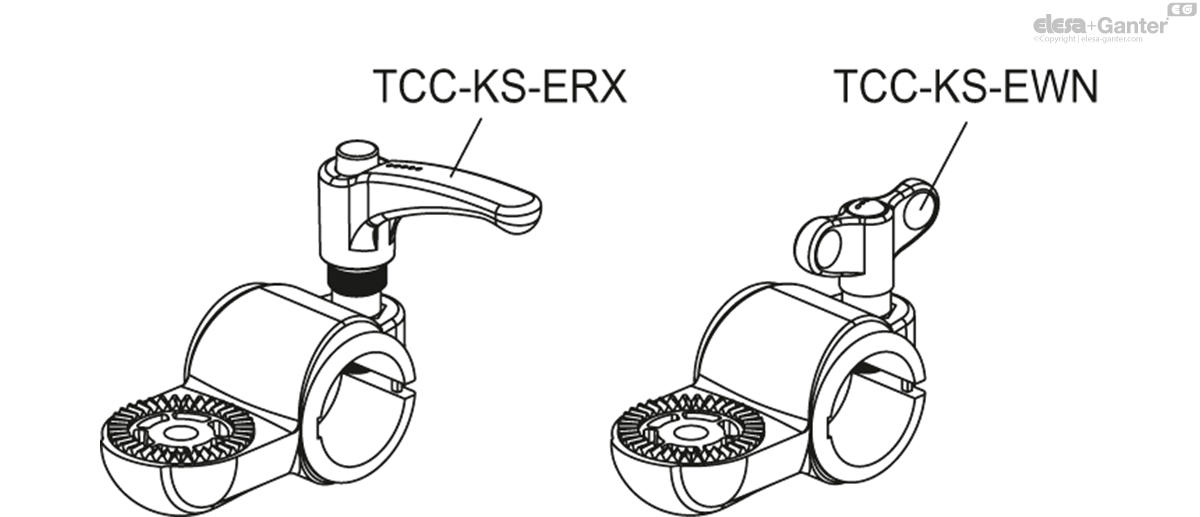

The 's' grub screws may be replaced by the kit TCC-KS.
Technical data

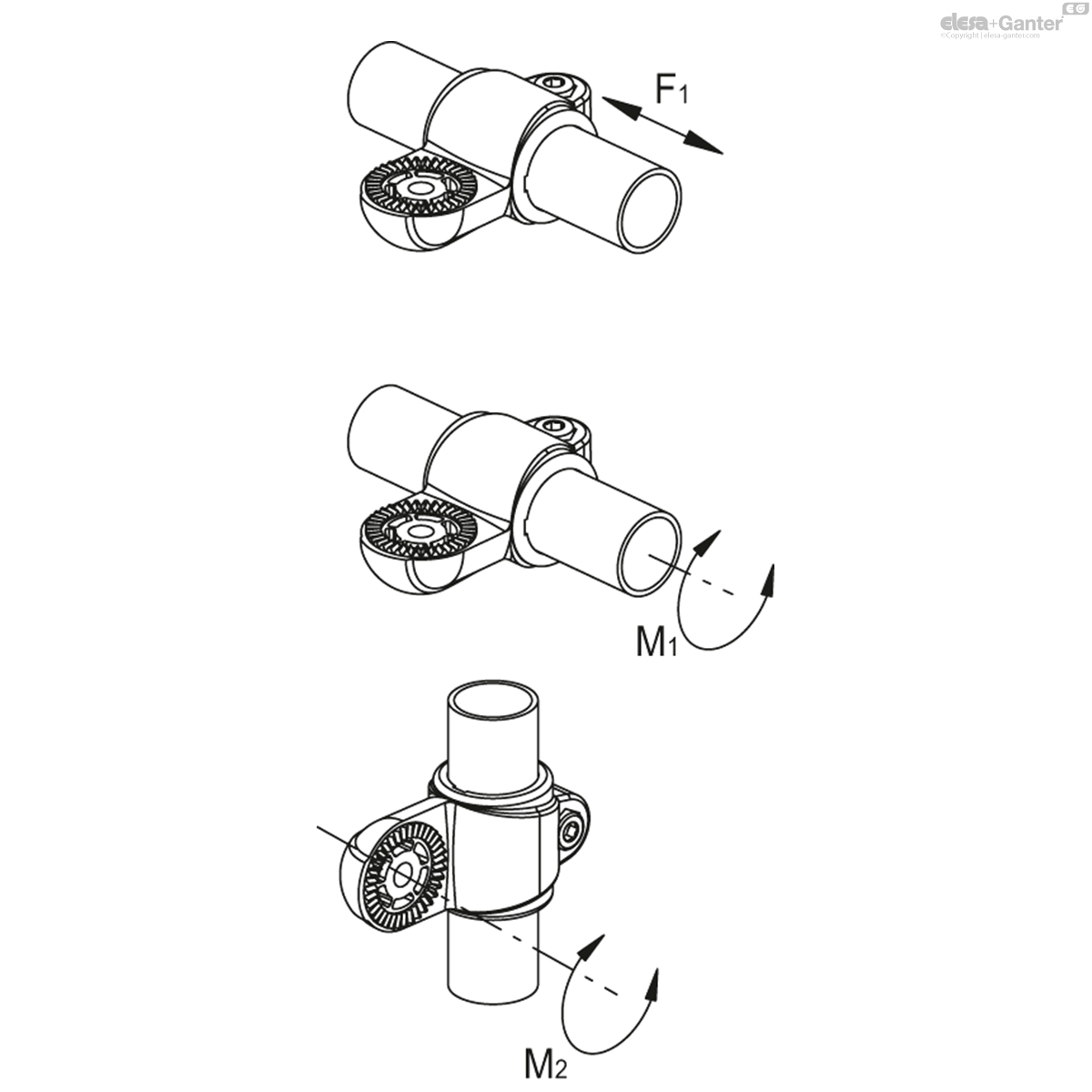

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
