7979-D-16-80-ST DIN 7979 Paspennen

7979-D-16-80-ST

DIN 7979 Paspennen

Staal , Met binnendraad
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 7979

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 7979-D-16-80-ST
d1 m6
16
l1 js15
80
d2
M 8
d3
8.4
l2
4.7
l3
2
l4
1.5
r
12
t
16
121
7979-D-16-80-ST drawing

Type

  • Type D: Hardened

Steel ST

  • Hardened (HRC 60 ±2)
  • Fit dimension d1 ground, plain finish

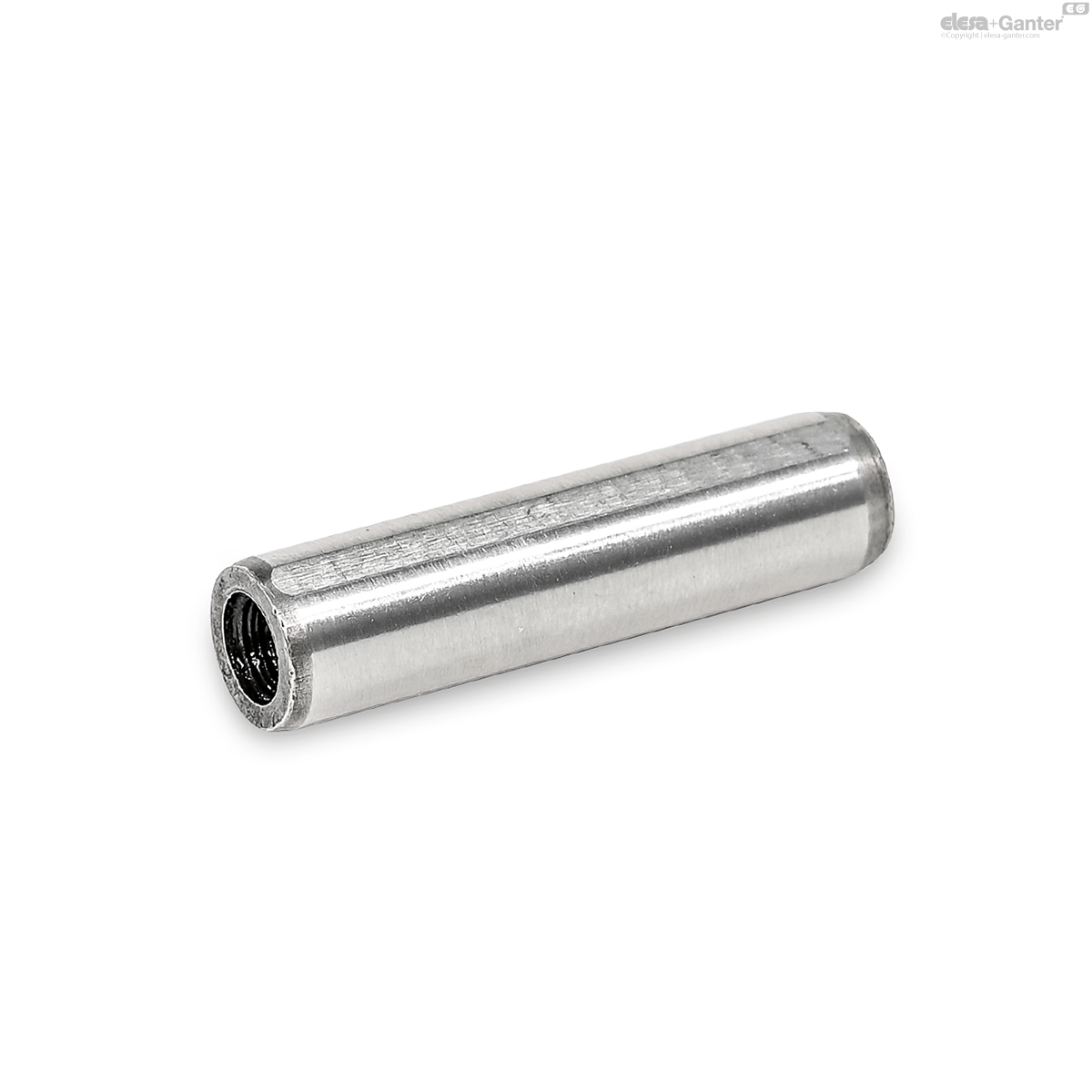

Dowel pins DIN 7979 connect, secure and position machine parts.

They are used in conjunction with blind holes. The centering step facilitates with pressing in the part. The flat section relieves trapped air, making them easier to insert and remove.

The dowel pin can be removed via the internal thread using a puller handle or slide hammer. The protective countersink d3 on the thread protects it from damage during installation.

The dimensions correspond to ISO 8735. In combination with a location hole H7 a transition fit can be achieved.
