6325-5M6-24-ST

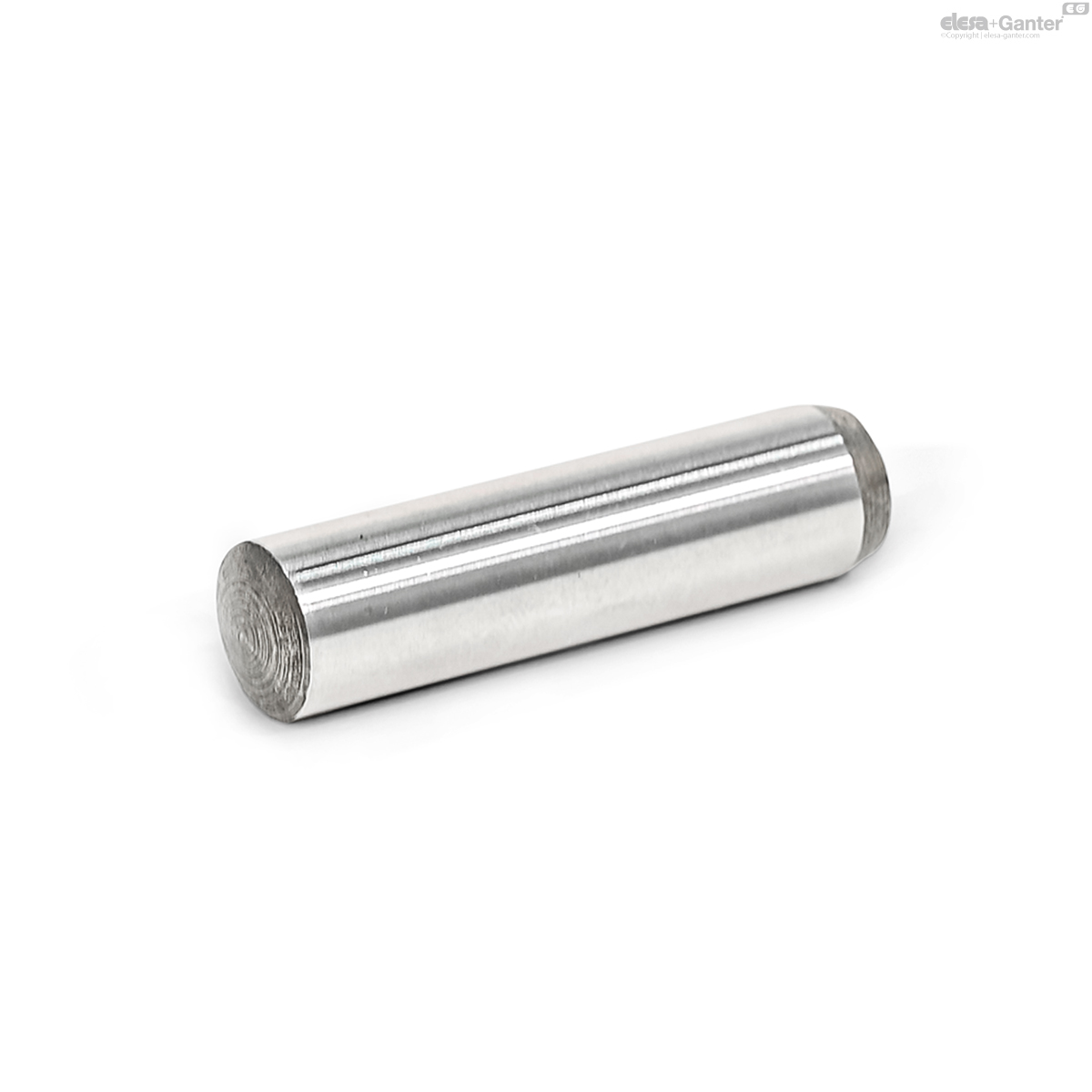

DIN 6325 Paspennen
Staal
Lt: 1-2 weken Alle maten en varianten van DIN 6325
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- DIN 6325-5M6-24-ST
- d m6
- 5
- l1 js14
- 24
- l2
- 1.7
- l3
- 0.75
- r
- 5
- 22
Tolerance class
Tolerance class
- M6: ISO Fundamental Tolerance m6 (acc. to DIN ISO 286-2)
Steel ST
Steel ST
- Hardened (HRC 60 ±2)
- Fit dimension d ground, plain finish
Dowel pins DIN 6325 connect, secure and position machine parts.
They are generally used in conjunction with through holes. The centering step facilitates press-fitting.
The dimensions do not conform to ISO 8734 but can partially replace these. In combination with a location hole H7 a transition fit can be achieved.
