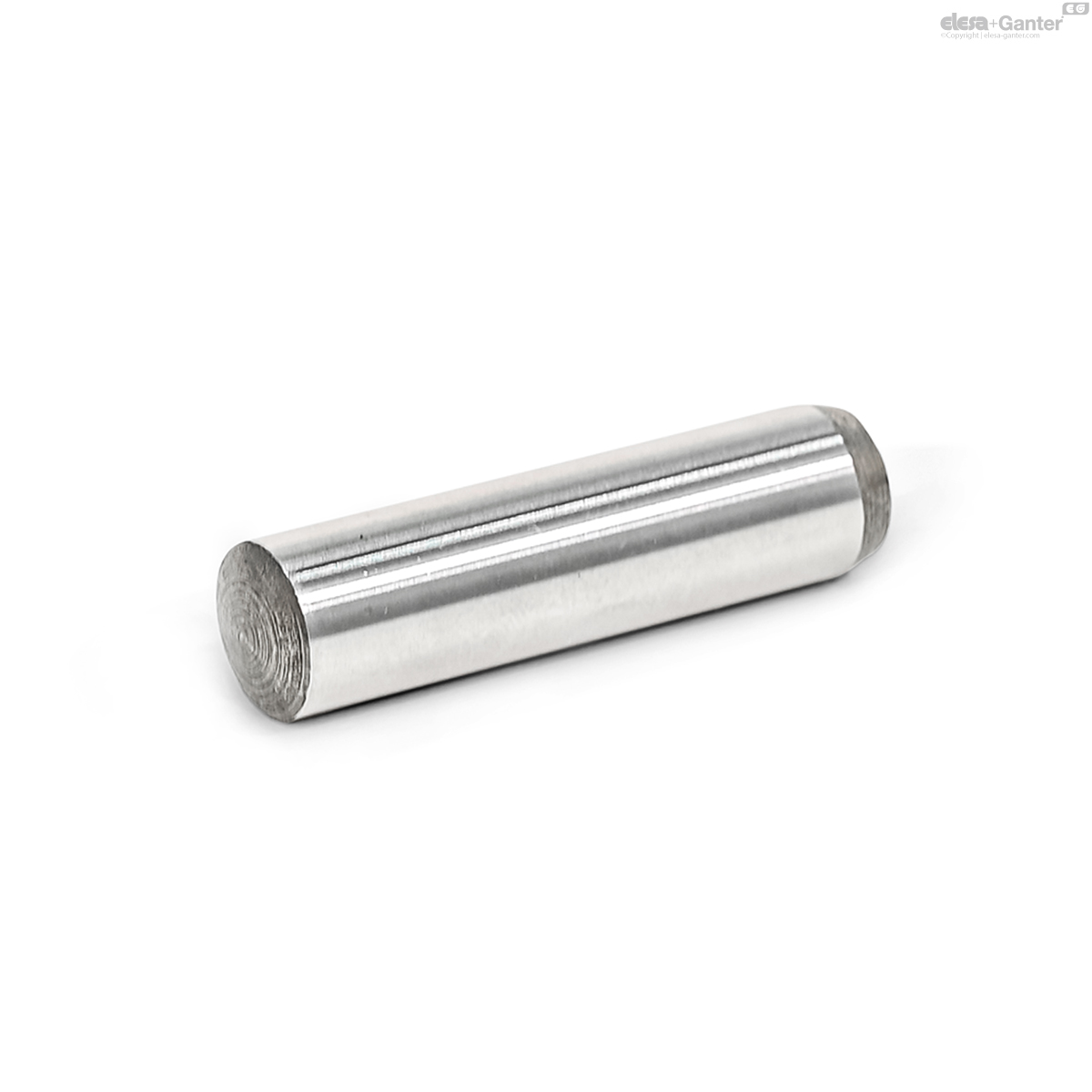

6325-2,5M6-24-ST DIN 6325 Paspennen

6325-2,5M6-24-ST

DIN 6325 Paspennen

Staal
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 6325

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 6325-2,5M6-24-ST
d m6
2.5
l1 js14
24
l2
0.95
l3
0.4
r
2.5
19

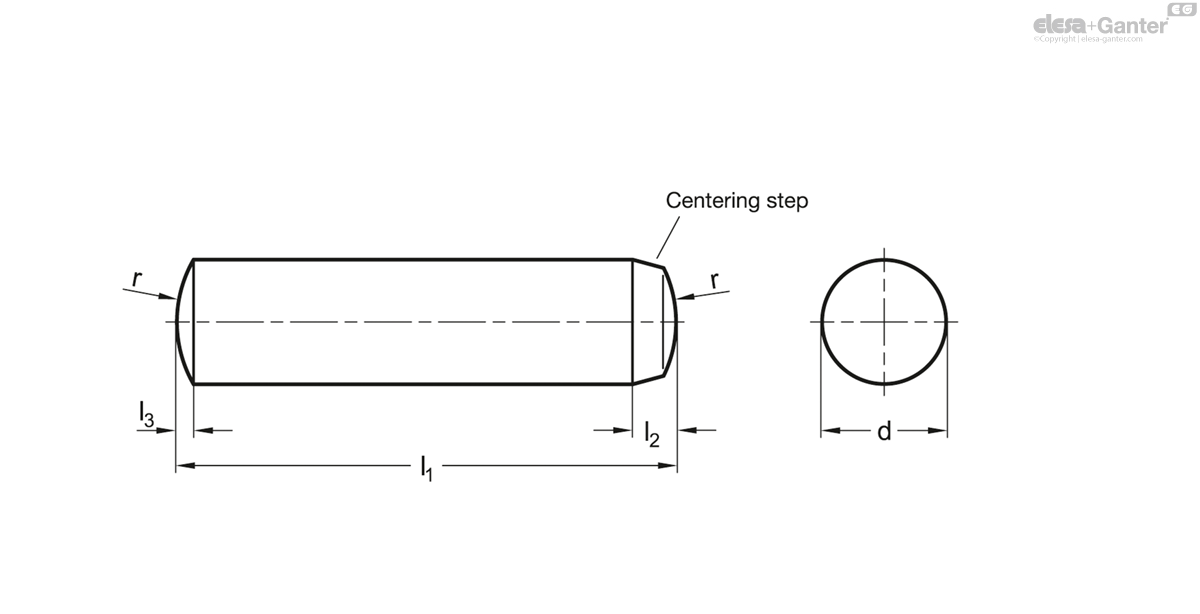

6325-2,5M6-24-ST drawing

Tolerance class

  • M6: ISO Fundamental Tolerance m6 (acc. to DIN ISO 286-2)

Steel ST

  • Hardened (HRC 60 ±2)
  • Fit dimension d ground, plain finish

Dowel pins DIN 6325 connect, secure and position machine parts.

They are generally used in conjunction with through holes. The centering step facilitates press-fitting.

The dimensions do not conform to ISO 8734 but can partially replace these. In combination with a location hole H7 a transition fit can be achieved.
