VVA-17-S Siliconenrubber, zonder steun

VVA-17-S

Siliconenrubber, zonder steun

Diameter 17mm, met of zonder steun, rubber
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van VVA-17

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
VV.45005
d
17
d1
3.8
d2
9
h
11
h1
1
F*
[Kg]
0.6
Volume#
[mm3]
213
1

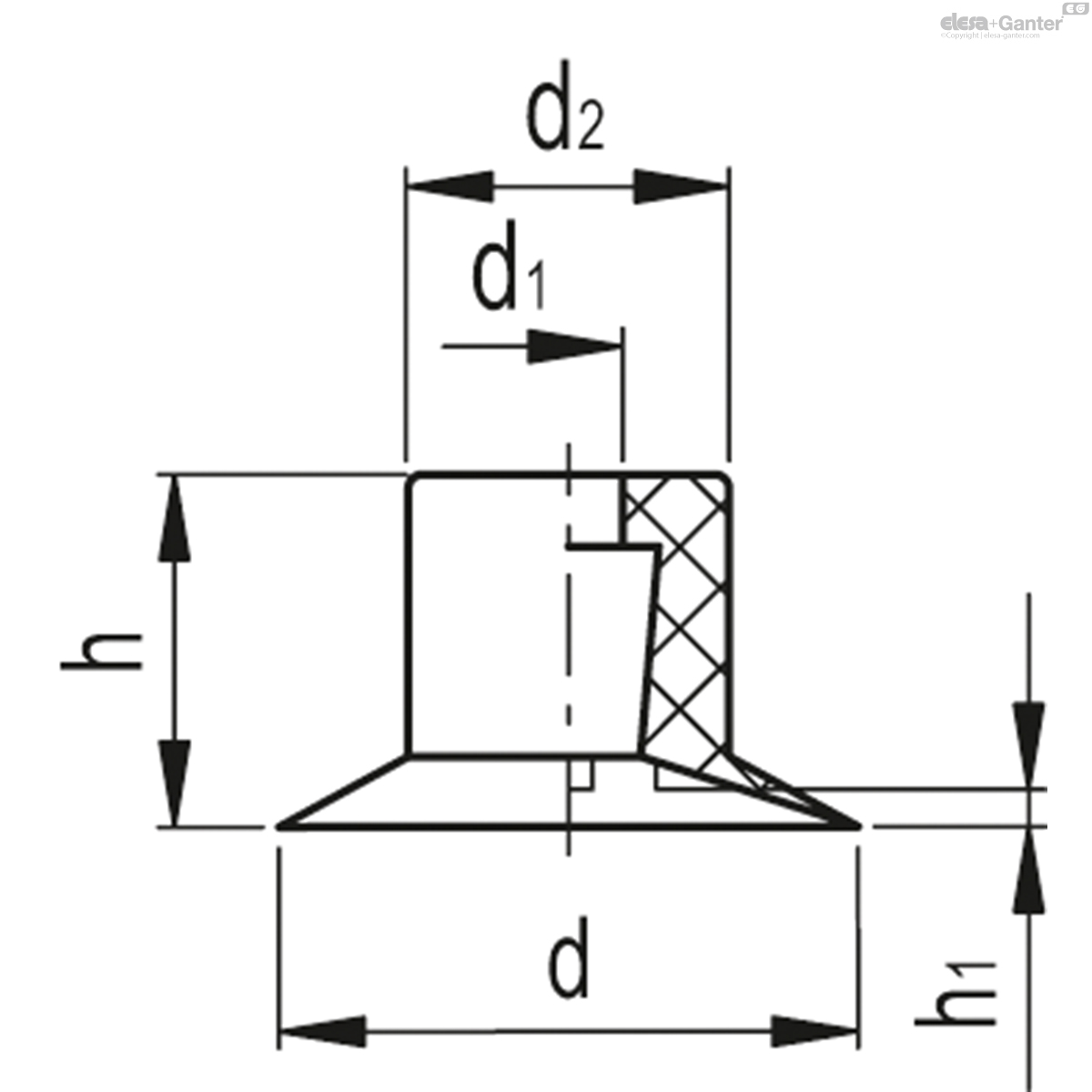

VVA-17-S drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
video

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

AVP nickel-plated bracket.

Standard executions

  • VVA-17-A: oil-proof rubber, without support.
  • VVA-17-N: natural rubber, without support.
  • VVA-17-S: silicone rubber, without support.
  • VVA-17-T-A: oil-proof rubber, with support.
  • VVA-17-T-N: natural rubber, with support.
  • VVA-17-T-S: silicone rubber, with support.

Applications

They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.

See Technical Data for vacuum cups .
