3492-16-M8-B-NI-GS GN 3492 Montageblokken

3492-16-M8-B-NI-GS

GN 3492 Montageblokken

Roestvrij staal
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 3492

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 3492-16-M8-B-NI-GS
b1
16
d1
M 8
b2
13
d2 For screw
M 6
h1
5
h2
18.5
Length l
47
m1
12
m2
30
m3
3
35

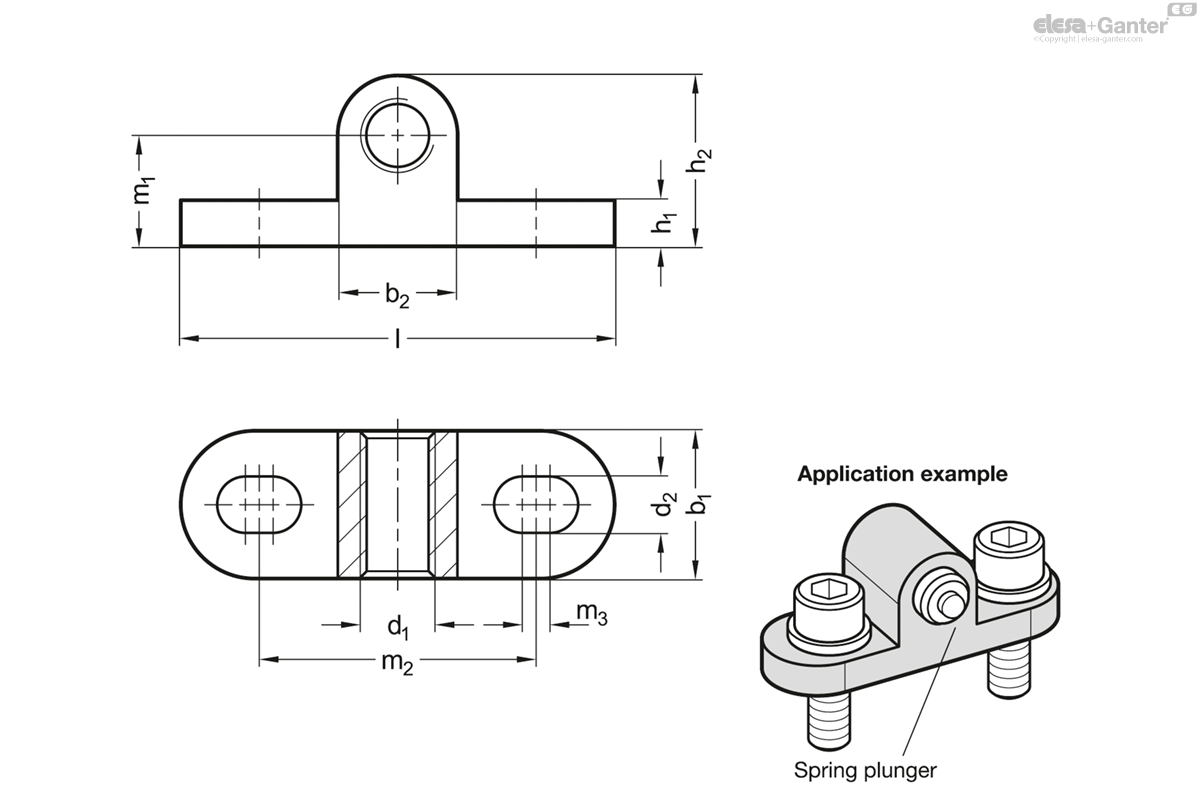

3492-16-M8-B-NI-GS drawing

Type

  • Type B: Mounting on both sides

Stainless steel precision casting AISI CF-8 NI

Matte shot-blasted finish GS

Mounting blocks GN 3492 quickly and easily fasten standard parts with external thread, such as spring plungers or setting bolts, perpendicular to the mounting plane. The slotted holes and the locating thread allow for positioning of the mounting blocks in two directions.

To prevent unintentional adjustment, the standard part can be secured with a clamping thread lock, a lock nut or a grub screw.
