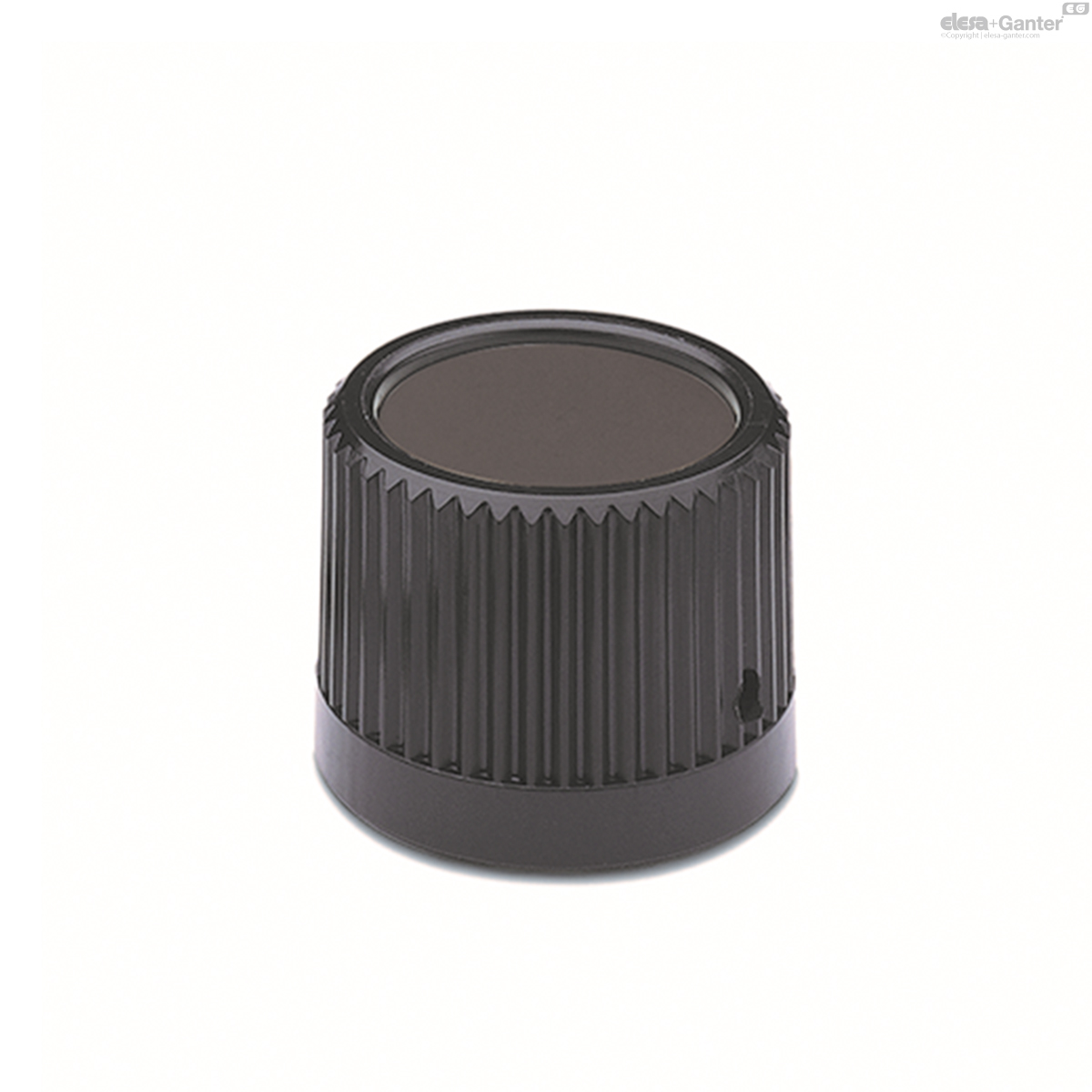

IZN.381/63 A-14-C9 IZN.381 Glad

IZN.381/63 A-14-C9

IZN.381 Glad

Technopolymeer
  • Icons/__logo__PA__.png
  • Icons/__logo__POM__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF79__.png

Lt: 1-2 weken Alle maten en varianten van IZN.381

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
30771-C9
D
63.5
dH7
14
L
44.5
l
11
d1
26
d2
48
d3
50.5
d4
6
h
30
h1
10.5
h2
16
f
M6
R
19
140

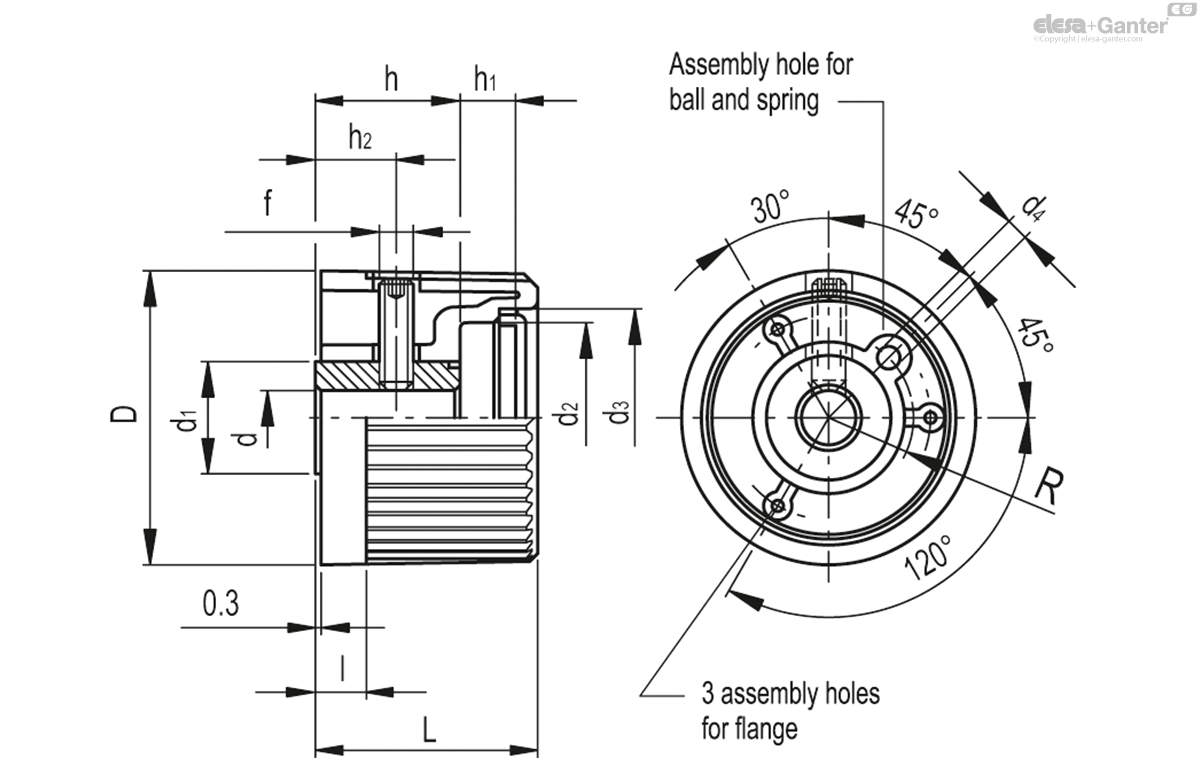

IZN.381/63 A-14-C9 drawing
IZN.381/63 A-14-C9 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Boss cap

ECA-IZN.381: acetal resin based (POM) technopolymer, in the Elecolors colours, push-fit assembly, removable by pressing on the outer edge (ELESA original design).

Available also as accessory sold separately (see table).

Wording, brands, graphic symbols, etc. can be pad printed on the surface in colour.

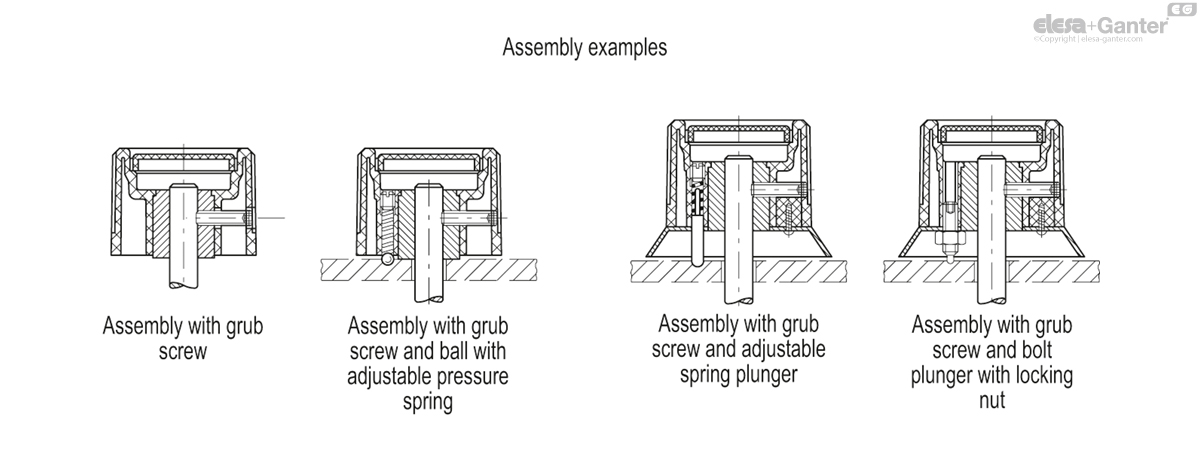

Standard executions

Black-oxide steel boss, H7 reamed hole.

Assembly with grub screw, without head, with hexagon socket in black-oxide steel; supplied already assembled.

  • IZN.381: plain knob.
  • IZN.381+K: knob with matte anodised aluminium flange, triangular black index.
  • IZN.381+FGS: knob with matte anodised aluminium flange, black graduation (marks and numbers).
  • FGS 10/40 = 40 marks, numbering from 0 to 9 increases as the knob is turned clockwise.
  • FGS 10/100 = 100 marks, numbering from 0 to 9 increases as the knob is turned clockwise.

For other numbering (see Graduations).



Accessories on request

Ball and spring for clicking operation to be fitted in the assembly hole for knobs with diameter D ≥ 48 mm, available only for IZN.381 (see ball and spring MS.).

By adjusting the housing unit (unit made pass-through and threaded), facilitated by the presence of a pre-drilled hole in the top part of the knob, it is possible to use GN 615 ball and spring plungers (neutral execution) and GN 616 bolt spring plungers (knob with flange) to calibrate the pressure of the positioning element.
