1133-M10-14-ST
GN 1133-ST Staal
Lt: 1-2 weken Alle maten en varianten van GN 1133
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

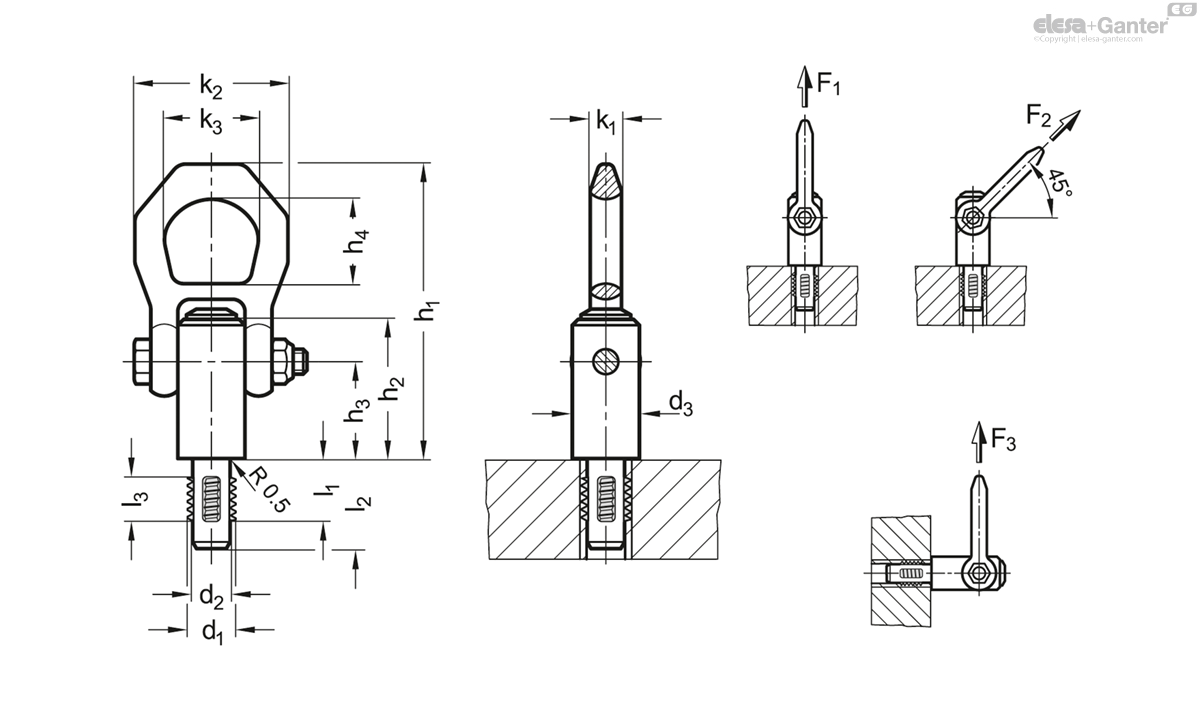

Technische fiche
Technische gegevens
- Code
- GN 1133-M10-14-ST
- d1
- M 10
- l1
- 14
- d2 -0.07
- 8.35
- d3
- 21.5
- h1
- 87.5
- h2
- 36
- h3
- 25.7
- h4
- 27
- k1
- 9.5
- k2
- 49
- k3
- 30
- l2
- 20
- l3
- 10
- Nominal load in kN
F1 - 3.9
- Nominal load in kN
F2 - 1.5
- Nominal load in kN
F3 - 1.5
- 290
Steel ST
- Pin, shackle
- Heat-treated, manganese phosphated
Stainless steel NI
- Pin, AISI 630
- Precipitation hardened
- Shackle, AISI 316Ti
Threaded segments
- Stainless steel AISI 630
- Precipitation hardened
Push button
Aluminum, orange anodized
Spring
Stainless steel

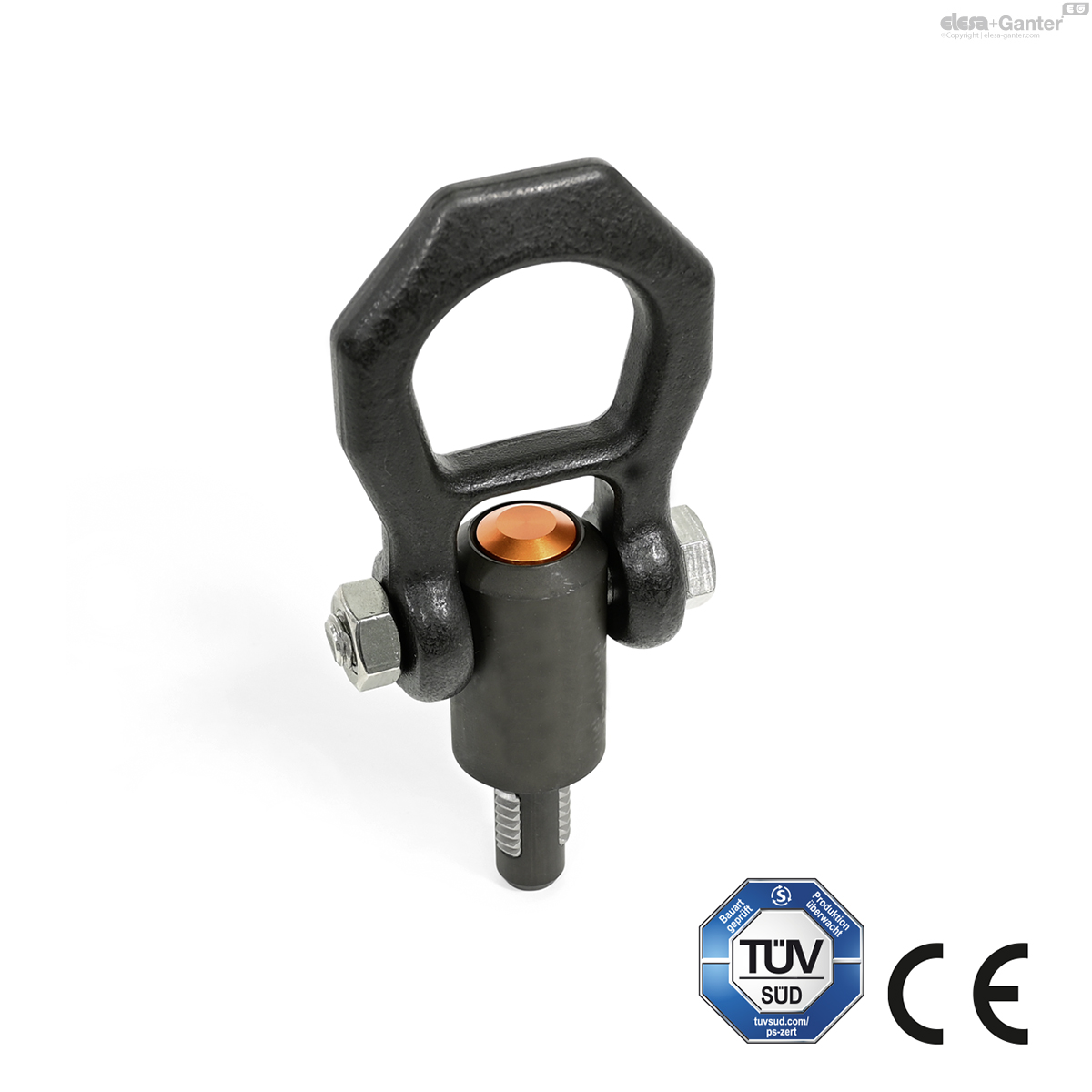

Threaded lifting pins GN 1133 are support elements designed for quick and easy use. Pressing the operation button unlocks the threaded segments, allowing the pin to be moved in or out of the mounting thread. This eliminates the time-consuming process of screwing in or out encountered with typical lifting gear, such as lifting eye bolts.
Assuming sufficient material strength, only true-to-gauge threaded holes are required to make use of the threaded lifting pins.
The shackle swivels by 180°, with a safety bar protecting the button from unintentional operation.
For further application guidelines, see the operating instructions enclosed with every threaded lifting pin
