M.2000/180-B-M6
M.2000 Beugelgreep
Beugelgreep
Lt: 1-2 weken Alle maten en varianten van M.2000
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

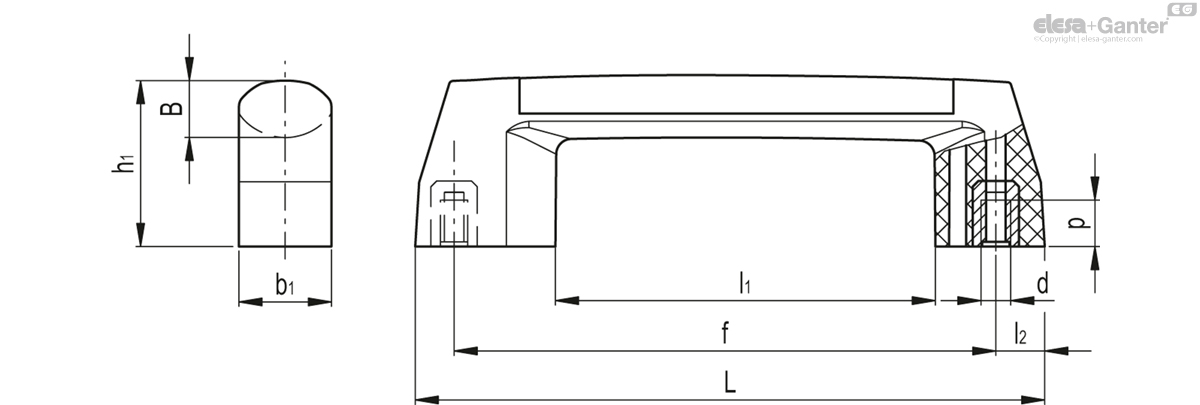

Technische fiche
Technische gegevens
- Code
- 260830-C1
- L
- 212.05.00
- d
- M6
- h1
- 65
- B
- 24
- b1
- 35
- l1
- 113
- l2
- 20
- p
- 12
- F1
[N] - 700
- F2
[N] - 900
- L1
[J] - 7
- L2
[J] - 6
- 320
Material
Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0, black colour, matte finish.
Standard executions
Brass bushings, M6 threaded blind holes for rear mounting.
Applications
The M.2000 handle can be combined with M.2000-SWM handles with monostable electrical switch.
Technical data

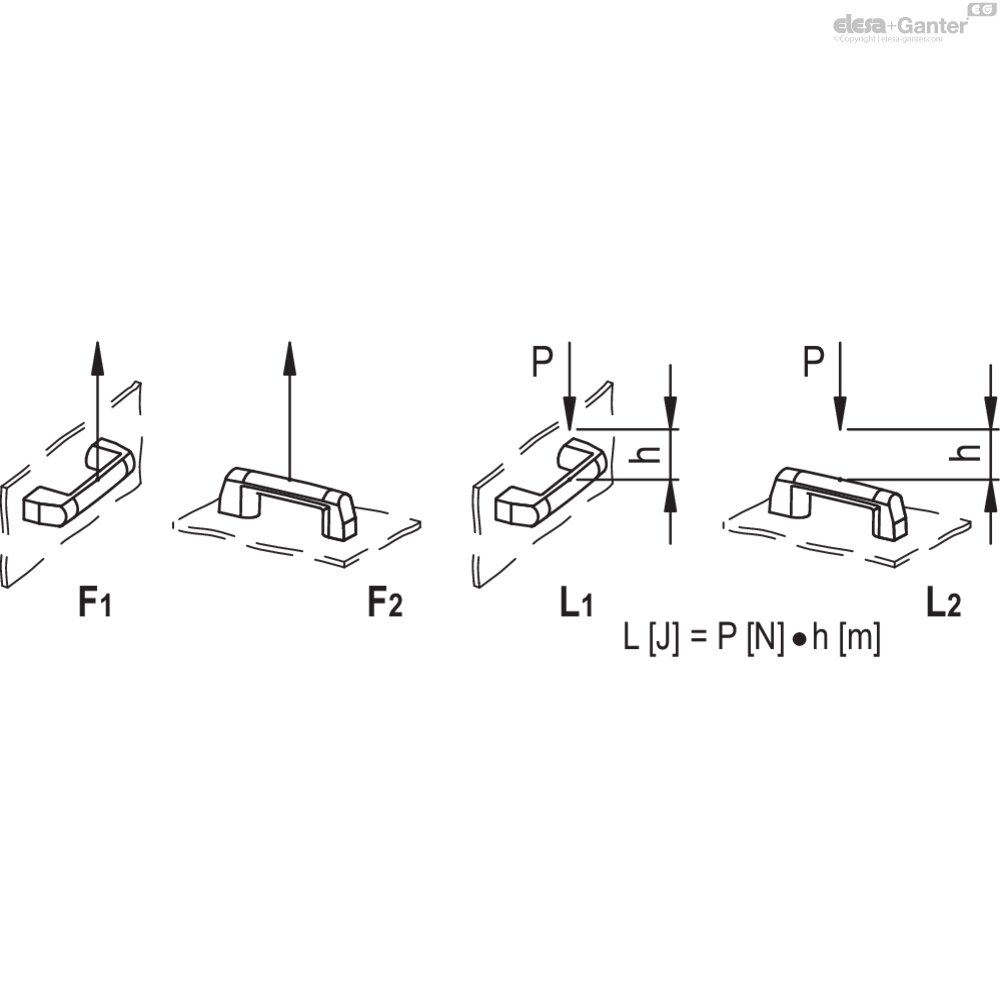

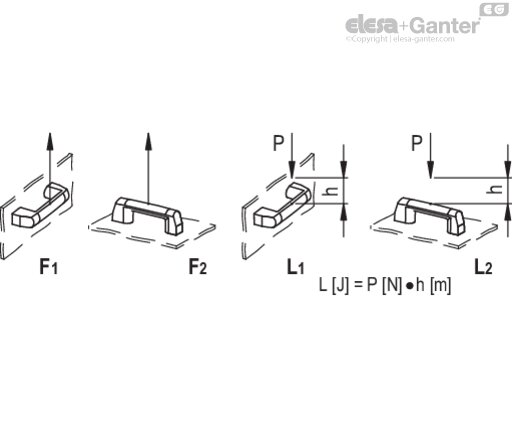

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out under the test conditions shown in the figure with ambient temperature.
