50.5-ND-47
GN 50.5 Magneten
Op voorraad Alle maten en varianten van GN 50.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 50.5-ND-47
- d1
- 47 +0.2/-0.1
- d2
- M 8
- d3
- 6.8
- h
- 9.2 +0,2/-0,3
- t
- 6
- Nominal adhesive forces in N
- 740
- 103
Housing
Steel, zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Plastic cover
Technopolymer (Polyamide PA)

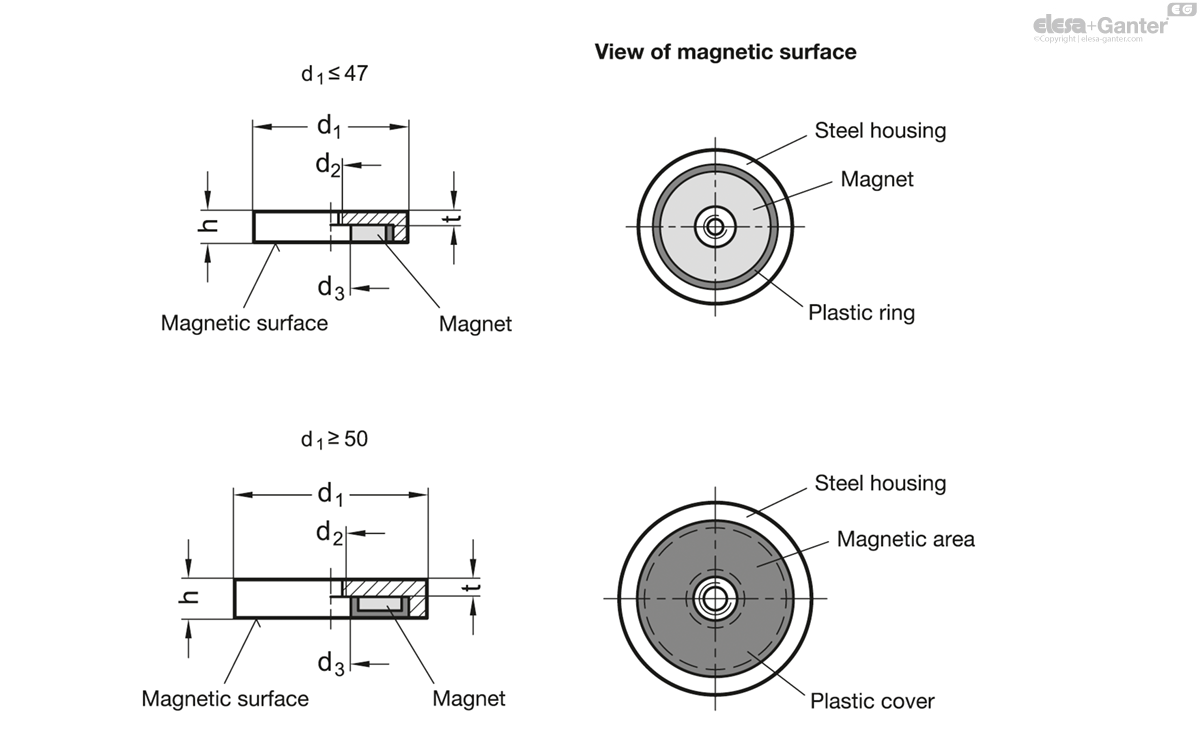

Retaining magnets GN 50.5 are combined with a steel housing and a plastic ring and the plastic cover into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
For diameter d1 ≥ 50 the adhesive surface is lagged with an all over plastic cover.
To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example stainless steel, brass or plastic.
