58-AN-29-ZB GN 58-ZB Verzinkt

58-AN-29-ZB

GN 58-ZB Verzinkt

met verzonken boring
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 58

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 58-AN-29-ZB
d1 Nominal dimension
29
d1
Actual dimension
28.6 ±1
d2
4.8
d3
10.5
h
8.5 ±0.5
Nominal adhesive forces in N
40
52

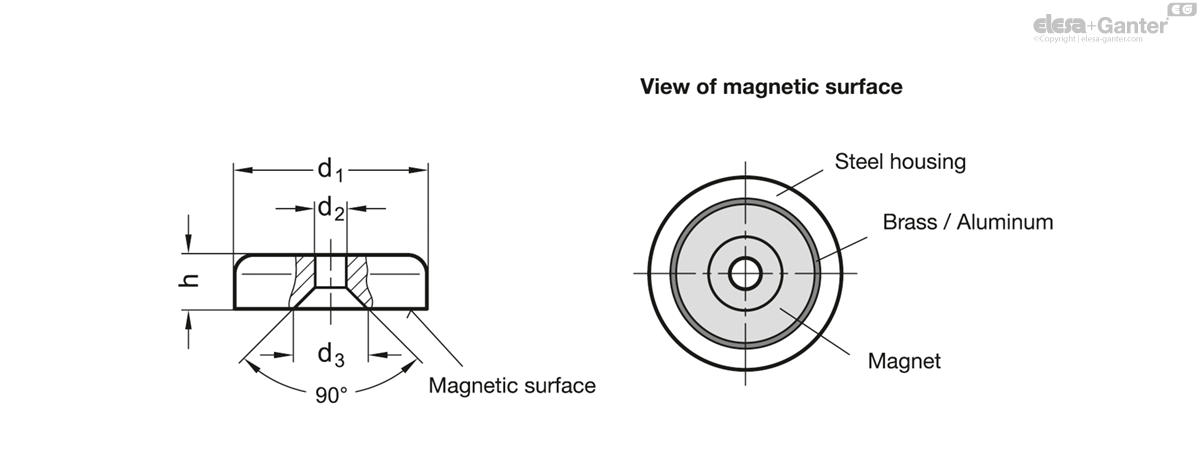

58-AN-29-ZB drawing

Housing

Steel

Material of the magnet

AlNiCo AN

Aluminum, Nickel, Cobalt

Finish

zinc plated ZB

temperature resistant up to 200 °C

red, lacquered RT

temperature resistant up to 180 °C

Pot magnets GN 58 are combined with a steel housing and insulation of brass / aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example Stainless Steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
