435-NI-16-200-85-GS
GN 435 U-kastgrepen
RVS, Hoog ontwerp
Lt: 1-2 weken Alle maten en varianten van GN 435
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

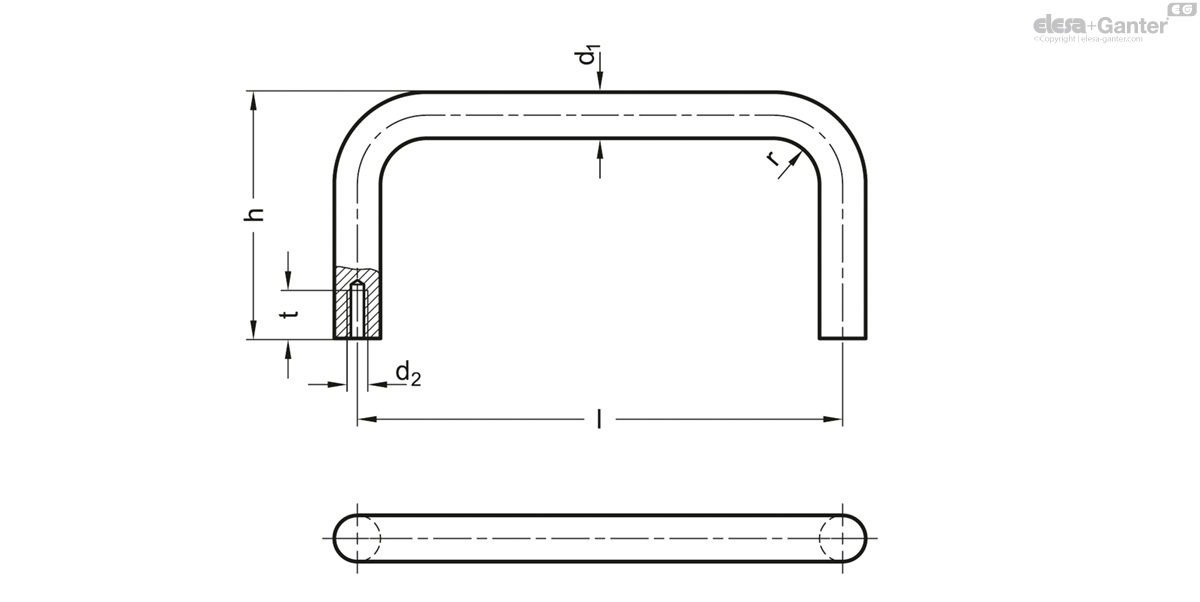

Technische gegevens
- Code
- GN 435-NI-16-200-85-GS
- d1
- 16
- Length l ±0.5
- 200
- h
- 85
- d2
- M 6
- r
- 18
- t min.
- 12
- 521
Stainless steel AISI 303 NI
Stainless steel AISI 303 NI
- Matte shot-blasted finish GS
- Powder coated
- Black, RAL 9005, textured finish SW

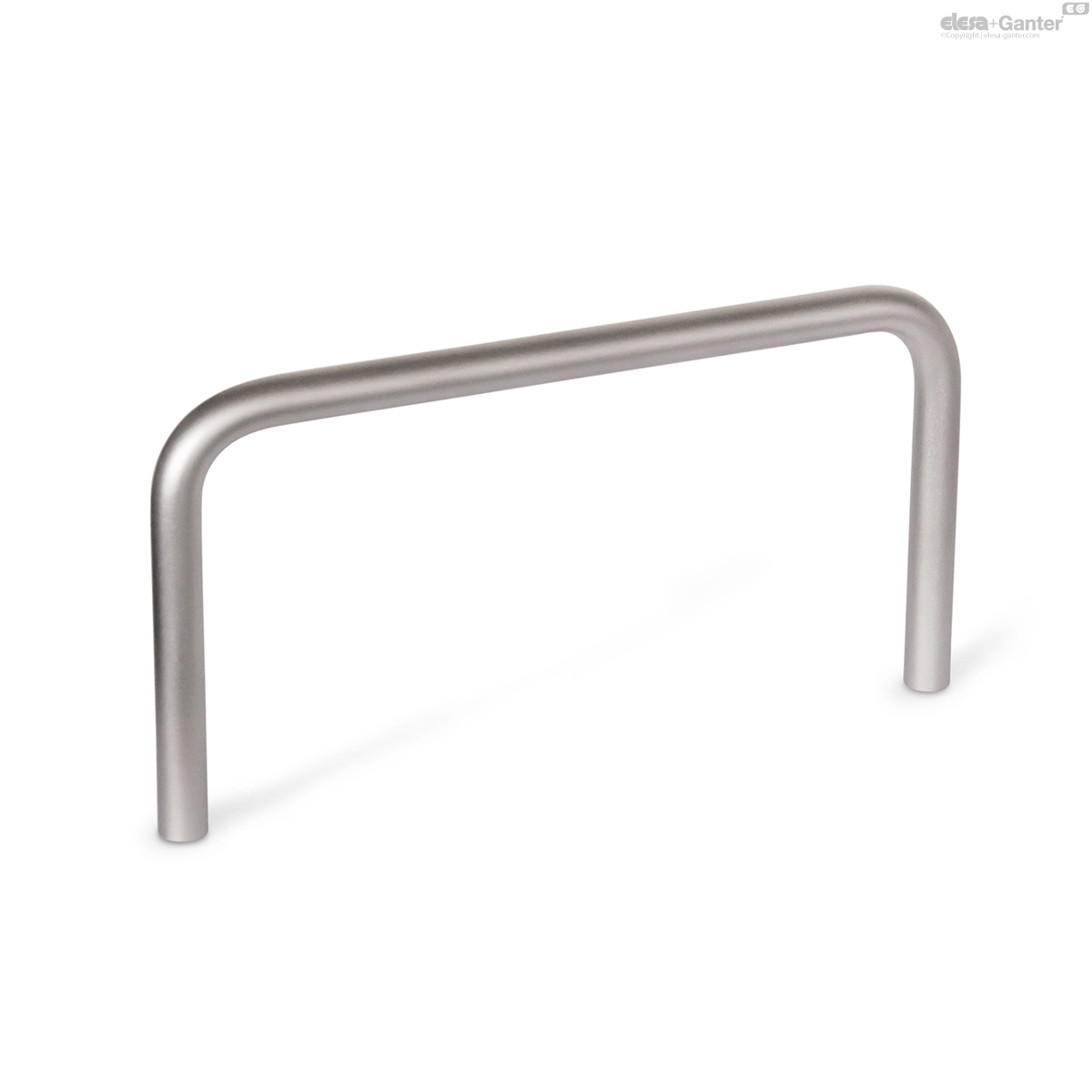

Cabinet U-handles GN 435, tall design, are made from bent round profiles and are designed for applications requiring more height for gripping. For example, this makes it possible to grab or hold the handle while wearing safety gloves. Some dimensions also satisfy the crane access standard DIN EN 13856.
In addition to serving as a handle, it can also be used as a hose guide, retaining bracket or the like.
- GN 181 Fastening Sets (Mounting from the Operator‘s Side)
- Other dimensions
- Other materials
- Other finishes
