6311.1-40-P GN 6311.1 Staal

6311.1-40-P

GN 6311.1 Staal

Staal / roestvrij staal, voor stelschroeven DIN 6332, voor knevelschroeven DIN 6304 / DIN 6306
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 6311.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 6311.1-40-P
d1
40
d2 +0.2
16.5
b
25
d3 min.
7.5
d3 max.
50
e ≈
10.5
h2
22
s
1.5
Grub screw DIN 6332
M 20
156

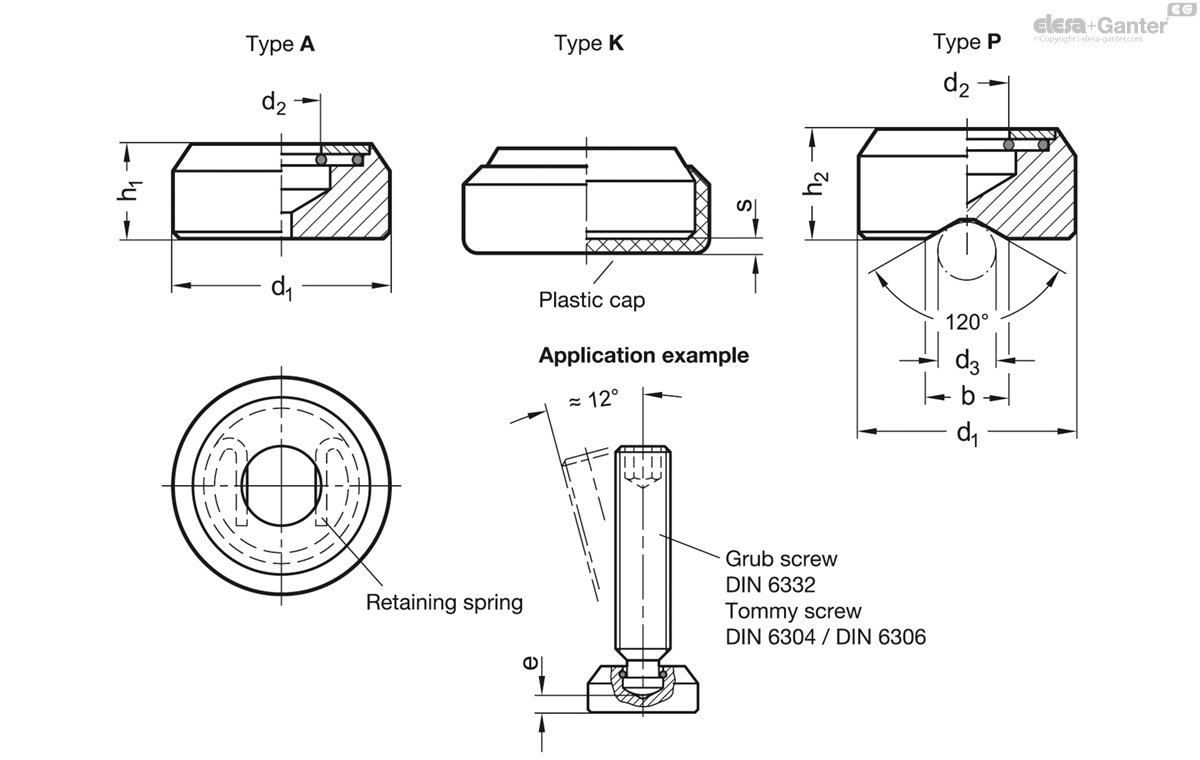

6311.1-40-P drawing

Types

  • Type A: Thrust pad surface plane, without plastic cap
  • Type K: Thrust pad surface plane, with plastic cap
  • Type P: Thrust pad surface with detent, without plastic cap

Thrust pad

  • Steel, blackened
  • Stainless Steel AISI 304 NI

Retaining spring

Stainless Steel AISI 301

Plastic cap (Polyacetal POM)

  • natural colour
  • temperature resistant up to 100 °C

Thrust pads GN 6311.1 are used in conjunction with grub screws fitted with thrust point (grub screws DIN 6332 , tommy screws DIN 6304  and DIN 6306  to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent the rotating force being transmitted to the workpiece.

The plastic cap (type K) prevents damage to delicate workpieces.

The unique shape of the retaining spring permits easy insertion and removal of grub screws into or from the thrust pad.

Thrust pads GN 6311.1 can be used in conjunction with DIN 6332  grub screws as levelling feet.
