827-M6X1-35-NG-S GN 827 RVS stelschroeven

827-M6X1-35-NG-S

GN 827 RVS stelschroeven

voor lagerblokken GN 828
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 827

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 827-M6x1-35-NG-S
d1
M6x1
l1
35
d2 -0.4/-0.6
6
d3
10
d4
16
l2 +0.1
10.1
l3
14
l4
2.9
s
5
24

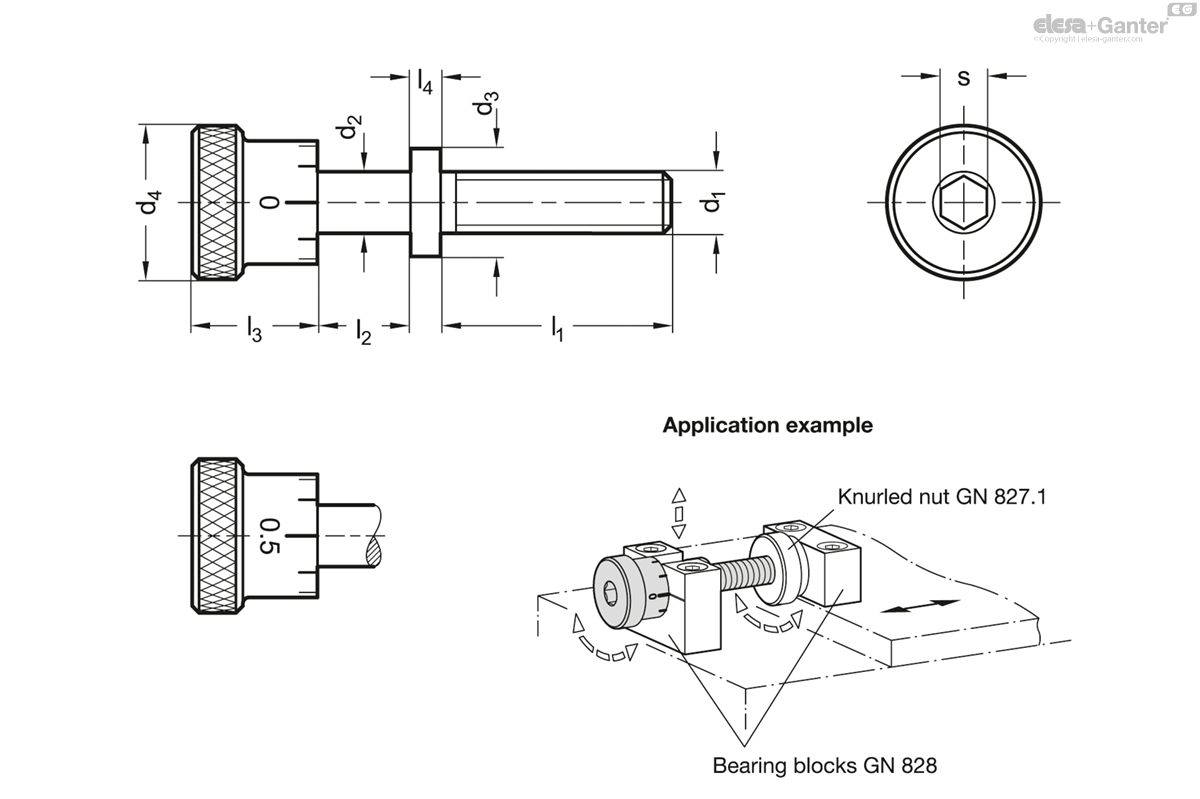

827-M6X1-35-NG-S drawing

Coding

Coding S: with standard scale 0...0,5, 10 graduations

Stainless Steel AISI 303 NG

matte shot-blasted

Scale

laser-engraved, black discharged

Stainless Steel-Adjusting screws GN 827 are used in combination with bearing blocks GN 828 for simple adjustment and positioning tasks.

For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
