369.5-100-B12-A GN 369.5-A zonder uitsparing

369.5-100-B12-A

GN 369.5-A zonder uitsparing

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 369.5

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 369.5-100-B12-A
l ≈
100
d1 H9
B 12
d2
20
h1
30
h2 ≈
20
h3 ≈
88
h4 ≈
50
t +0.5
20
Ø Handle
21
For screws
DIN 912
M 6
119

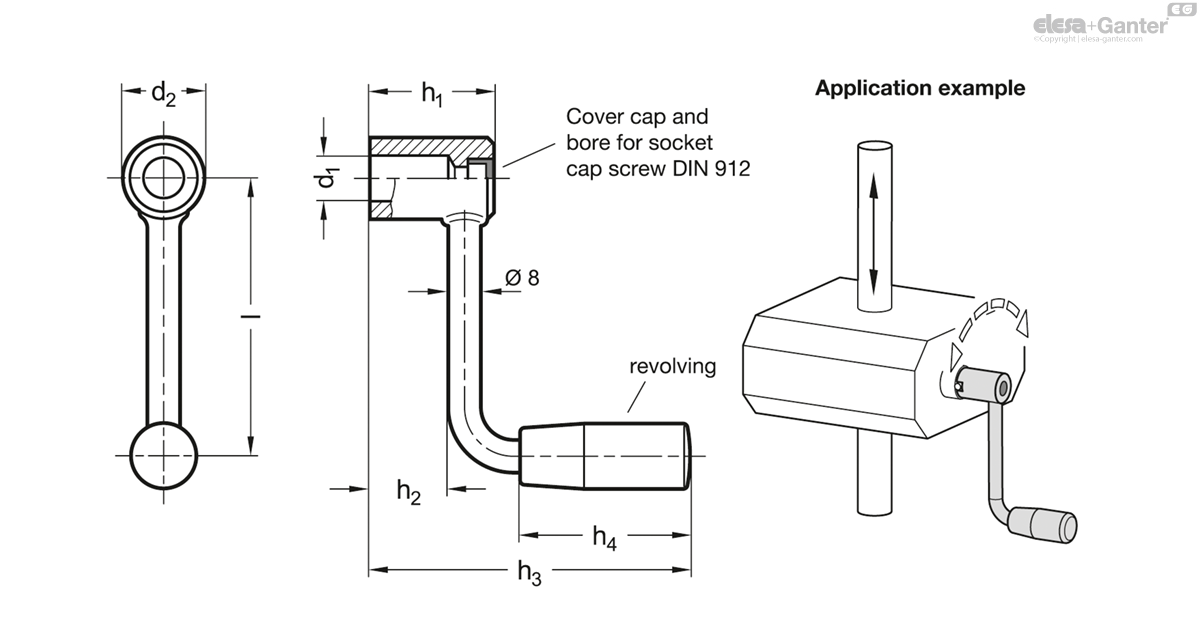

369.5-100-B12-A drawing

Types

  • Type A: without slot
  • Type N: with slot

Stainless Steel AISI 304

  • shot-blasted
  • Crank butt-welded

Cover cap

Plastic, black

Revolving handle

  • Plastic, Duroplast, black, shiny finish
  • temperature resistant up to 110 °C

Stainless Steel-Cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.

The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.

Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
