113.8-16-90

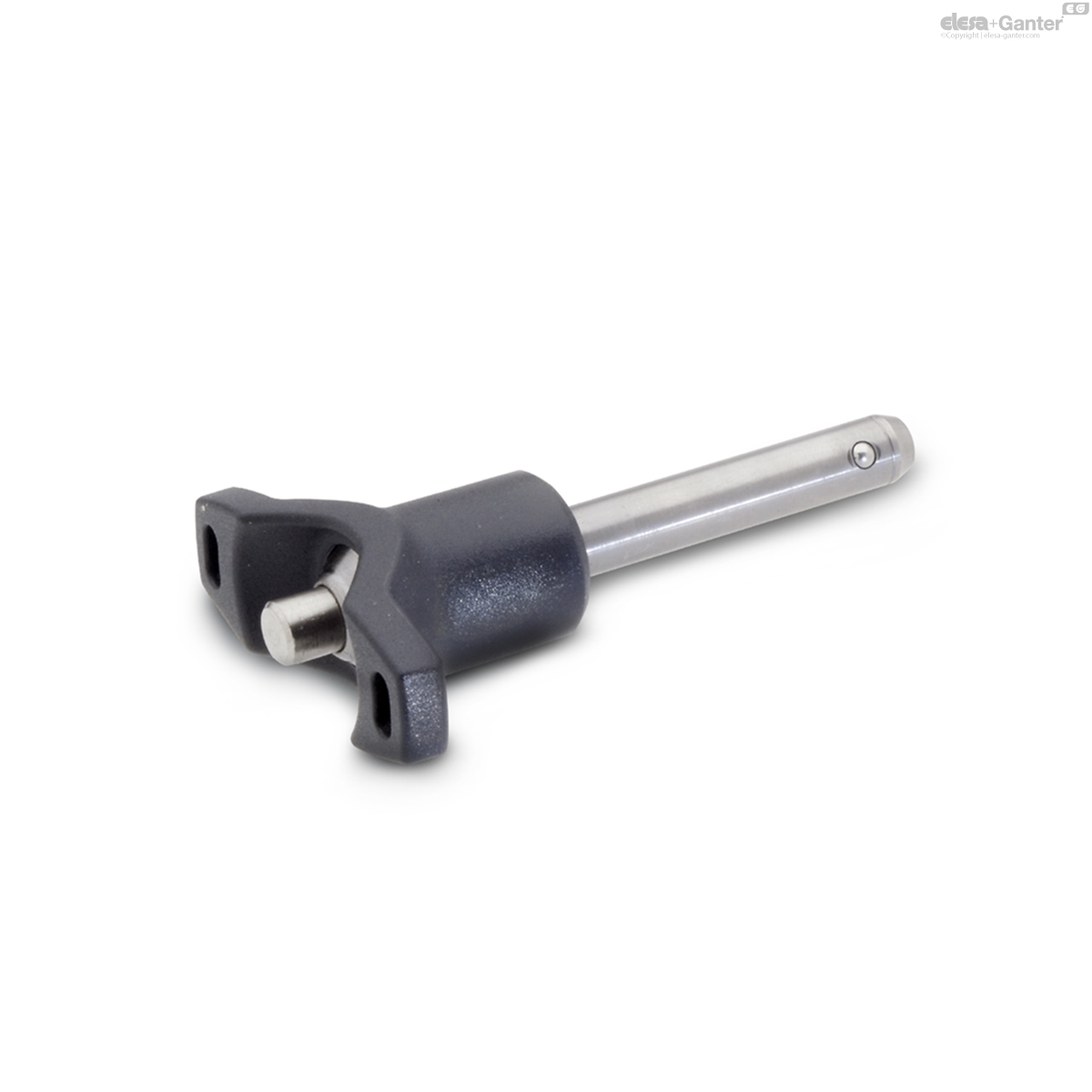

GN 113.8 Roestvrijstalen kogelvergrendelpennen
Lt: 1-2 weken Alle maten en varianten van GN 113.8
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 113.8-16-90
- d1 -0.04/-0.08
- 16
- l1 +0.6
- 90
- d2
- 19
- d3
- 58
- d4
- 24
- l2 ±1
- 14
- l3
- 36.5
- m
- 27.5
- Location
bore H11 - 16
- Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 257
- 226
Pin Stainless Steel AISI 630
- precipitation-hardened
- hard coated
T-Handle
Plastic (Polyamide PA)
- black
- temperature resistant up to 80 °C
Balls
Stainless Steel AISI 420C
Spring
Stainless Steel
German Material No. 14565
Stainless Steel-Ball lock pins GN 113.8 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
Ball lock pins GN 113.8 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.
The load values given in the above table at shar stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out of any liability. They consstitute no general warranty of quality and condition. The user must determine from case to case whether a product ist suitable for the intended use.
