113.7-16-140

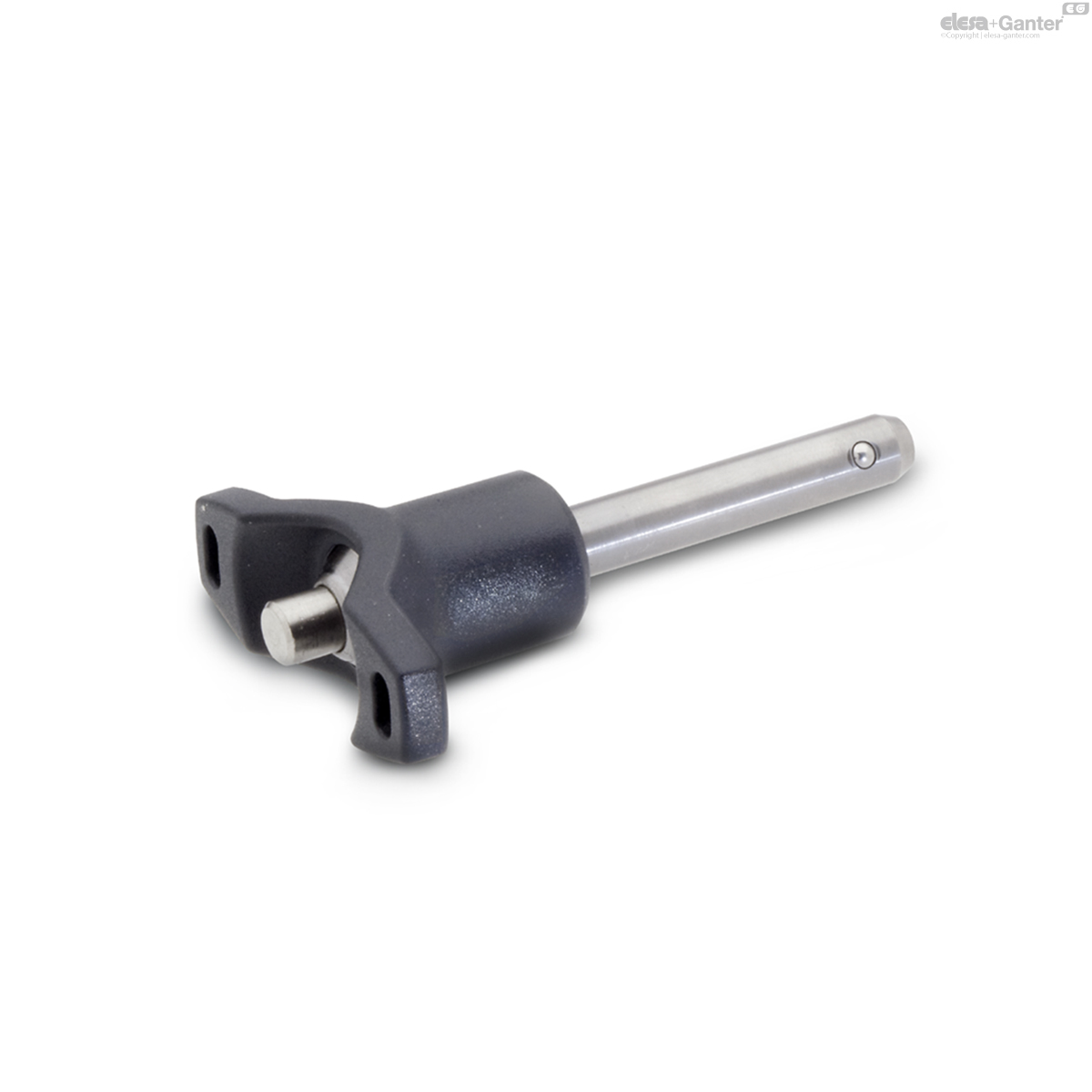

GN 113.7 Kogelvergrendelpennen
Lt: 1-2 weken Alle maten en varianten van GN 113.7
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 113.7-16-140
- d1 -0.04/-0.08
- 16
- l1 +0.6
- 140
- d2
- 19
- d3
- 58
- d4
- 24
- l2 ±1
- 14
- l3
- 36.5
- m
- 27.5
- Location
bore H11 - 16
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 155
- 305
Pin
Stainless steel AISI 303
T-Handle
Plastic (Polyamide PA)
- Black
- Temperature resistant up to 80 °C
Balls
Stainless steel AISI 420C
Pressure spring
Stainless steel German Material No. 14565
Ball lock pins GN 113.7 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
Information
The load capacities specified in the table for the double sided shearing resistance (breaking strength) have been calculated or theoretically defined on the basis of DIN 50141.
At the same time, the endangered bolt cross-section S, according to a nearby sketch, was considered in two shear planes before breakage.
The details given on load rating are non-binding guide values without any liability. In general, they do not constitute a warranty of condition.
The user must determine whether the product is suitable for the intended purpose. Environmental factors can influence the specified values.
An appropriate safety factor must be taken into account in the design.
