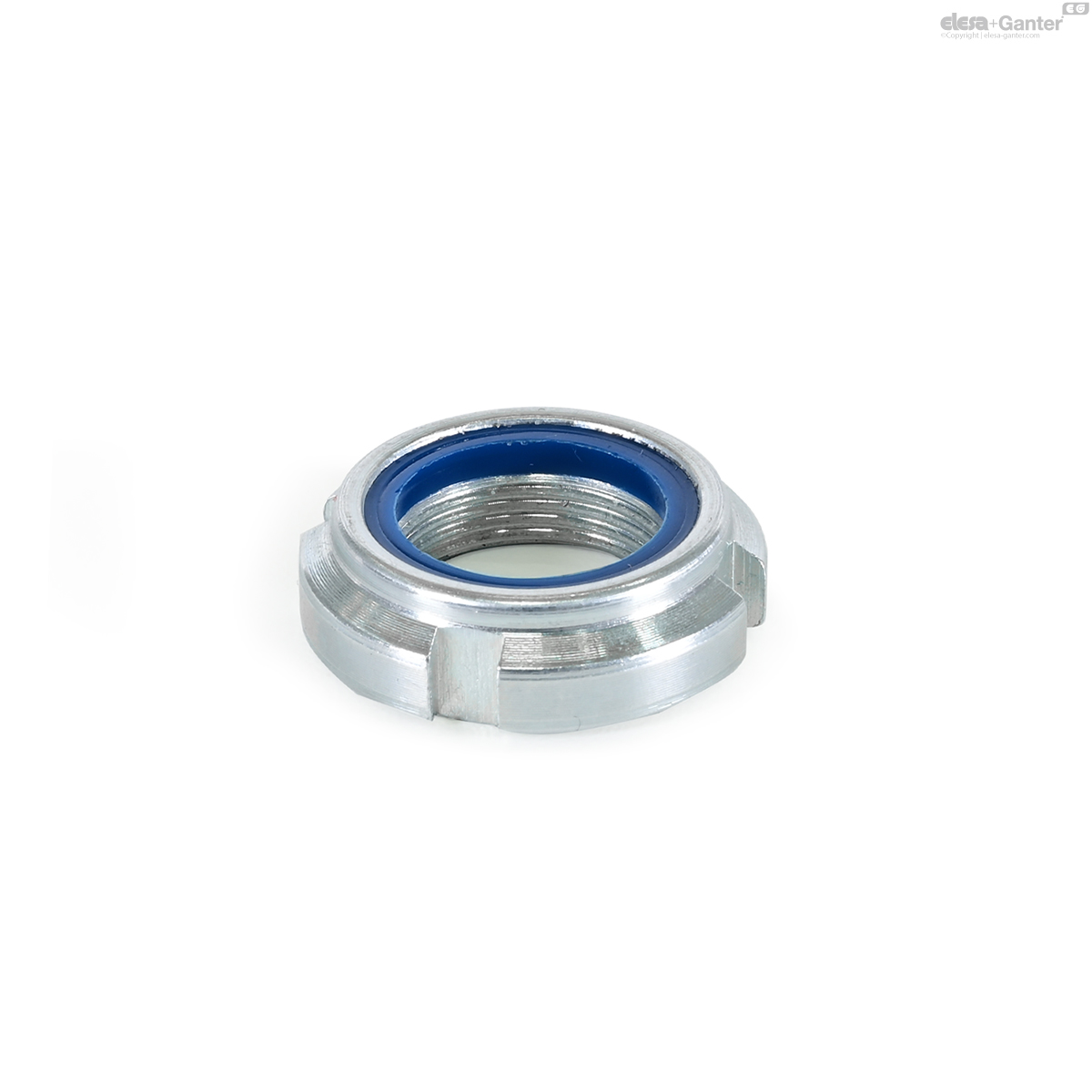

1804.1-M14X1,5 GN 1804.1-ST Staal

1804.1-M14X1,5

GN 1804.1-ST Staal

Staal / roestvast staal, zelfborgend, met polyamide ring
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 1804.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 1804.1-M14x1,5
d1 6H
M 14 x 1.5
d2
24
d3
21
b
4
h
10.7
m
6
Number of slots
4
C-Spanner
DIN 1810-A25-28
28

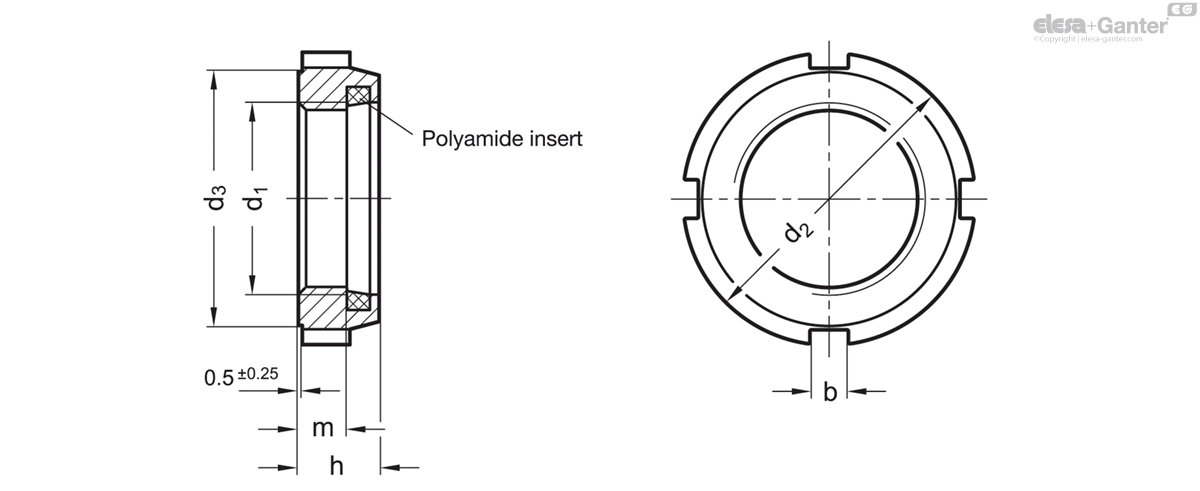

1804.1-M14X1,5 drawing

Nut

  • Steel
  • Property class 5
  • Zinc plated, blue passivated
  • Stainless steel AISI 304 NI

Insert

Plastic, polyamide (PA)

Operating temperature -30 °C to +90 °C

Slotted locknuts GN 1804.1 are self-locking owing to their polyamide insert. They can therefore also be used as a setting nut and may be used more than once.

The thread series largely corresponds to roller bearing slotted locknuts according to DIN 981. The additionally available dimensions listed above cover typical thread sizes used in machine and device construction.

  • DIN 1810 C-Spanner (Code no. see table)
