864.1-32-ES GN 864.1 Protective covers

864.1-32-ES

GN 864.1 Protective covers

voor krachtklemmen GN 864
  • Icons/__logo__RoHS__.png
  • Icons/__logo__MISATI__.png

Lt: 1-2 weken Alle maten en varianten van GN 864.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 864.1-32-ES
For power clamps
GN 864
Size
20
s
32
d1
M5
d2 H8/h6
7
d3
5.5
d4
7
d5
9
l1
76
l2
5
l3
10
l4
15.5
l5
2.1
m1
22
m2
17
57

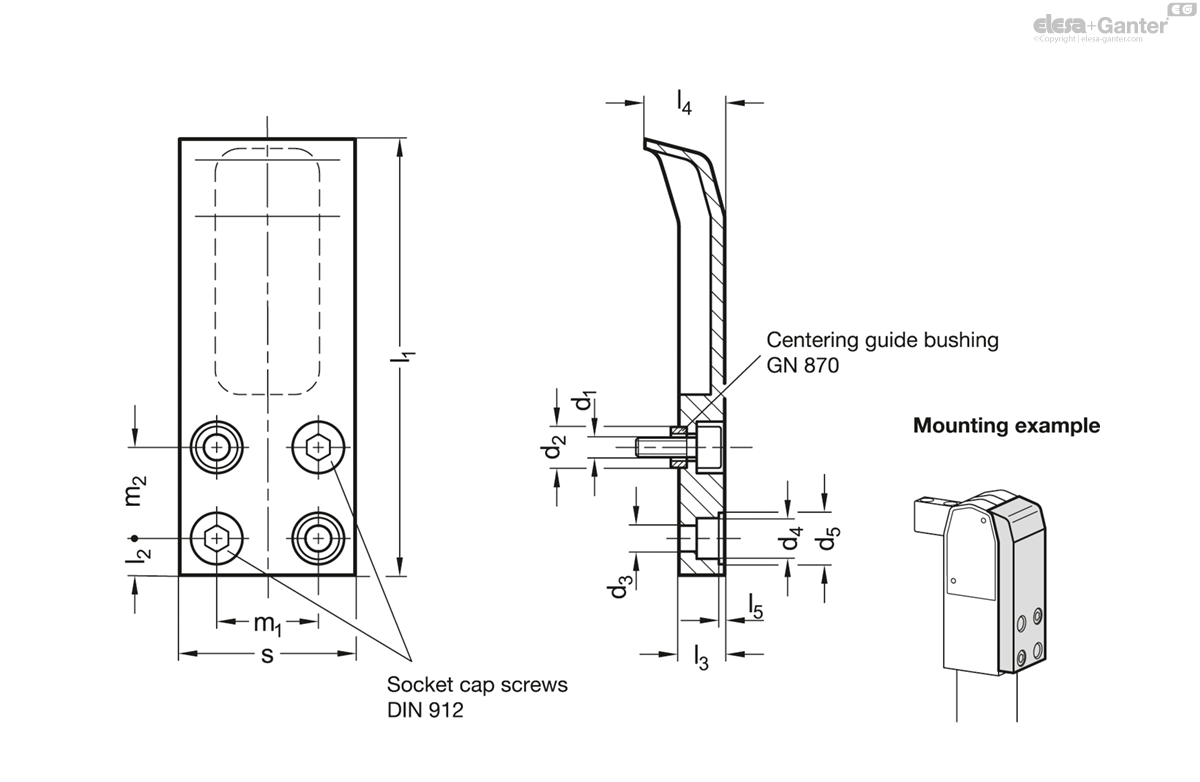

864.1-32-ES drawing
video

Aluminum

  • black anodized ES
  • anti-stick coating, fluoropolymer (PTFE), green FG

Socket cap screws DIN 912,

centering guide bushings

Steel, blackened

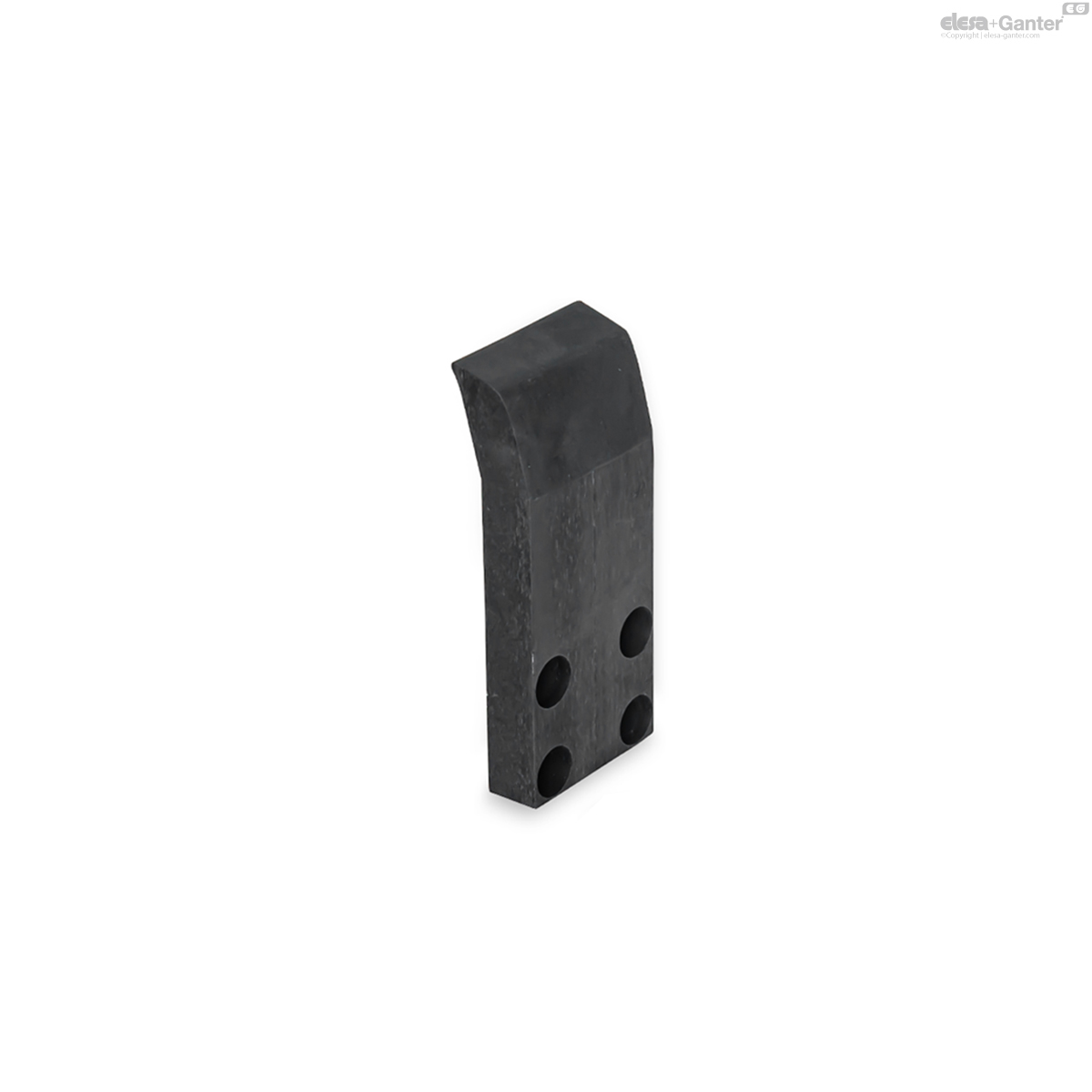

Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.

The type FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion.

Socket cap screws and centering guide bushings are included.
