GN 187.6 Sluitverbindingssets
Lt: 1-2 weken Alle maten en varianten van GN 187.6
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 187.6-32-K
- d1 Locking plates
GN 187.5 - 32
- d2
- 9
- d4
- M 6
- h1
- 19
- h4
- 33
- l2
- 45
- s
- 12
- 45

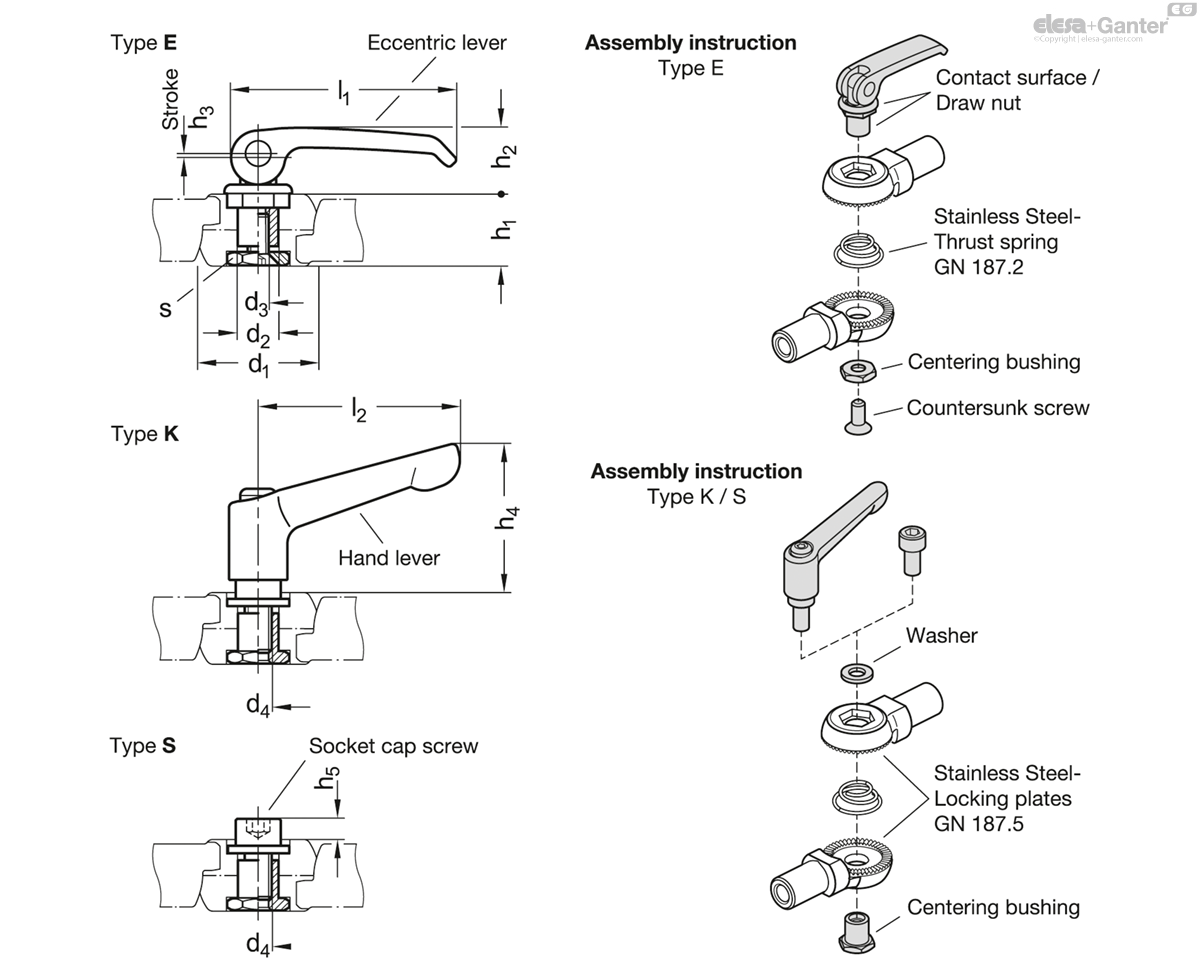

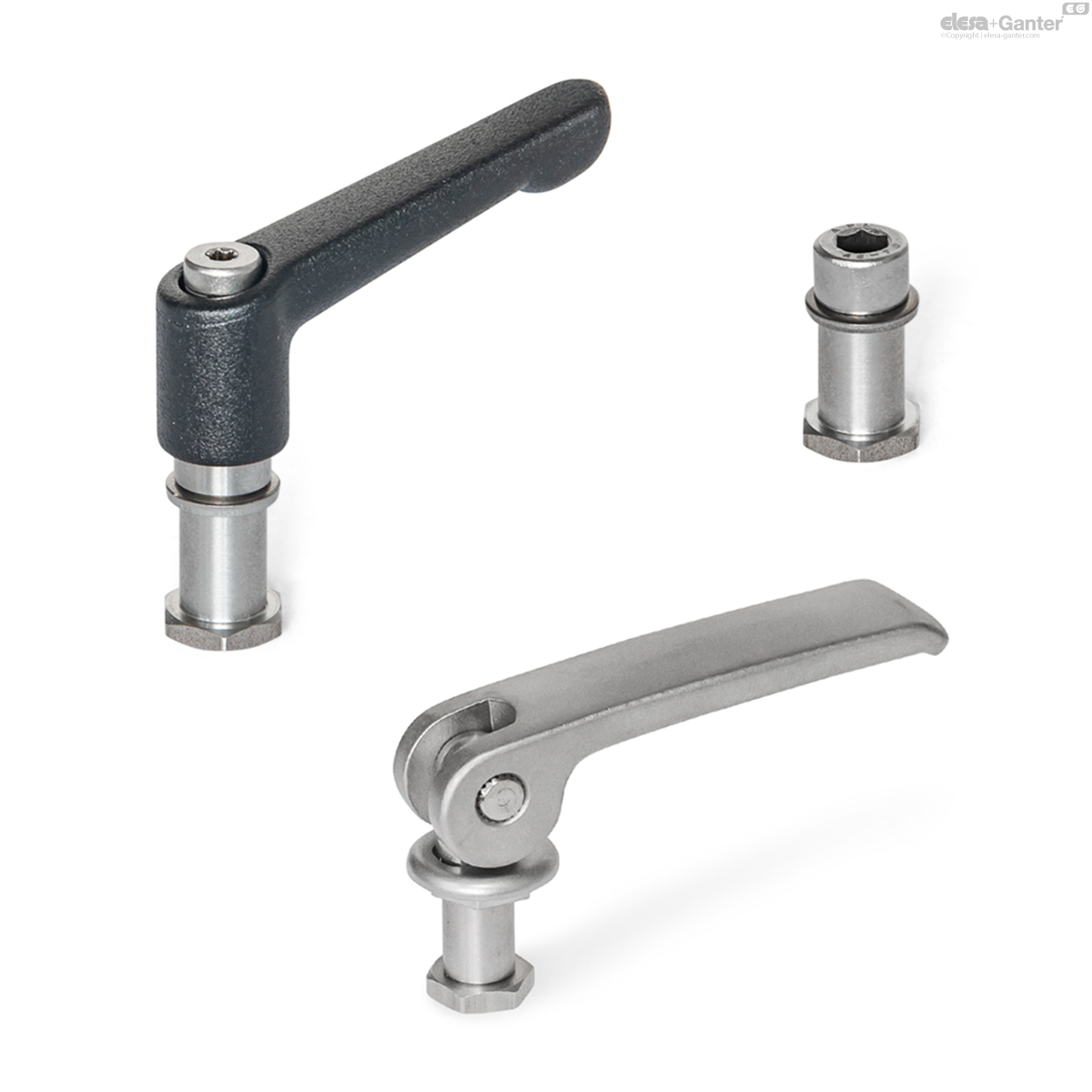

Types
- Type E: with clamping levers with eccentric lever
- Type K: with hand lever
- Type S: with socket cap screw DIN 912
Type E
Eccentric lever, Stainless Steel AISI CF-8
Contact surface, Stainless Steel AISI 431
Type K
Hand lever
Zinc die casting, plastic coated
black, RAL 9005, textured finish
Type S
Socket cap screw DIN 912
Stainless Steel A2
Countersunk screw DIN 7991 /
Washer Stainless Steel A2
Other parts
Stainless Steel AISI 303
Locking joint sets GN 187.6 can be used to combine Stainless Steel-Locking heads GN 187.5 to form locking joints. Thanks to the hexagonal shoulder, which creates a form-locking connection that prevents the part from also turning, the centering bushing allows fast and easy mounting. In the unlocked state, the bushing or draw nut forms the axis that positions the locking heads center to center.
The use of Stainless Steel-Thrust springs GN 187.2 allows the locking heads to be cleanly separated from each other.
The types E and K are used in applications requiring frequent and tool-free adjustment of the locking joints.
