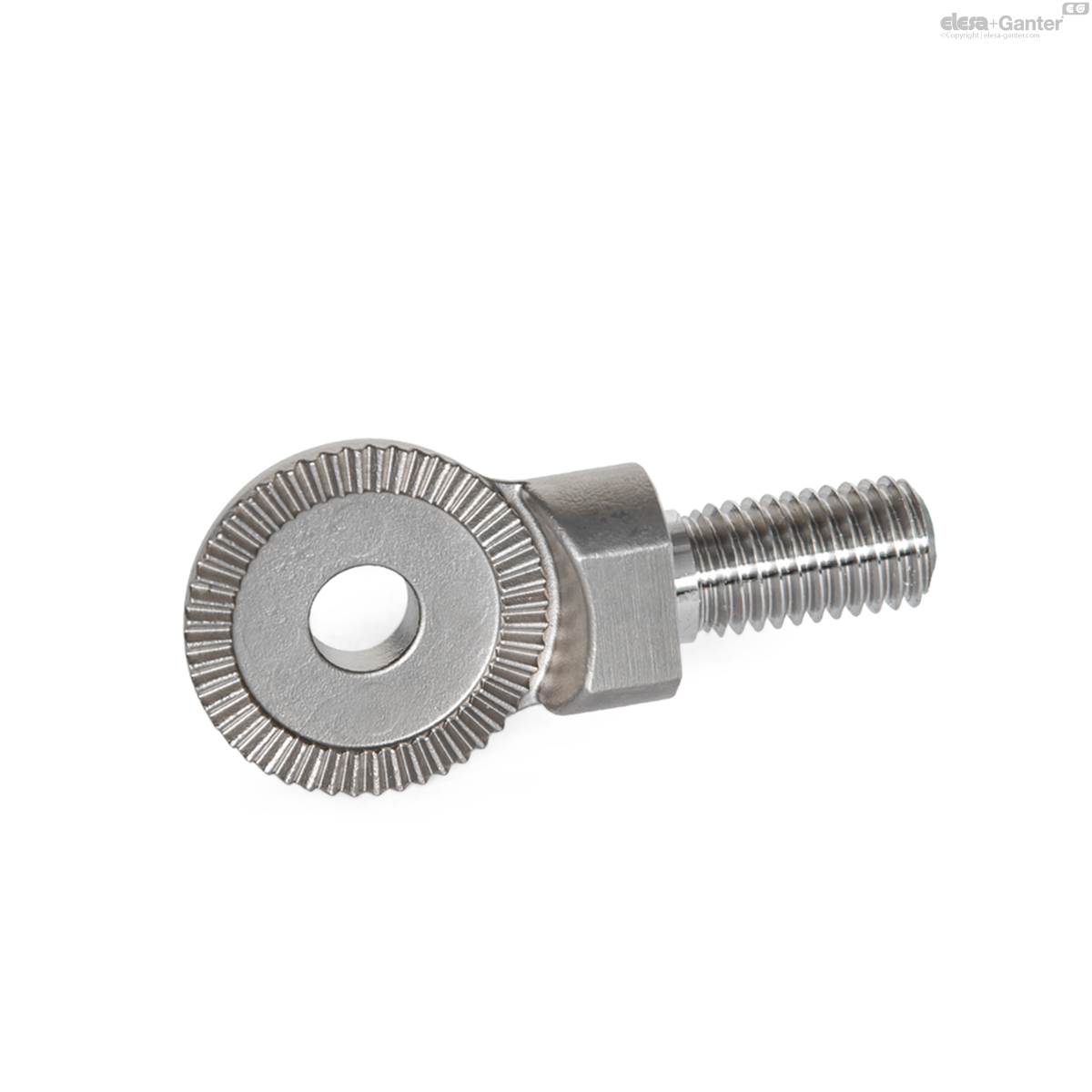

187.5-27-48-A-NI
GN 187.5 RVS vergrendelingsplaten
Lt: 1-2 weken Alle maten en varianten van GN 187.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 187.5-27-48-A-NI
- d1
- 27
- z
- 48
- d2
- 9
- d3
- 18
- d4
- 13
- h1
- 8
- h2
- 16
- h3
- 3
- l1
- 21
- l2
- 20
- s1
- 14
- s2
- 12
- w min.
- 0.8
- 69

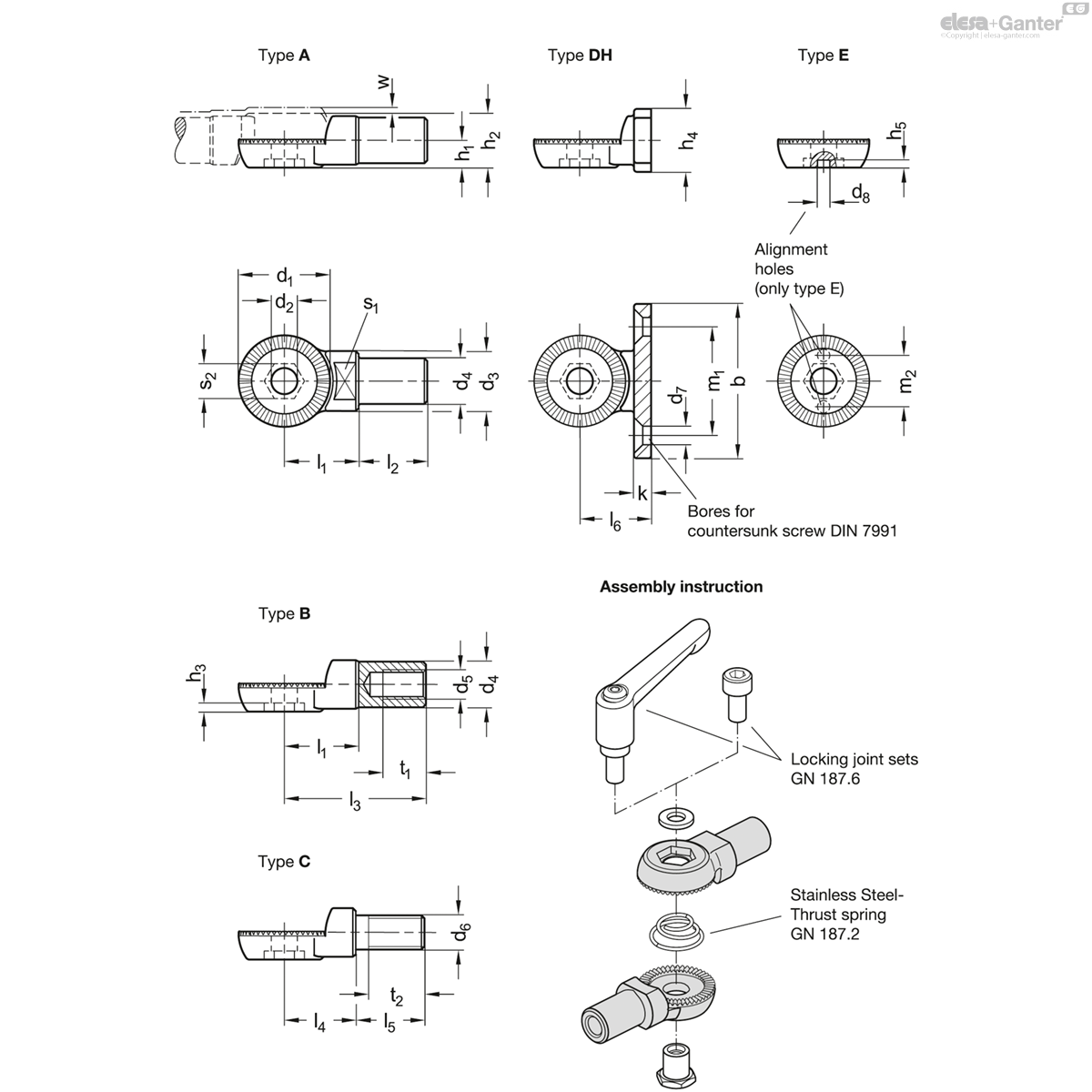

Types
- Type A: Stud, unthreaded (for welding on)
- Type B: Stud, with female thread
- Type C: Stud, with male thread
- Type DH: Fastening flange, horizontal
- Type E: Plate (for welding on)
Stainless Steel precision casting NI
AISI CF-8
matte shot-blasted
Stainless Steel-Locking plates GN 187.5 can be installed in combination with locking joint sets GN 187.6 to create locking joints. This allows gear lever handles and retaining tubes or trays and mounts to be adjusted relative to each other at defined angles with a form-locking connection. The angle orientation of the teeth is adapted to the connecting elements, permitting an axis-parallel or right-angled arrangement.
Held together and centered by locking joint sets, the various types can be combined together arbitrarily with identical the nominal sizes d1. Stainless Steel-Thrust springs GN 187.2 GN 187.4 can be placed between the locking heads during mounting, allowing a clean separation upon removal. Additional design possibilities arise from the compatibility of the locking heads with the locking plates GN 187.2 GN 187.4 .
When welding on, type E be easily positioned on the opposing part and fastened by means of the mounting holes d8 (which are aligned with the teeth) using dowel pins or positioning pins.
