LSX.A-30-10-AS-M10x70 LSX.A-AS Met antislipschijf

LSX.A-30-10-AS-M10x70

LSX.A-AS Met antislipschijf

Voetplaat van technopolymeer , stalen draadstift
  • Icons/__logo__PA__.png
  • Icons/__logo__g7030__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__NBR__.png

Lt: 1-2 weken Alle maten en varianten van LSX.A

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
531555
D
30
d
M10
L
89
L1
90
l
70
l1
19
h
12
s
12
α
19°
Articulation
Ø
10
Max. limit static load*
[N]
4500
50

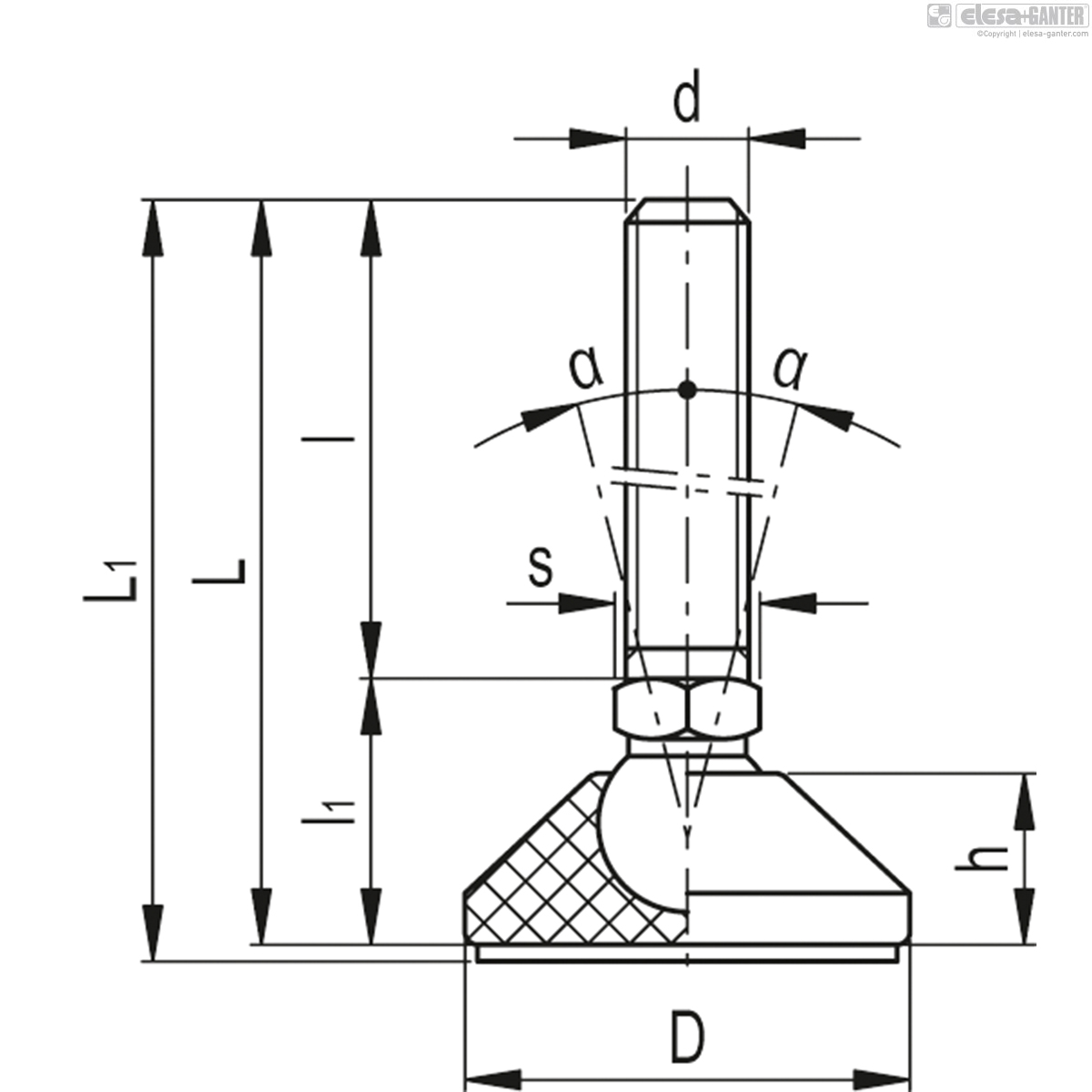

LSX.A-30-10-AS-M10x70 drawing
* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level of the specifi

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded zinc-plated steel with adjusting hexagon.

Standard executions

  • LSX.A: without no-slip disk.
  • LSX.A-AS: with SBR rubber no-slip disk, assembled to the base.

Features

The static load values in the table below refer to the resistance to a load applied on the axis of the levelling element.

Under common working conditions, any lateral or angular stress that may affect the no-slip disk resistance must also be taken into consideration.

Under particularly severe working conditions or on adherent surfaces the LSX.A-AS execution with SBR rubber no-slip disk may not be optimal. In these cases see also LS.A-AS.
