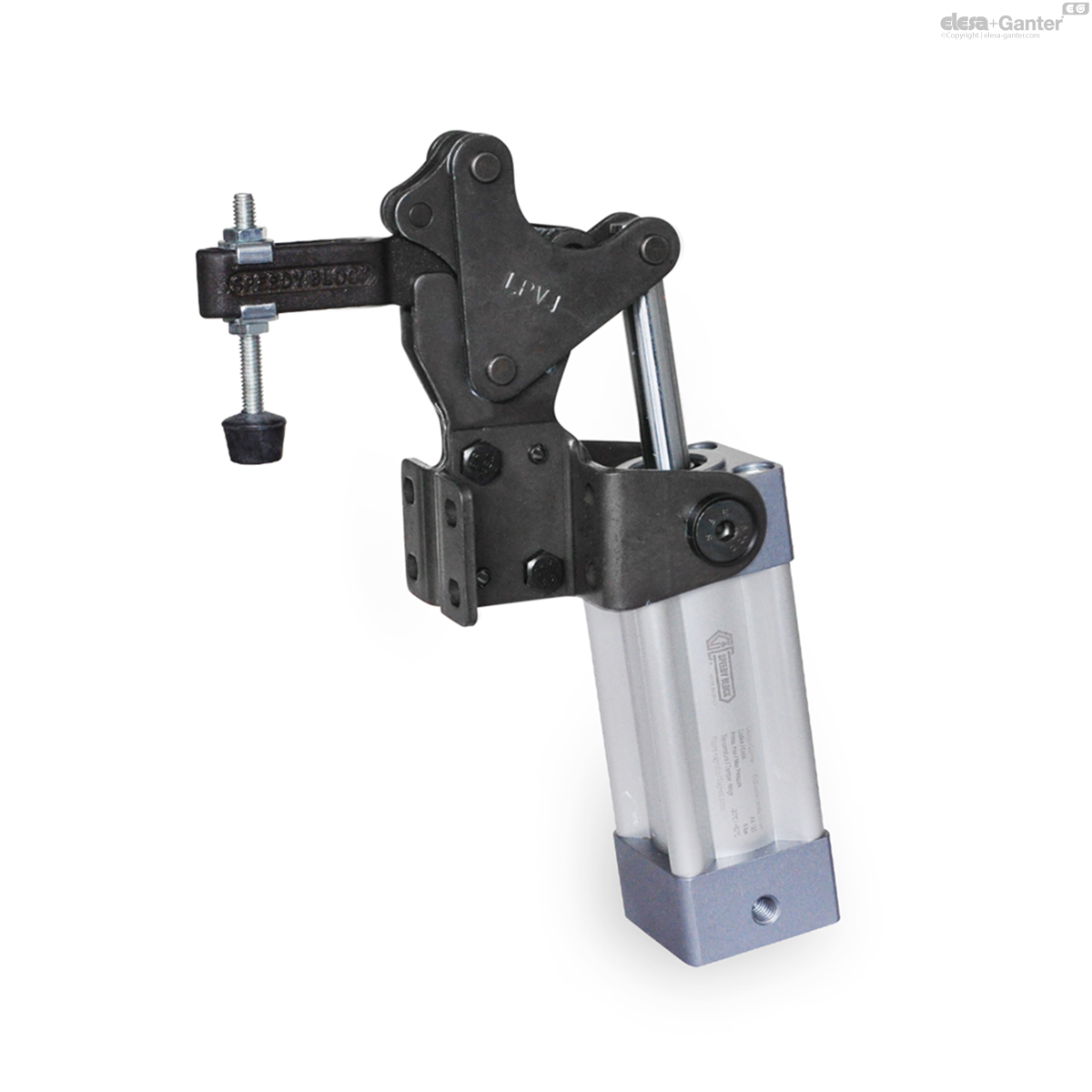

962-220-APV-M GN 962 Snelspanners

962-220-APV-M

GN 962 Snelspanners

pneumatisch, heavy duty „Longlife“
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 962

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 962-220-APV-M
Size
220
FH in N
2200
FS in N
870
a ≈
35
b1 ≈
62
b2
48
b3
36
b4
6.3
d1
M 6
d2
6.5
d3
G 1/8
Inside Ø
connection tube
4
e ≈
38.3
h1 ≈
221
h2
77
h3
16.6
h4 ≈
27
h5
60.3
l1 ≈
161
l2 ≈
51
l4
65
m1
30
m2
34
m3
20
r
96
s1
3.5
w
27
974
962-220-APV-M drawing

Types

  • Type APV: Clamping arm with slotted hole, with two flanged washers
  • Type CPV: Clamping arm with slotted hole, with two flanged washers, GN 708.1 spindle assembly
  • Type EPV: Clamping arm with bushing

Coding

Coding M: Magnetic piston

Base

Steel, phosphate-treated

Bearing pins / bushings

Steel

hardened and ground

Double-action air cylinder

with adjustable end position damping

max. pressure 6 bar

All moving parts

lubricated with special grease

  • Steel, zinc plated
  • Rubber tip 85 Shore A

Toggle clamps „Longlife“ GN 962 are equipped with a reinforced body and hardened and ground bearing pins / bushings. This makes them suitable for applications in which substantial forces arise and a long service life is required.

To ensure an extended life of the mechanical parts as well as the pneumatic cylinder, the operating pressure should not exceed 6 bar. In addition, a compressed-air control unit should be mounted in the air intake line.

Toggle clamps GN 962 are equipped with a magnetic piston as standard. This makes end position detection possible in connection with sensors GN 3380.
