8675-M12X1,5-035-A4
ISO 8675-A4 Roestvrij staal, AISI 316 (A4)
Lt: 1-2 weken Alle maten en varianten van ISO 8675
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens

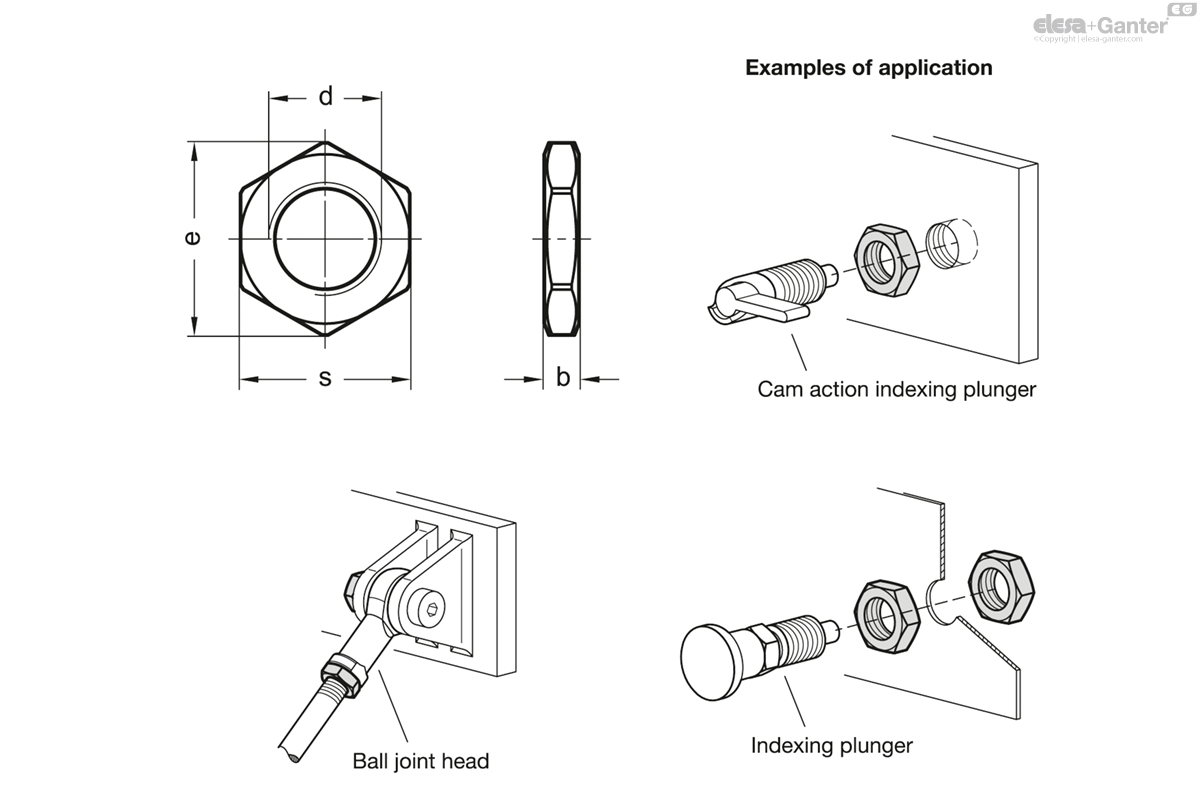

- Code
- ISO 8675-M12x1,5-035-A4
- d
- M 12 x 1.5
- b
- 6
- e
- 20.1
- s
- 18
- 8
Version in Steel
- Tensile strength class 04
- blackened BT
- zinc plated, blue passivated ZB
Version in Stainless Steel
- Tensile strength class 035
- AISI 304 (A2) NI
- AISI 316 (A4) A4
Low form hexagon nuts with a fine thread ISO 8675 are used in bolted connections, e.g. as lock nuts to lock components and prevent accidental loosening, turning or shifting.
In addition, the nuts are also used together with indexing plungers, cam action indexing plungers, guide bushings or joint heads.
The flat design makes the hexagon nuts ideal for shorter threads. When mounting indexing plungers, they reduce the adjustment range only slightly, which may be of significance especially when using two lock nuts.
- other threads
