875.4-AL-20-48-HE
GN 875.4 Adapterflenzen
Lt: 1-2 weken Alle maten en varianten van GN 875.4
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 875.4-AL-20-48-HE
- For swing clamps
Size - 50 / 63
- d1
- 20
- m
- 48
- b
- 32
- d2
- M 8
- d3
- 32
- d3 ≈
- 32
- d4
- 10.5
- h1
- 30
- d5
- 65
- h2
- 10
- h3
- 18
- 4
Aluminum AL
Hard anodized HE
Wear-resistant surface
Socket cap screw DIN 912
Steel, zinc plated, blue passivated
Washer ISO 7092
Steel, zinc plated, blue passivated

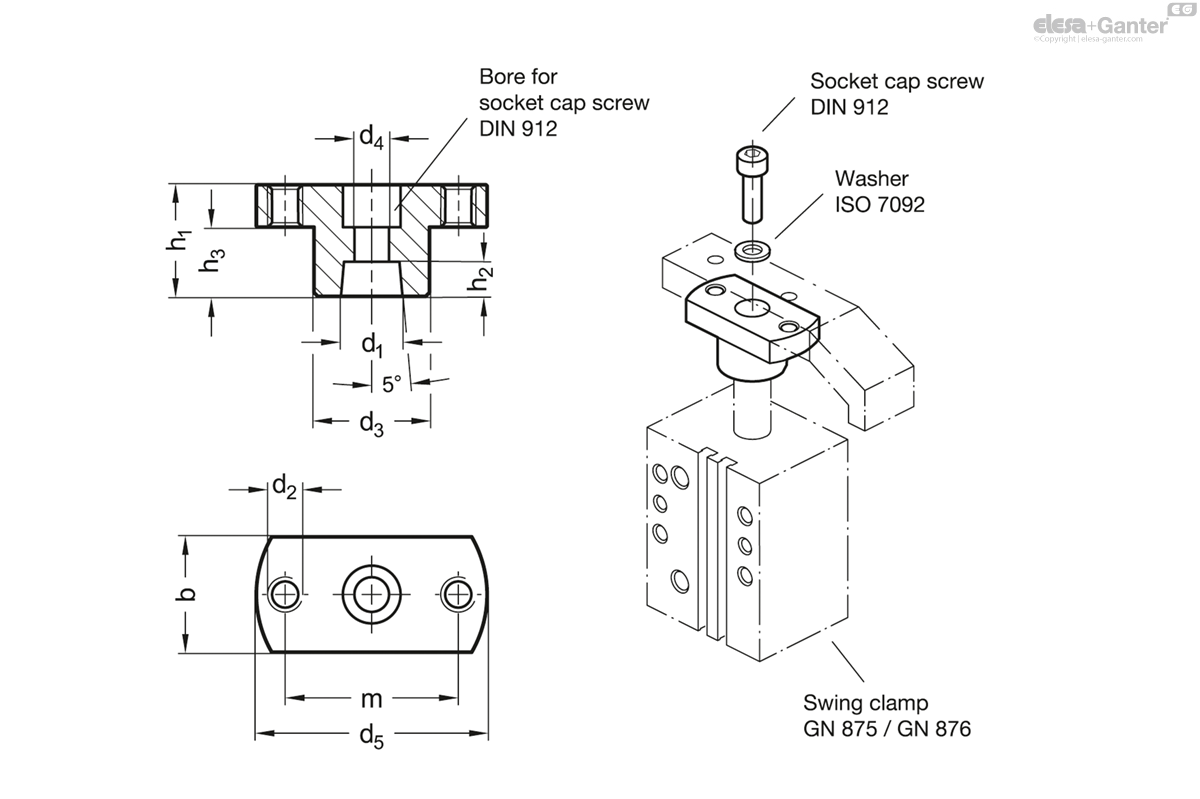

Adapter flanges GN 875.4 are designed as accessories to swing clamps GN 875/GN 876 and serve as adapter for mounting custom clamping arms.
The angle orientation of the clamping arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.
Included are a socket cap screw DIN 912 and a washer ISO 7092 for fastening to the swing clamp.
