197-D30-100-100-A-BL
GN 197 Monitorbeugels
Lt: 1-2 weken Alle maten en varianten van GN 197
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

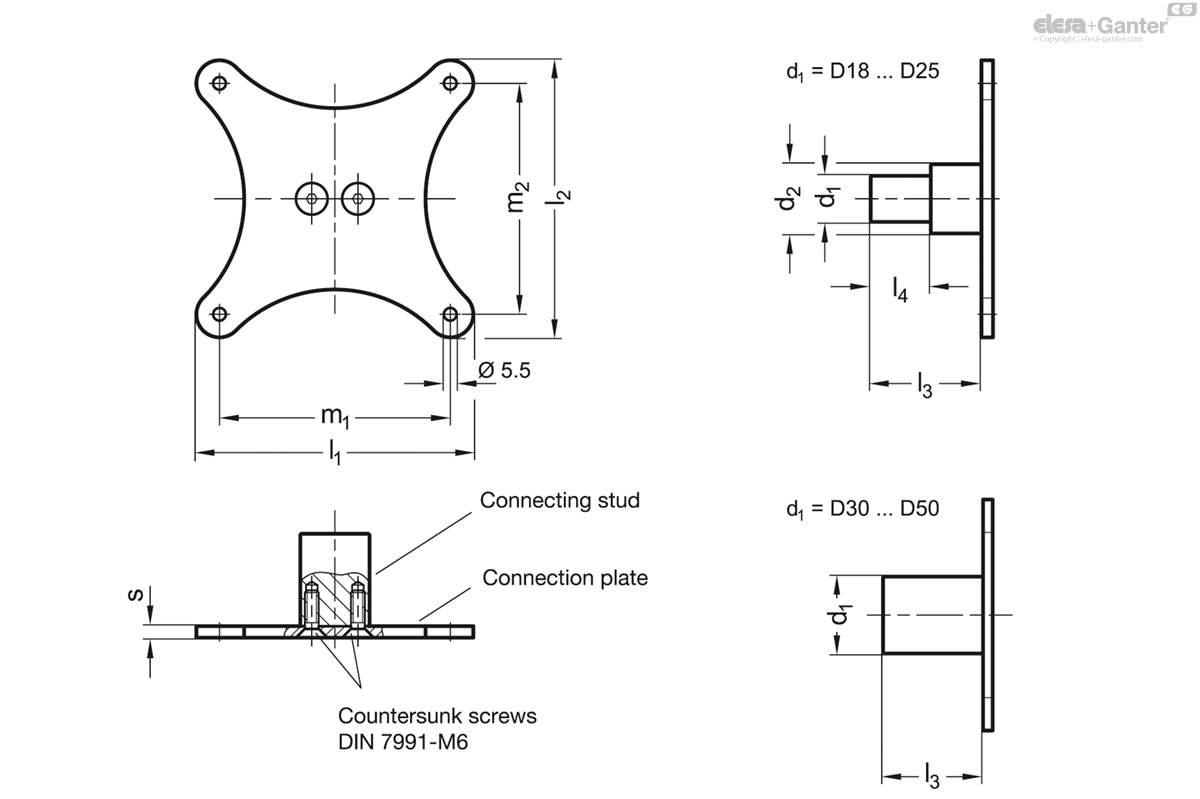

Technische gegevens
- Code
- GN 197-D30-100-100-A-BL
- d1
- D 30
- m1
- 100
- m2
- 100
- l1
- 120
- l2
- 120
- l3
- 40
- s
- 5
- 222
Type
Type A: with connecting stud
Aluminum
- Connection plate blank, ground BL
- Connection stud blank, turned
Countersunk screws DIN 7991
Stainless Steel AISI 304
Monitor mounts GN 197 have a hole pattern according to the VESA standard.
The connecting studs can be combined with diverse components within the tube clamp connector program in order to realize a wide range of fastening variants, degrees of freedom and adjusting options.
- with additional VESA hole patterns
Depending on the requirements, monitor mounts GN 197 can be expanded with tube clamp connectors and construction tubes GN 990 to create complete solutions for wall or floor mounting. It is also easy to affix other accessories nearby, such as keyboards or hand scanners.
