GN 704 Quick release stelringen
Lt: 1-2 weken Alle maten en varianten van GN 704
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 704-120-B70
- d1
- 120
- d2
- B 70
- b
- 19
- s
- 4.5
- Tightening torque
of the screws
in Nm ≈ - 4.5
- Axial load in N ≈ min.
- 890
- Axial load in N ≈ max.
- 1379
- 355
Ring
Aluminum
Black anodized
Lever
Aluminum
Yellow anodized

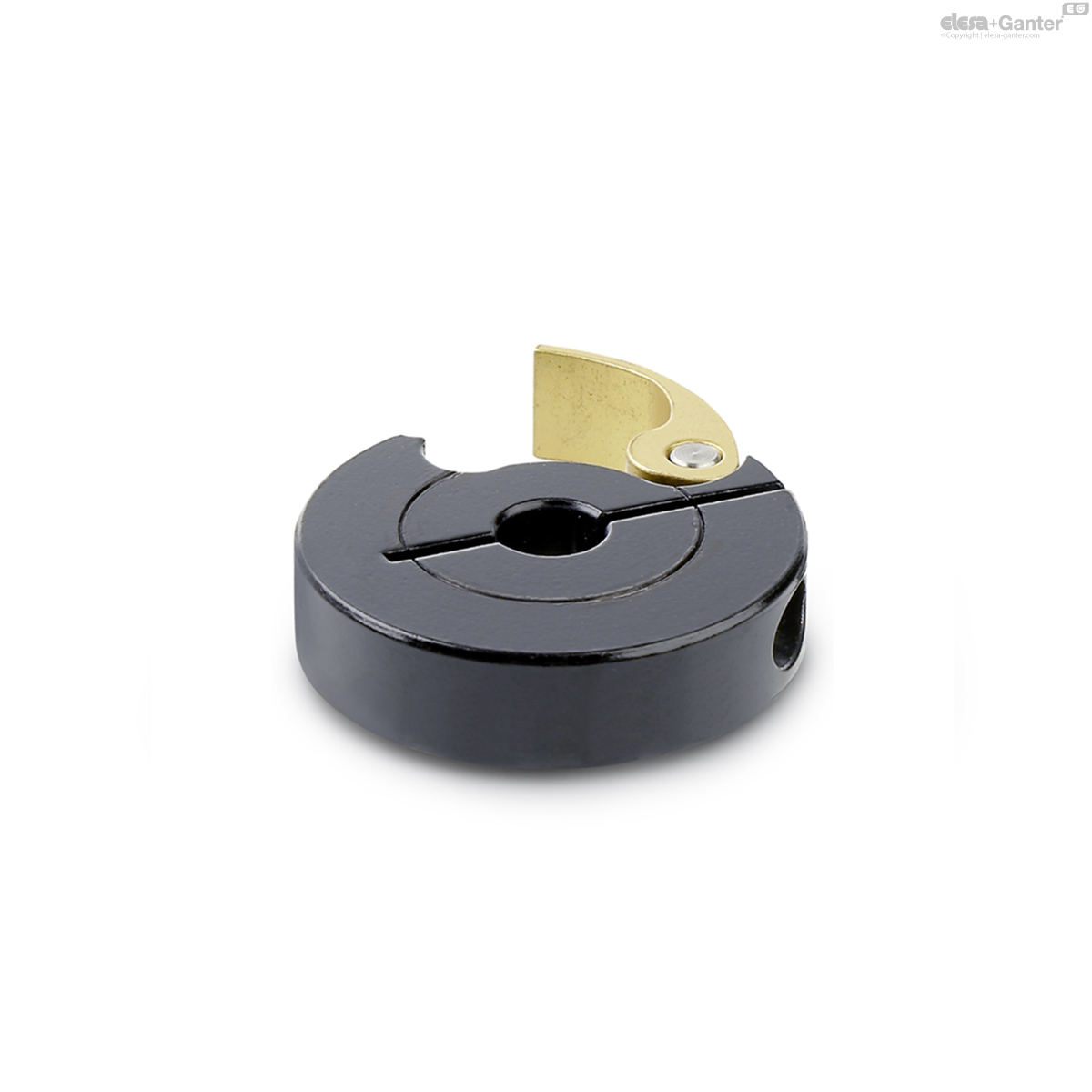

Quick release shaft collars GN 704 are clamped by reducing the slot height using an eccentric lever.
That allows the collars to be adjusted easily and quickly without tools.
The aluminum design delivers low inertia values.
The specified tightening torque of the screw is a recommended value with which the collar clamped to a shaft (with closed eccentric lever) is capable of reaching the specified axial load capacity. The details on axial load capacity are non-binding guidance values and do not constitute a warranty of characteristics.
Keeping the friction surface of the eccentric lever slightly greased will help to prolong the useful service life.
