GN 5862 Lasthaken
Lt: 1-2 weken Alle maten en varianten van GN 5862
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

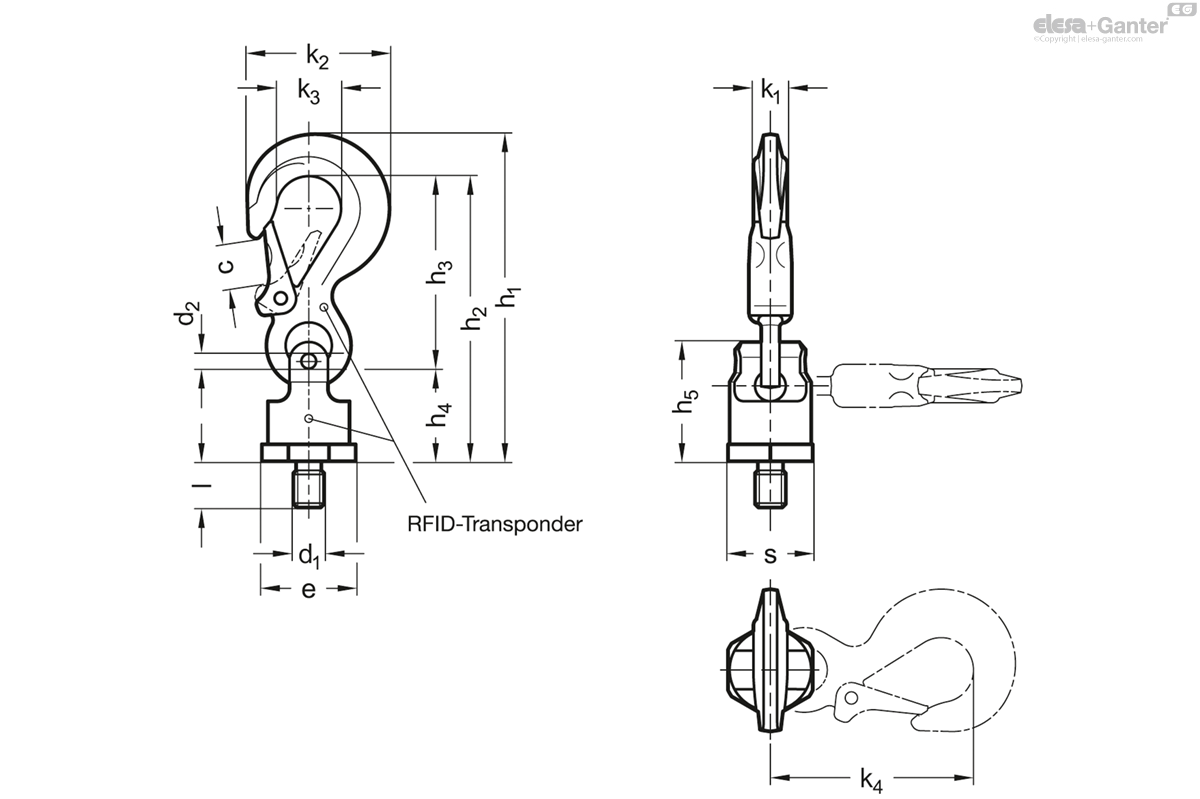

Technische gegevens
- Code
- GN 5862-M20-30
- d1
- M 20
- d2
- 9.6
- l
- 30
- e
- 61
- h1
- 215
- h2
- 187
- h3
- 126
- h4
- 61
- h5
- 78
- k1
- 20
- k2
- 95
- k3
- 42
- k4
- 136
- c
- 30
- s
- 55
- Tightening torque
in Nm - 70
- Nominal load
in t - 2.50
- 1780
Hook
Steel, German Material No. 1.6540
- high-tenisle tempered
- 100% electro magnetic tensile tested to EN 1677
- plastic coated, pink
Safety catch
Steel, German Material No. 1.6541
- forged, high-tensile tempered
- 100 % electro magnetic tensile tested
Bearing case
Steel 1.6541
- forged, high-tensile tempered
- 100 % electro magnetic tensile tested
- zinc plated, blue passivated
Threaded stud
Steel, high-tensile tempered
Finish: Delta Tone

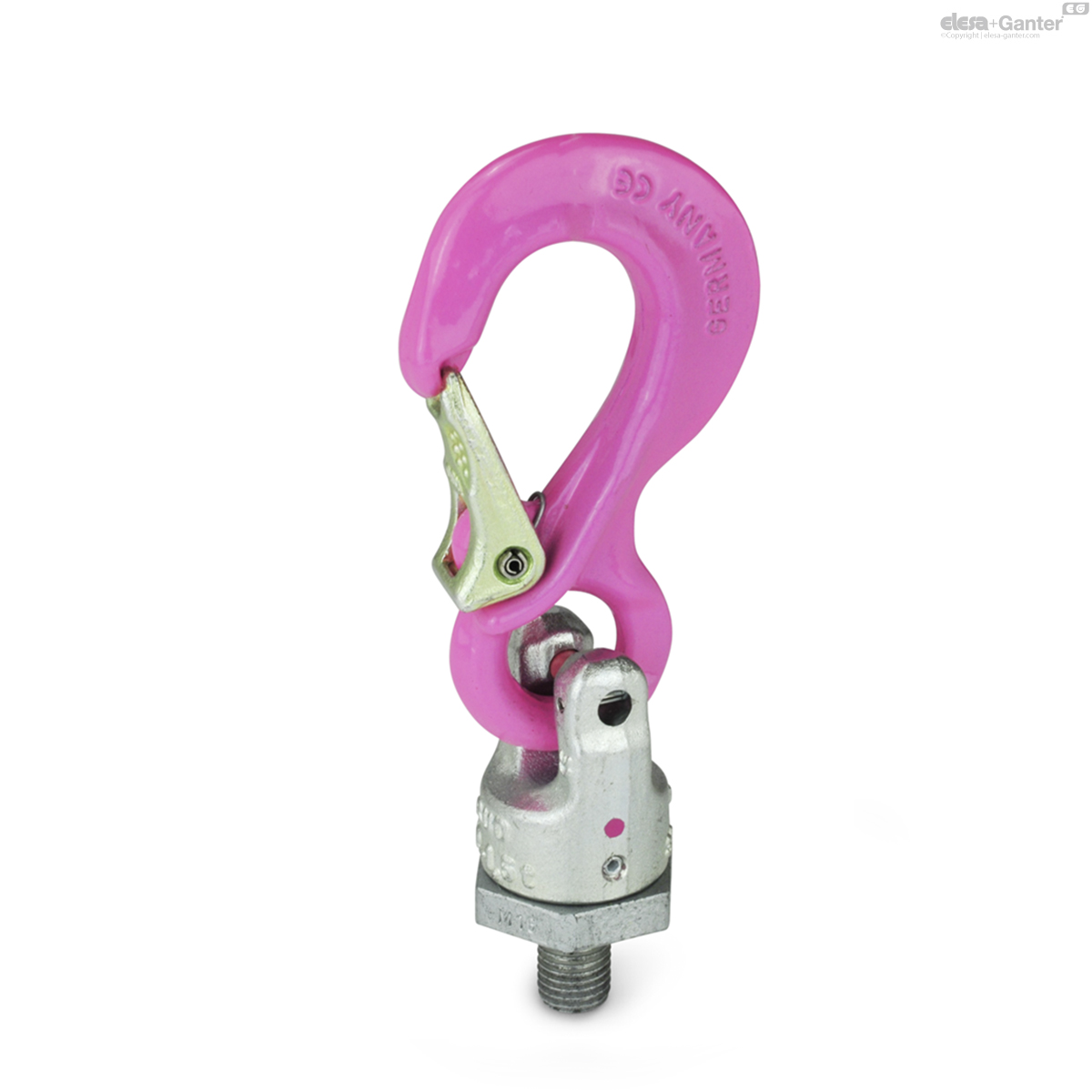

Load hooks GN 5862 rotate running in ball bearings. The freely rotating hook allows the bolts to hold loads in any allowed tensile direction.
The rated load-bearing capacity is shown clearly on the swivel eye bolt. It is valid for the most unfavourable case in term of the types of load listed opposite. Load rings GN 5862 comply with Mechanical Engineering Directive 2006 / 42 / EG and are BG tested.
The integrated RFID transponder clearly marks and identifies the sling and lifting gear, e.g. during the prescribed regular inspection.
| Method of mounting |  |  |  |  |  |  |  |  | ||
| Number | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 and 4 | 3 and 4 | 3 and 4 |
| Angles of inclination | 0° | 90° | 0° | 90° | 0° to 45 ° | 45° to 60° | asymm. | 0° to 45° | 45° to 60° | asymm. |
| Factor | 1 | 1 | 2 | 2 | 1.4 | 1 | 1 | 2.1 | 1.5 | 1 |
| M 12 | 0.63 t | 0.63 t | 1.26 t | 1.26 t | 0.88 t | 0.63 t | 0.63 t | 1.32 t | 0.95 t | 0.63 t |
| M 16 | 1.50 t | 1.50 t | 3.00 t | 3.00 t | 2.10 t | 1.50 t | 1.50 t | 3.15 t | 2.25 t | 1.50 t |
| M 20 | 2.50 t | 2.50 t | 5.00 t | 5.00 t | 3.50 t | 2.50 t | 2.50 t | 5.25 t | 3.75 t | 2.50 t |
| M 24 | 4.00 t | 4.00 t | 8.00 t | 8.00 t | 5.60 t | 4.00 t | 4.00 t | 8.40 t | 6.00 t | 4.00 t |
| M 30 | 6.70 t | 5.00 t | 13.40 t | 10.00 t | 7.00 t | 5.00 t | 5.00 t | 10.50 t | 7.50 t | 5.00 t |
| M 36 | 10.00 t | 8.00 t | 20.00 t | 16.00 t | 11.20 t | 8.00 t | 8.00 t | 16.80 t | 12.00 t | 8.00 t |
The above load capacity table shows the maximum loads in metric tonnes as factor of the load ring type and at an operating temperature range of –40 °C to +200 °C, with a safety coefficient of 4 taken into account for all values.
The load hooks GN 5862 may be used only if it is bolted with the minimum screw-in depth which depends on the material and if the bolt contact surface is plane and fixed at a right angle to the tap hole.
If permanently mounted in place, the load hooks must rotate freely by 360° and must not rest on edges or other fixture, e.g. crane hooks. The load hooks are not suitable for permanent rotary movement under load exposure.
Operating instructions with more details and specifications are included with every delivery (see www.elesa-ganter.com)
- other screw lengths l
