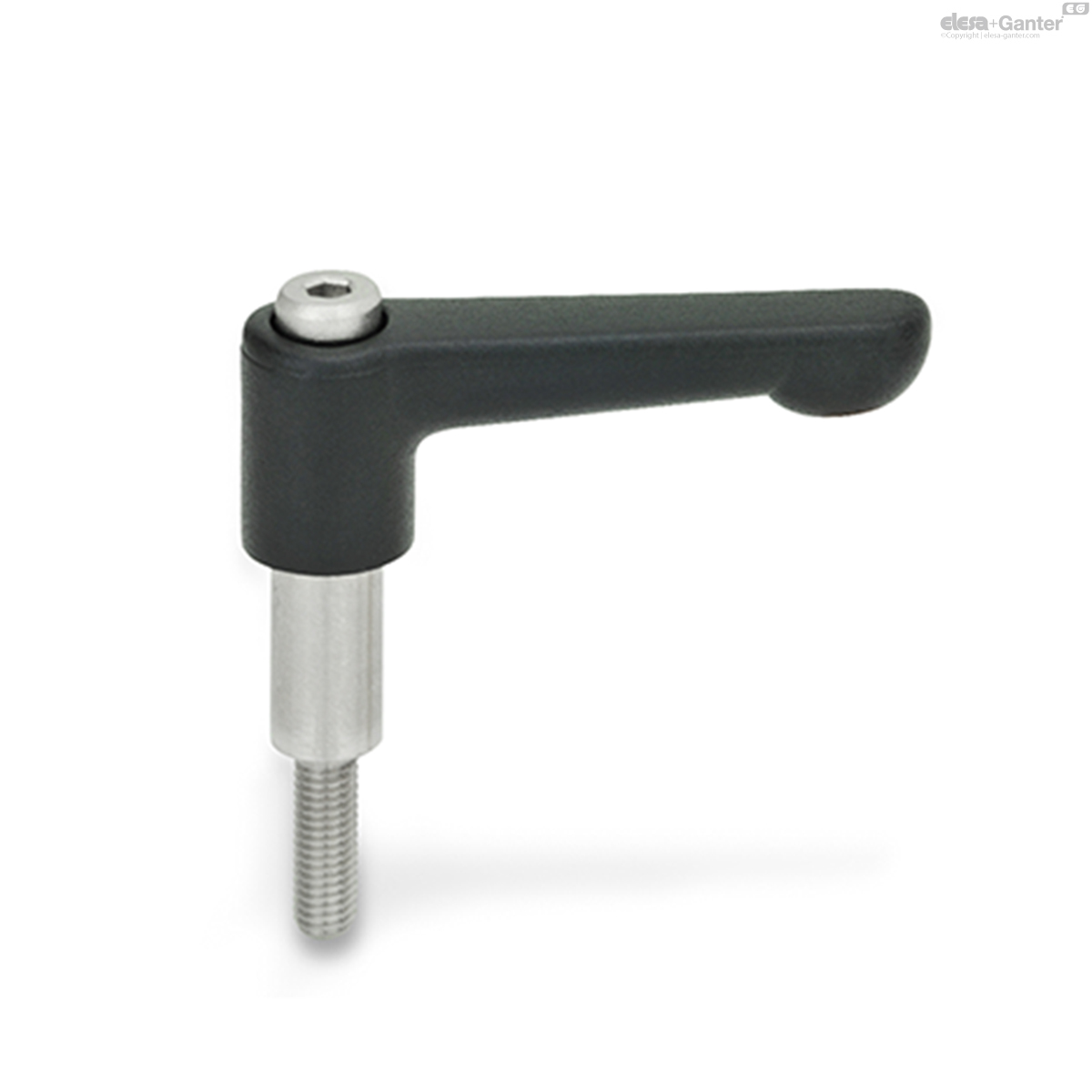

311-30-M4-12-SW
GN 311 Verstelbare handgrepen
Lt: 1-2 weken Alle maten en varianten van GN 311
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

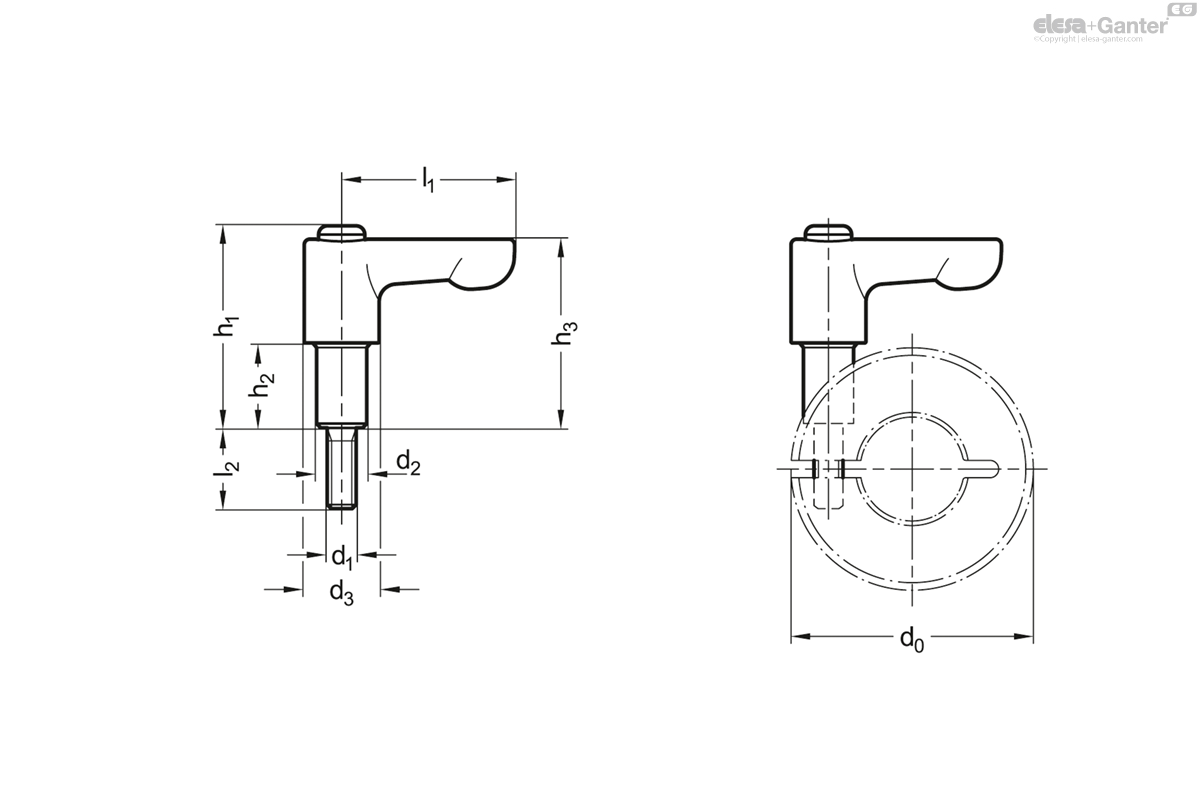

Technische gegevens
- Code
- GN 311-30-M4-12-SW
- d0 Shaft collar
Ø d1 - 30 / 32
- l1
- 30
- d1
- M 4
- h2
- 12
- d2
- 7.2
- d2 H10
Bore series - 30 / 32
- d3
- 13
- l2
- 12
- h1
- 32
- h3
- 30
- 29
Handle
Zinc die casting
Powder coated
Black, RAL 9005, textured finish SW
Insert
Stainless steel AISI 303
Retaining screw
Stainless steel AISI 304
For shaft collars of the standard families GN 706... and GN 707..., adjustable hand levers GN 311 replace the hex socket screw DIN 912. That allows the shaft collars to be adjusted easily and quickly without tools.
The table of dimensions of the shaft collars shows the corresponding hand lever for the respective shaft collar size d1.
Semi-split shaft collars GN 706.2 including hand lever are available under GN 706.4.
