970-ALM-30-30-60-B GN 970 gelijke zijden

970-ALM-30-30-60-B

GN 970 gelijke zijden

gelijke / ongelijke zijden
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 970

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 970-ALM-30-30-60-B
h1
30
b1
30
l1
60
b2
18
d
6.2
h2
18
l2
15
m
30
s
4
34
970-ALM-30-30-60-B drawing
970-ALM-30-30-60-B drawing

Version with equal sides

Types

  • Type A: without bores
  • Type B: with bores

Version with unequal sides

Types

  • Type A: without bores
  • Type C: with bores and slotted holes

Structural Steel STB

drawn, with sharp edges

blackened

Aluminium ALM

pressed

matt, ground

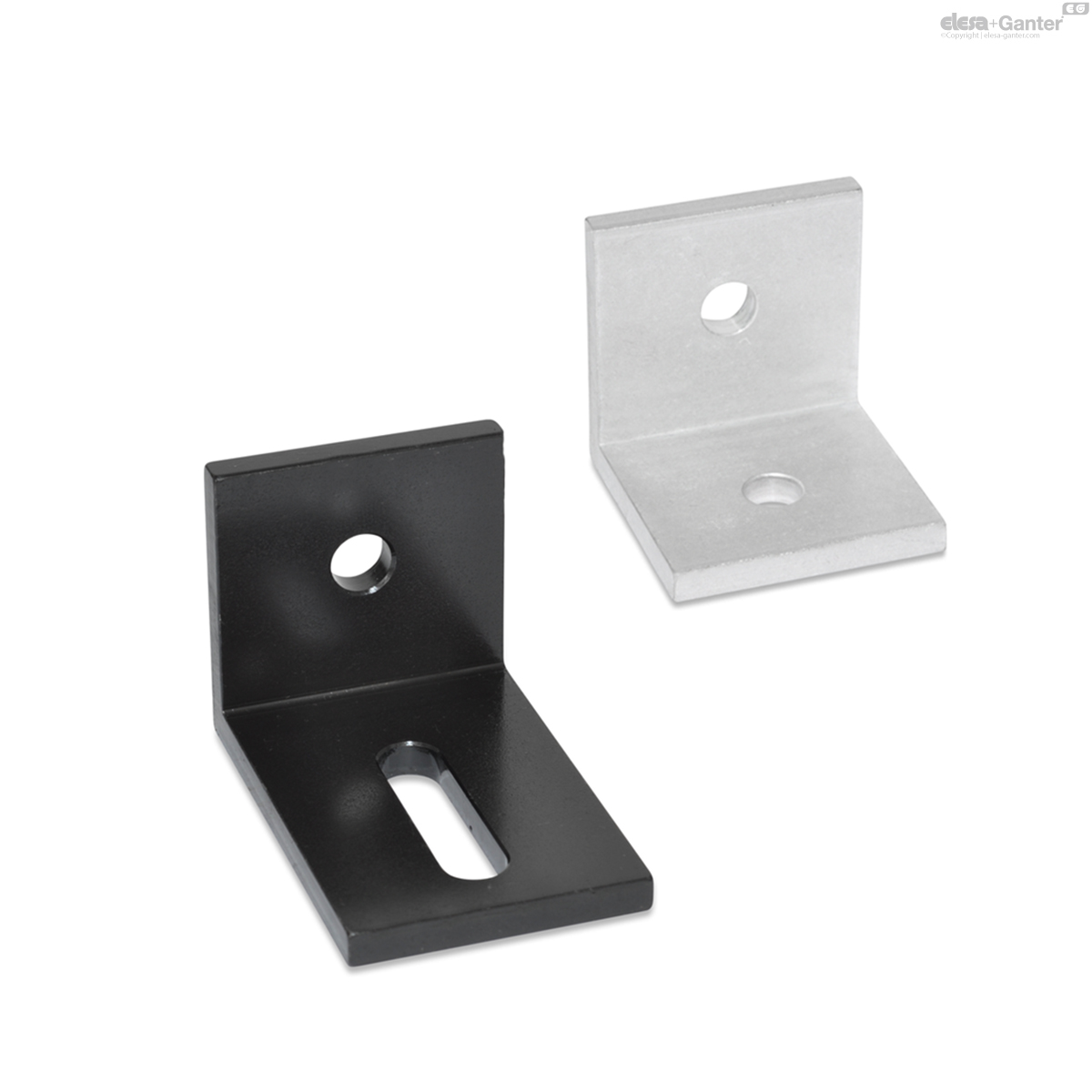

GN 970 installation brackets are used universally for right-angle connecting and fastening of, e.g. base plates or covers.

Type A allows for the use of drilling templates specific to the application as well as fastening by welding.

Type B installation brackets have 2 or 4 holes depending on the length l1.

Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
