M.1053/30-300-CLEAN
M.1053-CLEAN Offset Buisgrepen
Lt: 1-2 weken Alle maten en varianten van M.1053-CLEAN
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

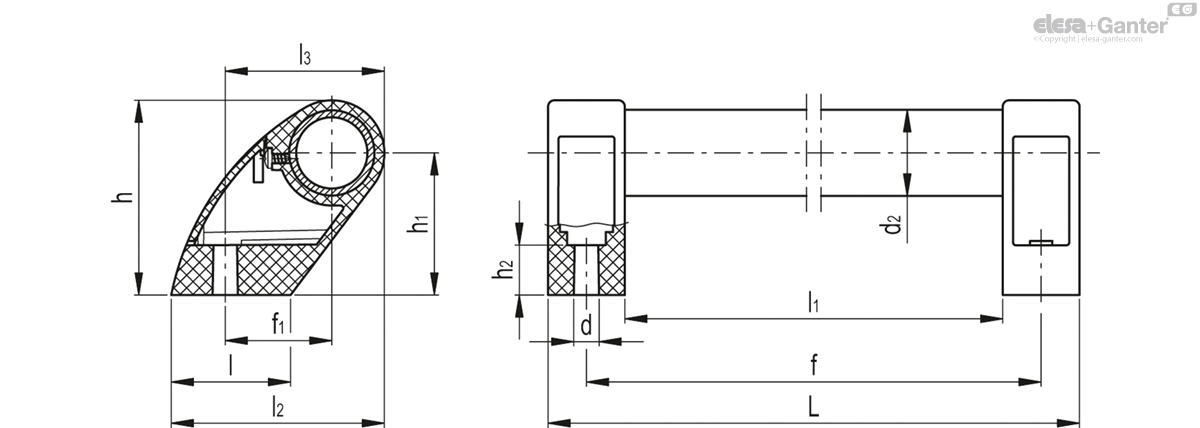

Technische gegevens
- Code
- 151461
- d2
- 30
- f±1
- 300
- f1
- 37.5
- L
- 327
- d
- 8.5
- h
- 68.5
- h1
- 50
- h2
- 17.5
- l
- 42
- l1
- 273
- l2
- 75
- l3
- 56
- F1*
[N] - 1850
- F1#
[N] - 3400
- F2*
[N] - 2500
- F2#
[N] - 4000
- 231
Handle shanks
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.
To prevent tube rotation, screw up to the stop the self-tapping screw ø3,9x6,5 arranged inside the handle shank.
Closing caps

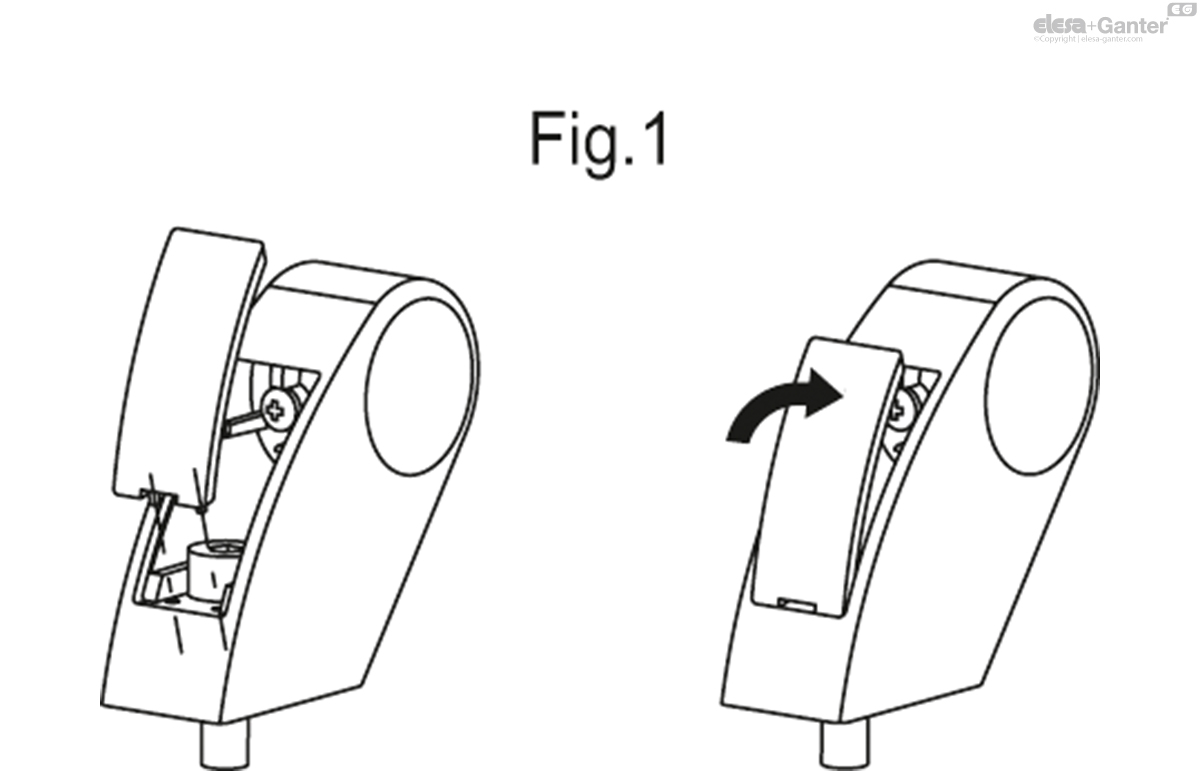

- ECS.T: Polyamide based (PA) technopolymer, white colour similar to RAL 9002, matte finish, press-fit assembly (Fig.1). Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table).
Mounting

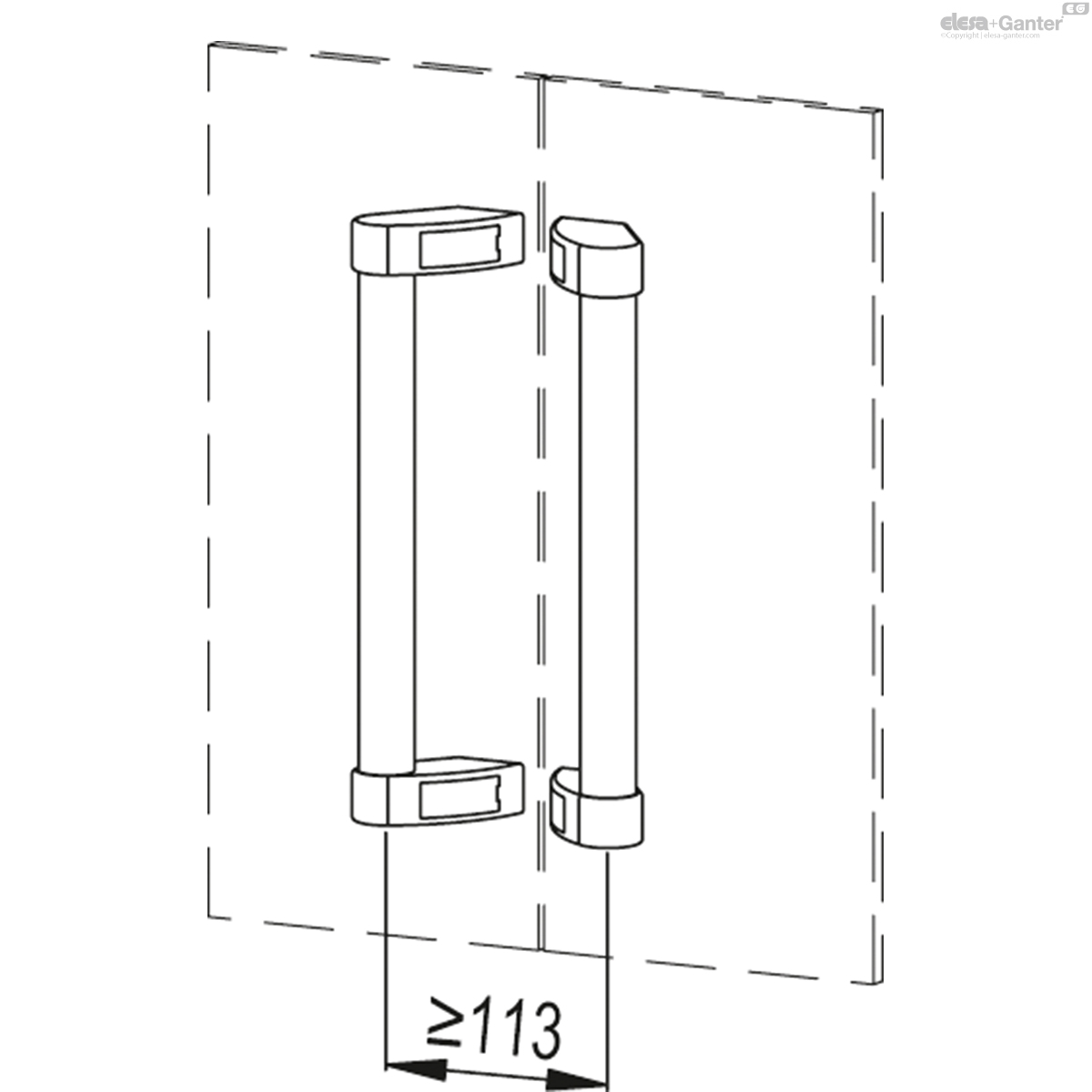

Pass-through hole for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts.
Standard execution
- Aluminium tube, coating in white colour similar to RAL 9002, handle shanks and closing caps in white colour similar to RAL 9002 (CLEAN).
Technical data

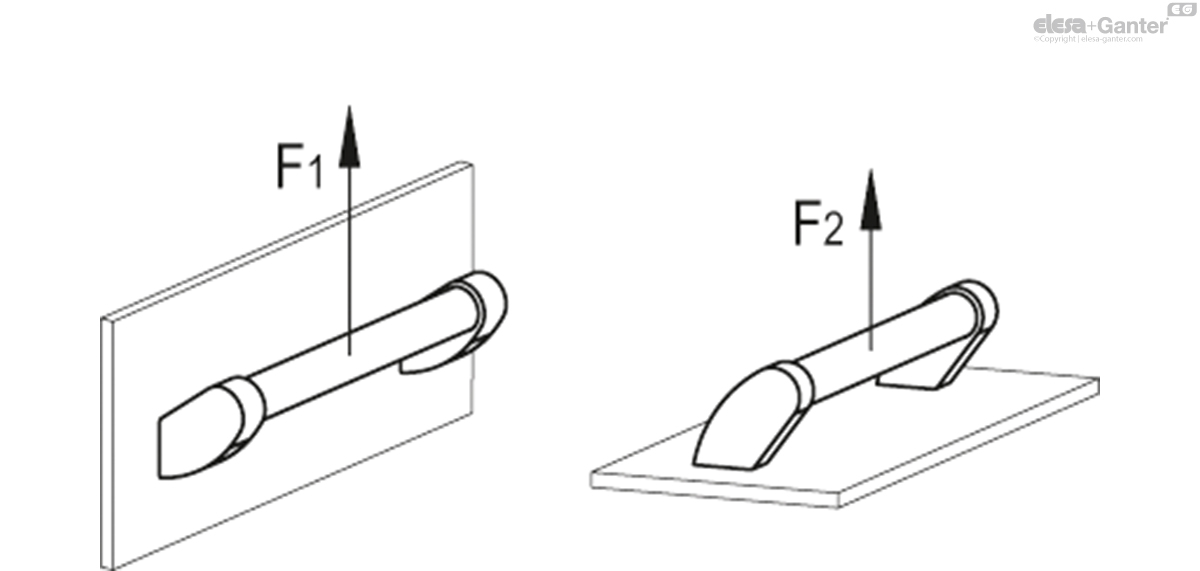

Tensile stress: F values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Special executions on request
- Different lengths.
Accessories on request
- ESC.T: polyamide based (PA) technopolymer closing caps, white similar to RAL 9002 (CLEAN), matte finish, press-fit assembly (see table). For sufficient quantities, it can be supplied in other colours.
